Model Number:DS3800HCVA1G

Manufacturer:General Electric

Module Category:Circuit Board

Series:Mark IV DS3800

Board Type:Digital to Analog Output

Connector Compatibility:Modular connector for attachment to a drive

Indicator LEDs:2 Amber indicator LEDs

Front Access:3 Connectors accessible from the front of the board

Trim Resistor Count:4 Trimmer resistors

DC Voltage Regulators:2 DC to DC voltage regulators

Physical Dimensions:L x W x H: Not specified

Weight:Not specified

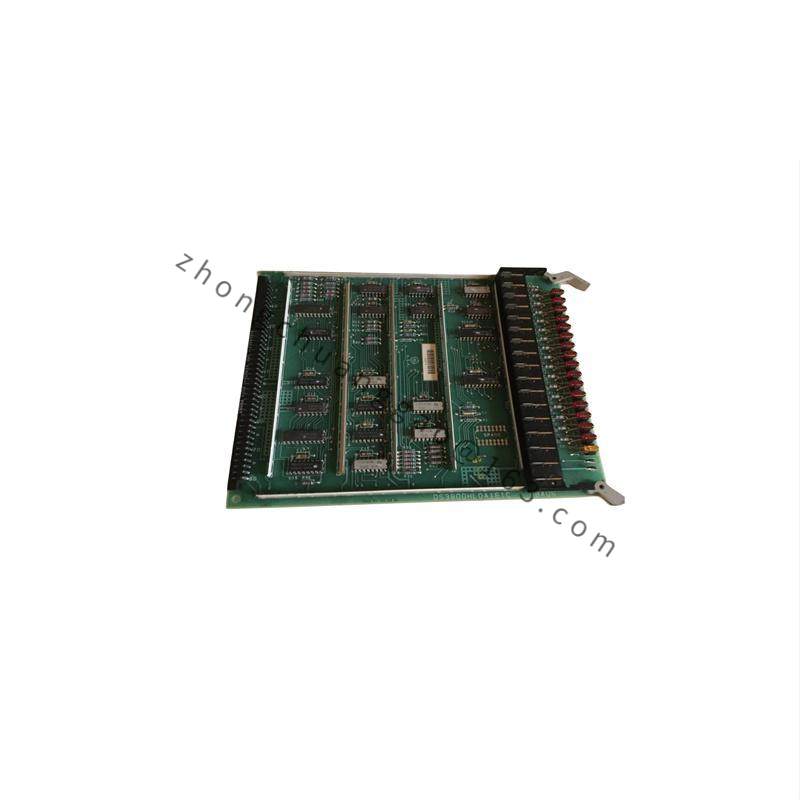

    The GE DS3800HCVA1G circuit board is meticulously designed to meet the stringent requirements of industrial automation environments, ensuring optimal performance and longevity in challenging conditions.

    Featuring a modular connector system for seamless integration with drive components, this board is engineered with retention levers to securely hold it in place, ensuring reliable operation without risk of dislodgement.

    Equipped with 14 jumpers and two Amber indicator LEDs, the DS3800HCVA1G provides users with visual feedback and enhanced functionality, making troubleshooting and maintenance more efficient.

    Accessible from the front of the board are three connectors, enabling easy connection to external devices and facilitating quick setup and deployment in various industrial applications.

    The inclusion of four trimmer resistors allows for fine-tuning of output signals, ensuring precise control over connected machinery. Additionally, the presence of two DC to DC voltage regulators ensures stable power supply and maintains operational efficiency.
