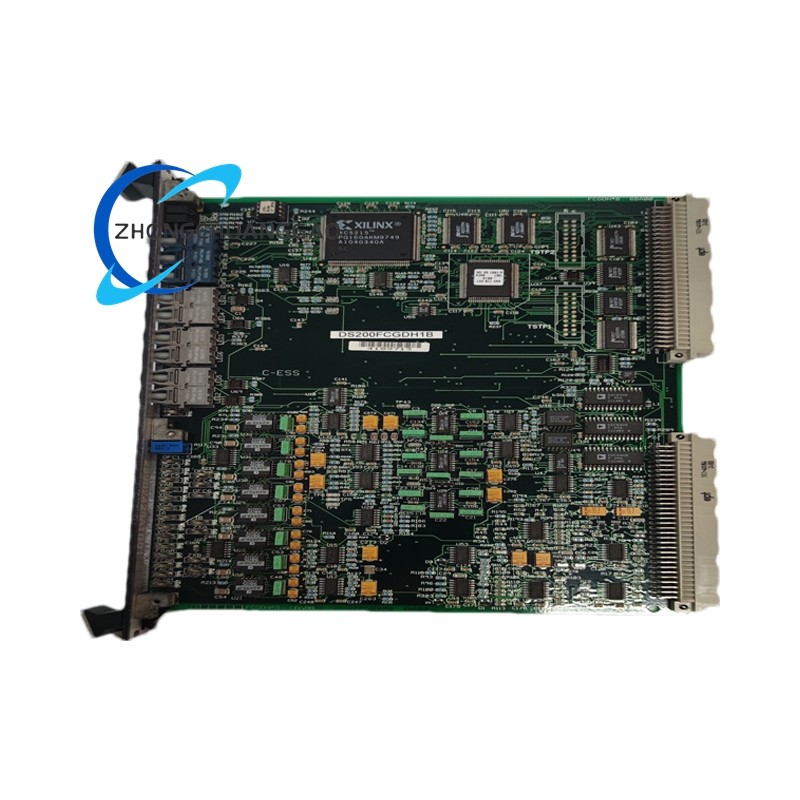

GE DS200FCGDH1B
Category: Field Control Gate Distribution Card for Drive Systems
Technical Specifications
- Manufacturer: General Electric
- Series: Mark V
- Function: Interface system for six-pulse phase-controlled non-reversible bridges
- Signal Processing: Receives and decrypts information from the Digital Signal Processing Card (DSPC)
- Feedback Signals: Handles frequency, voltage, and board status information
- Communication: Uses integrated VME backplane for signal transmission
- LED Indicators: Integrated IMOK LED for basic system status indication
- Environmental Conditions: Designed for industrial environments with appropriate temperature and humidity ratings
Detailed content
Functional Features
- Data Collection: Collects extensive data from the drive’s DSPC
- Signal Conversion: Converts received signals into unit gate control signals
- Multiplexing: Sends multiplexed cell status information to all system bridge branches
- Feedback Handling: Scales feedback signals before processing
- Optical Fiber Connections: Utilizes three FPGA boards connected via fiber optics for feedback signal transmission
- Installation: Requires adherence to manufacturer-provided installation parameters to ensure optimal performance
Application Scenarios
- Industrial Automation: Used in various motor control applications where precise speed and torque control are required
- Power Generation: Integral part of generator excitation control systems
- Oil and Gas: Found in pump and compressor drives for efficient energy management
- Mining: Used in conveyor systems and other machinery requiring robust drive controls
- Marine: Applied in propulsion systems and auxiliary equipment aboard ships
