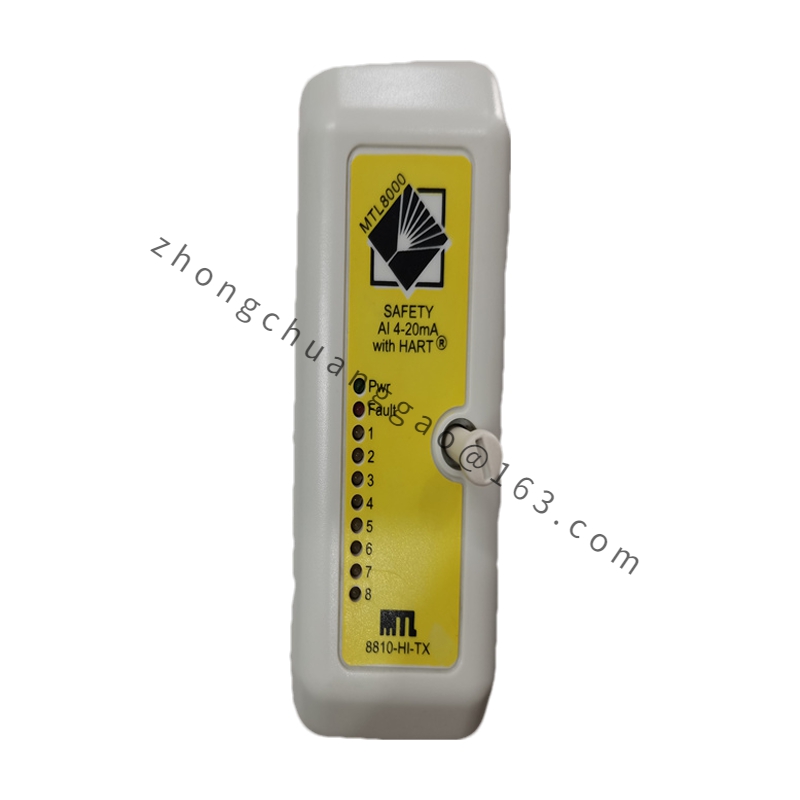

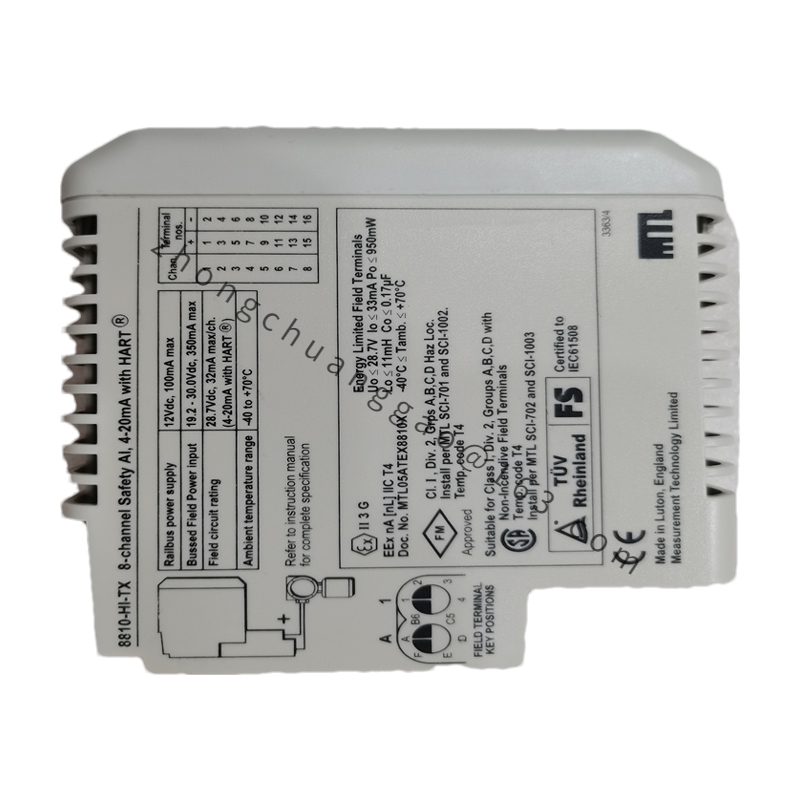

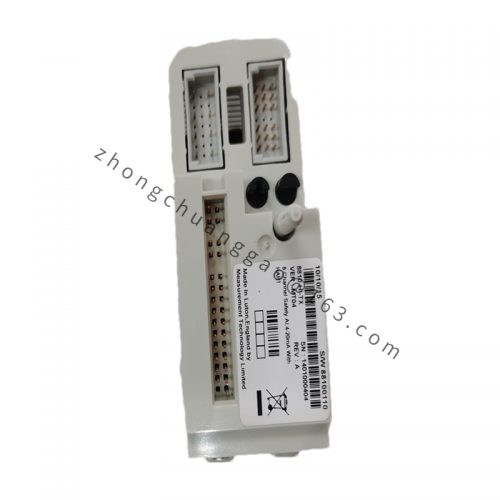

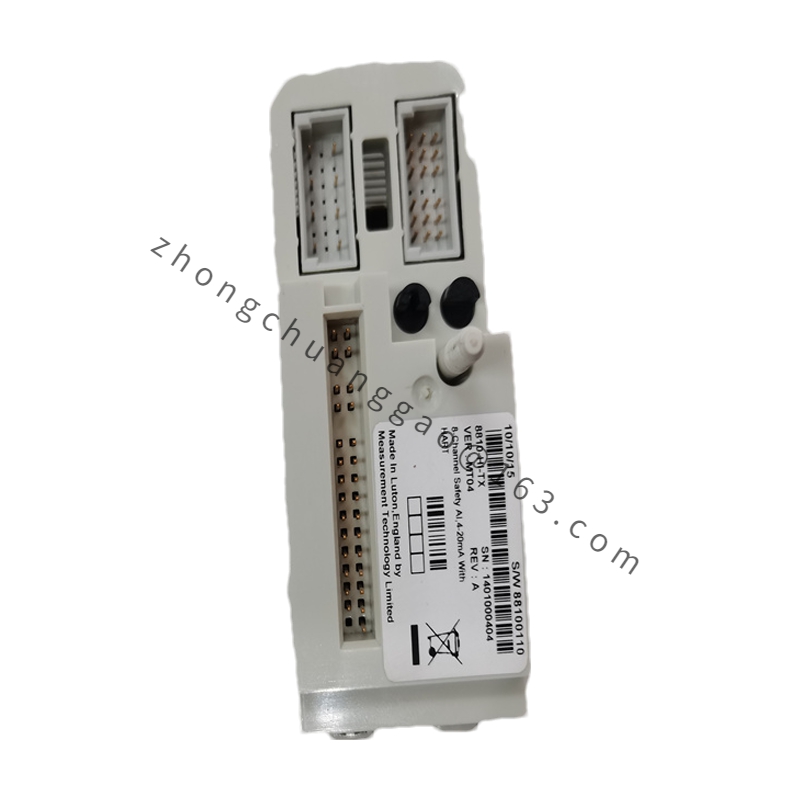

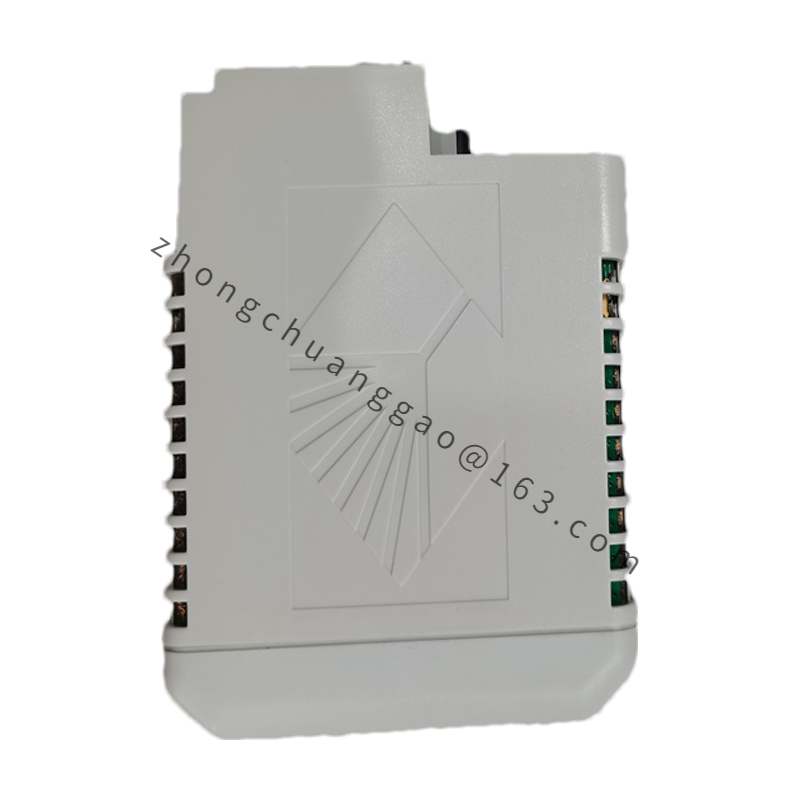

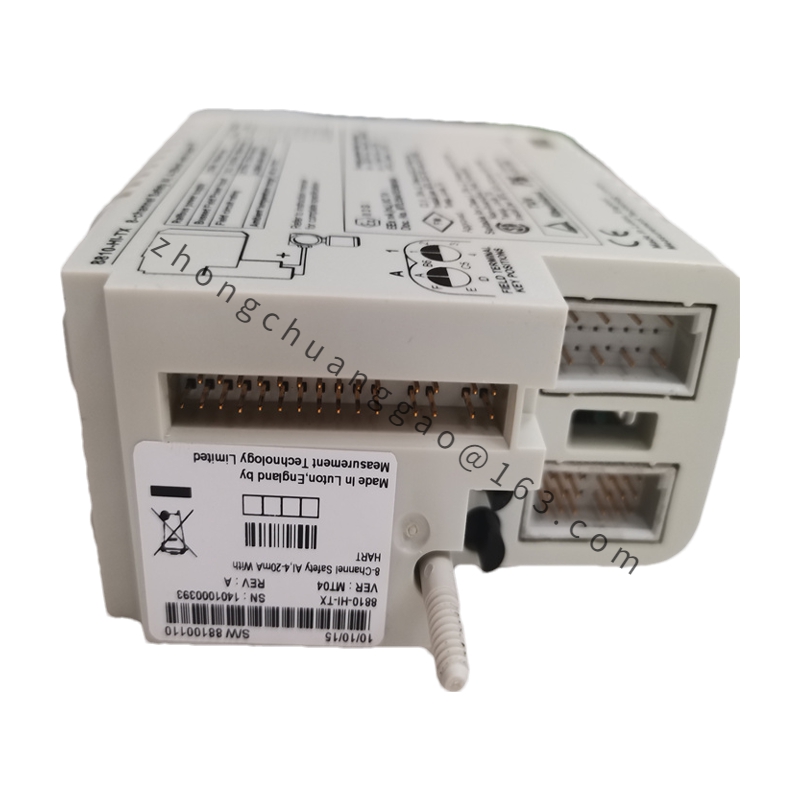

GE 8810-HI-TX
Technical Specifications:
Brand: GE
Part Number: 8810-HI-TX
Input Channels: 8 single-ended 4-20mA input channels
Certification: Certified for SIL 2 safety applications
Field Circuit Compatibility: Non-energized, suitable for 2-wire, 3-wire, or 4-wire transmitters
HART Capability: HART pass-through, acquisition, and status reporting
Detailed content
Power Requirements: 24V DC bus field power required (8914-PS-AC)
Resolution and Speed: 16-bit resolution; 25ms for HART, 0.75s per point for other functions
Current Consumption: System current of 70mA, field current of 350mA
Functional Characteristics:
Modularity: Part of the PAC8000 I/O solution, fully modular for general and hazardous area applications.
Open Architecture: Allows communication with various fieldbus systems through appropriate bus interface modules (IM) or controllers.
Field Terminals: Integrated onto the carrier, eliminating the need for additional terminals or connections for field wiring.
Easy Replacement: Field terminals can be easily replaced if damaged in the field, ensuring system safety.
Carrier Support: Supports and interconnects BIMs or controllers, power/I/O modules, and field terminals, carrying internal rail bus addresses, data, and power lines.
Application Scenarios:
Industrial Automation: GE 8810-HI-TX is designed for use in various industrial automation and control systems, such as production line control, mechanical processing, and logistics management.
Safety-Critical Applications: Its SIL 2 certification makes it suitable for applications where high safety standards are required.
Process Control: Ideal for monitoring and controlling processes that involve analog signals, such as temperature, pressure, and flow measurements.
