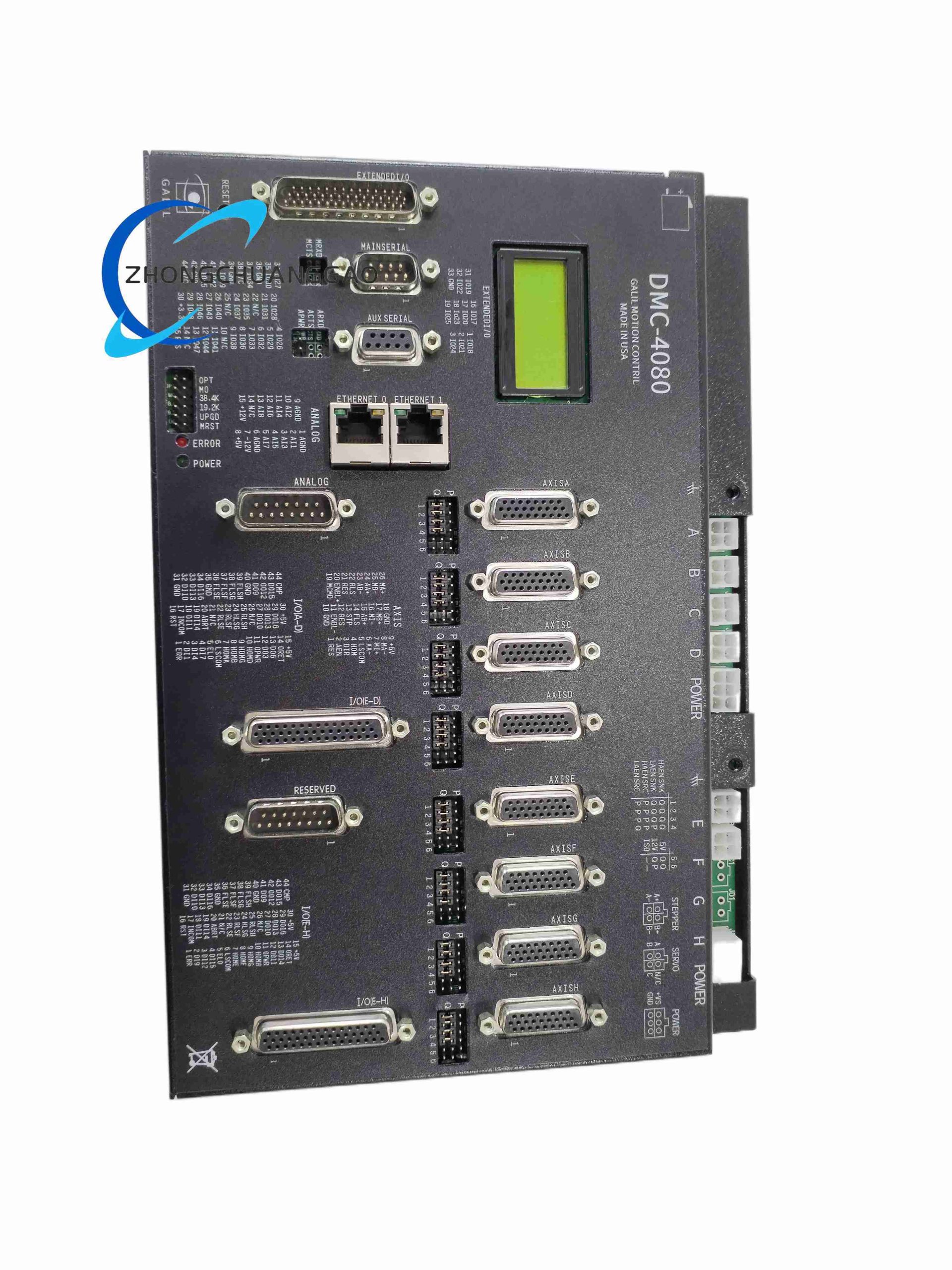

Galil DMC-4080
Product Introduction
Standalone or enclosed multi-axis controller for larger automation systems requiring up to eight servo or stepper axes.
Technical Specifications
Up to 8 axes. Ethernet and serial communication. Supports servo and stepper configurations. Optional internal stepper/servo drive modules depending on version. Extended I/O and breakout boards available.
Detailed content
Functional Features
Linear, circular, helical, and contour interpolation. Electronic camming and gearing. Advanced PID with feedforward and filters. High-speed position latch and compare. Expandable I/O through ICS breakout boards.
Application Scenarios
Multi-axis CNC. Assembly automation. Semiconductor equipment. Print and web handling systems. Complex robotic cells.
Performance Parameters
Designed for coordinated 5–8 axis motion. Optional internal drives support stepper or PWM servo output depending on module.
Material And Structure
Metal/industrial enclosure or controller board. D-sub and screw-terminal interfaces. Optional internal drive modules.
Working Principle
Host or standalone program issues motion commands. Controller processes feedback, executes trajectory planning, and outputs commands to external or internal drives.
Installation Requirements
Provide 24 VDC or specified supply. Route encoder, motor, and I/O cables separately. Use proper termination for Ethernet/serial networks. Match optional internal drives to motor type.
Usage Precautions
Check option string before replacing unit. Internal drive modules must match axis power requirement. Backup configuration and motion programs. Test axes with reduced speed before full production.
