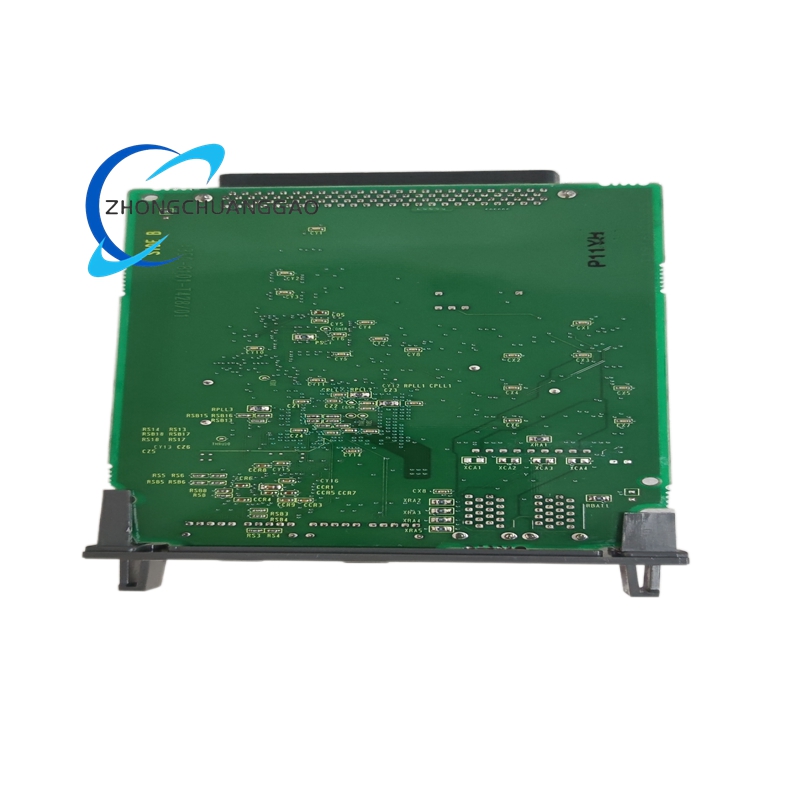

FANUC A20B-8101-0420
Product Name: FANUC Fast Ethernet Communication Board (Factory LAN / EtherNet/IP)
Product Introduction: The FANUC A20B-8101-0420 is an option communication board for FANUC CNC systems, providing Fast Ethernet connectivity for factory networking, data server functions, and industrial Ethernet protocols including EtherNet/IP.
Detailed content
Technical Specifications:
|
Parameter
|
Value
|
|---|---|
|
Manufacturer
|
FANUC
|
|
Part Number
|
A20B-8101-0420
|
|
Product Type
|
Communication Board / Option PCB
|
|
Compatible Systems
|
FANUC 16i/18i/21i, 0i, 30i series
|
|
Communication
|
Fast Ethernet (10/100 Mbps)
|
|
Supported Protocols
|
Factory LAN, EtherNet/IP, Data Server function
|
|
Mounting
|
Option slot on CPU board
|
|
Cooling
|
Natural convection
|
Functional Features:
- Provides additional Ethernet port for CNC networking
- Supports FOCAS, FTP, and MT-Connect protocols
- Enables data server function for network program storage
- Allows DNC operation streaming large programs from server
- Industrial Ethernet connectivity for factory automation integration
Structural Characteristics:
- Compact PCB designed for option slot installation
- Surface-mount Ethernet controller and interface components
- Gold-plated edge connector for CPU board interface
Installation Requirements:
- Power off CNC and disconnect main power before installation
- Wear ESD protection
- Insert board into correct option slot; align with guides and press firmly
- Secure with screws if applicable
- Configure network parameters (IP, subnet, gateway) after installation
Usage Notes:
- Verify board compatibility with control model and software version
- Some functions require separate FANUC software option key
- Configure parameters #904–#946 for embedded Ethernet settings
- Test connectivity with target system after installation
- Handle with ESD precautions; avoid bending connector pins
