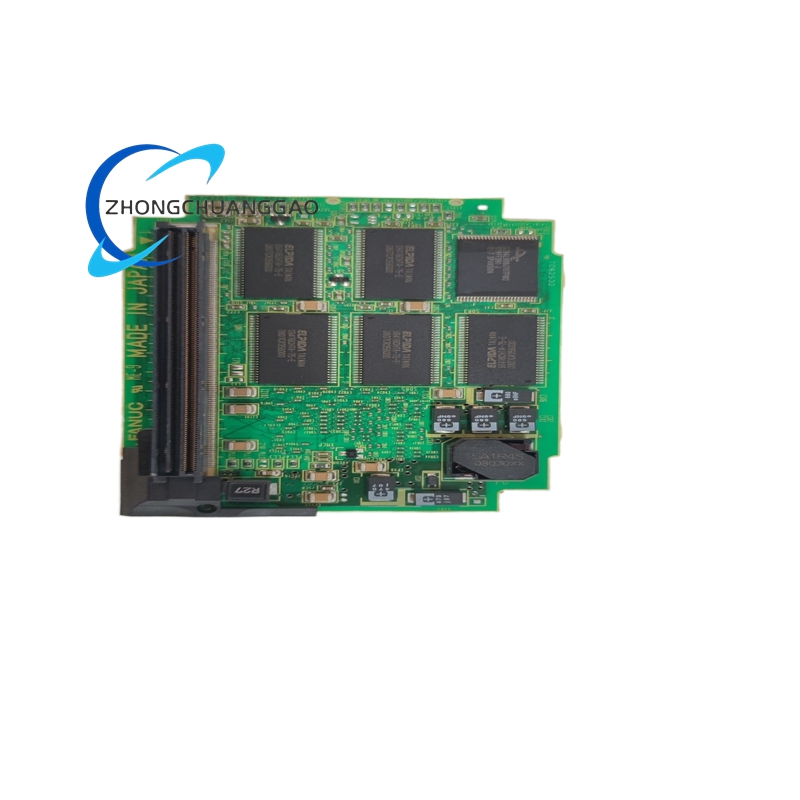

FANUC A20B-3400-0020
Product Name: FANUC Series 30i/31i-B Main CPU Board
Product Introduction: The FANUC A20B-3400-0020 is a high-performance multi-axis master CPU board designed for FANUC Series 30i/31i/32i-B CNC control architectures. It executes high-speed NC software, path interpolation, and PMC machine logic for advanced multi-axis machining centers.
Detailed content
Technical Specifications:
|
Parameter
|
Value
|
|---|---|
|
Manufacturer
|
FANUC
|
|
Part Number
|
A20B-3400-0020
|
|
Compatible Series
|
FANUC Series 30i-B, 31i-B, 32i-B
|
|
Board Type
|
Master CPU / Motherboard PCB
|
|
Memory
|
32 MB SDRAM
|
|
Mounting Style
|
Controller Backplane Slot-Mount
|
|
Cooling Method
|
Natural Convection / Cabinet Airflow
|
|
Operating Temperature
|
0°C to 45°C
|
|
Protection Rating
|
IP20
|
Functional Features:
- Executes high-speed NC software and path interpolation
- Manages multi-path kinematics for synchronized axis control
- Handles PMC (machine ladder logic) execution
- Supports complex high-speed machining algorithms
Installation Requirements:
- Controller backplane slot mounting
- Ensure stable regulated power supply
- Maintain pristine cabinet climate control
Usage Notes:
- Board is exceptionally vulnerable to electrostatic discharge
- Always use certified grounded ESD wrist strap
- Handle PCB strictly by edges or frame brackets
- Complete full system image backup (FROM/SRAM) via CF card or Ethernet before replacement
- Never force card into rack slot; align multi-pin edge connector carefully
- Verify all sub-boards, graphic cards, and memory modules are seated securely
- Model A and Model B architectures are not directly interchangeable
