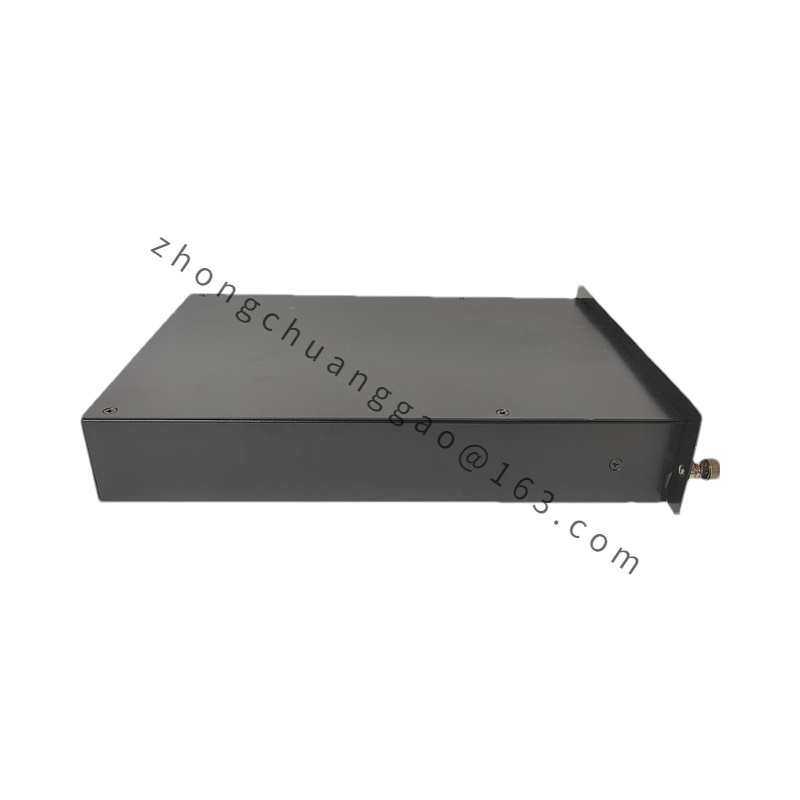

Enterasys STK-RPS-150PS P0973BP

The Enterasys STK-RPS-150PS P0973BP is a versatile module designed for use in a range of applications, primarily targeting the PXI Express (PXIe) platform and Ethernet-managed switches. It serves as a redundant power supply module (RPSM) for Enterasys A4 series Ethernet managed switches, providing reliable power solutions. Additionally, it can also function as a high-density matrix switch module, enabling flexible signal routing and connection in test and measurement systems.

WhatApp
WeChat

Detailed content

Technical Specifications

  • Brand: Enterasys

  • Model: STK-RPS-150PS P0973BP

  • Dimensions:

    • Width: 53mm
    • Height: 125mm
    • Depth/Length: 260mm

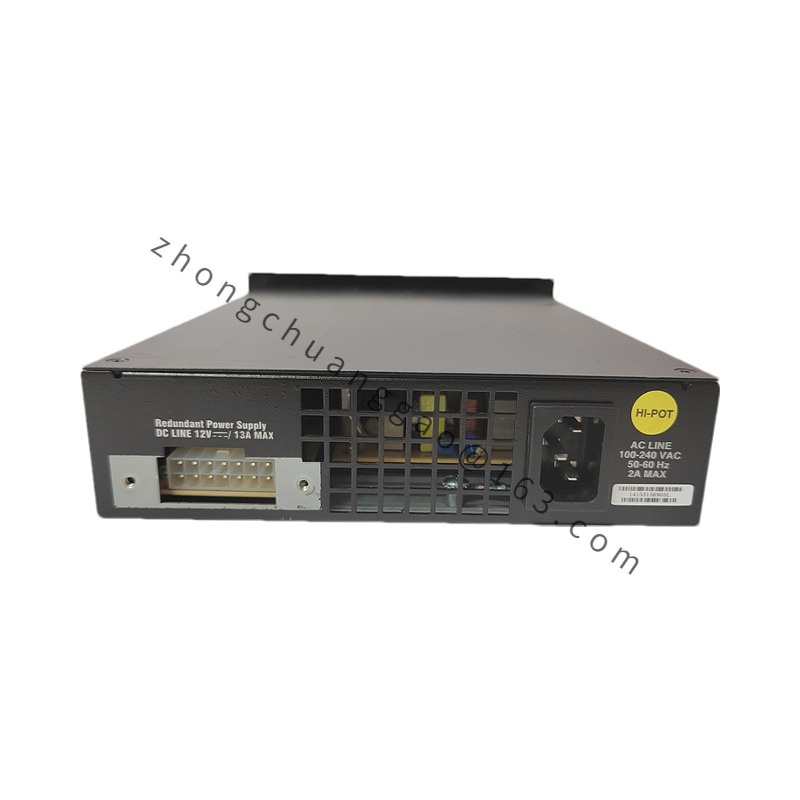

  • Power Output:

    • 12V DC, up to 150W (156W mentioned in some sources)

  • Input Voltage Range: 100-240VAC

  • Compatibility: Compatible with various A4 series and/or C series managed switches, such as 24-port copper, 24-port fiber, or 8-port copper/8-port fiber switches.

Functional Characteristics

  • Hot-Pluggable: Allows for the replacement or addition of power modules without shutting down the switch, enhancing system availability and maintenance.

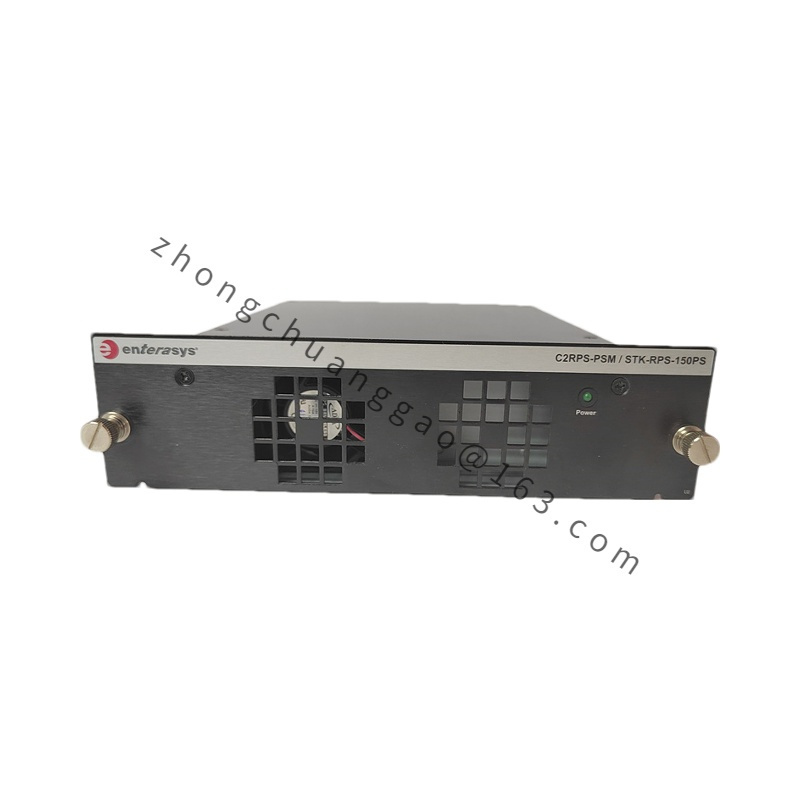

  • Front Panel Status LED: Indicates the operational status of the RPSM.
  • High-Density Matrix Switching: Provides numerous input and output channels for flexible configuration of connection relationships, supporting multi-signal switching and multi-test applications.
  • High-Speed Signal Transmission: Features low latency and high bandwidth, suitable for applications requiring rapid data exchange and real-time signal routing.
  • Multiple Switch Configurations: Supports both unipolar and bipolar switches, accommodating asymmetric signals and symmetric/differential signals respectively.
  • Software Control: Equipped with NI-DAQmx driver software and LabVIEW development tools, enabling easy configuration, control, and automation of the switching matrix.
  • Scalability and Integration: Based on the PXIe platform, it can interconnect with other PXIe modules and devices to build more complex test and measurement systems.

Application Scenarios

  • Redundant Power Supply: Provides stable power supply for Enterasys A4 series Ethernet managed switches, ensuring the normal operation and data transmission stability of the network system.
  • Test and Measurement Systems: Utilized in automated test environments, supporting data acquisition, real-time monitoring, and feedback control.
  • Industrial Automation: Controls and monitors various equipment and machines on production lines, ensuring efficient and reliable operation.
  • Data Centers and Networking: Ensures uninterrupted power supply and signal routing in data centers and networking environments.
  • Laboratory Research: Records discrete events and state changes in experiments, aiding researchers in data analysis and trend monitoring.
