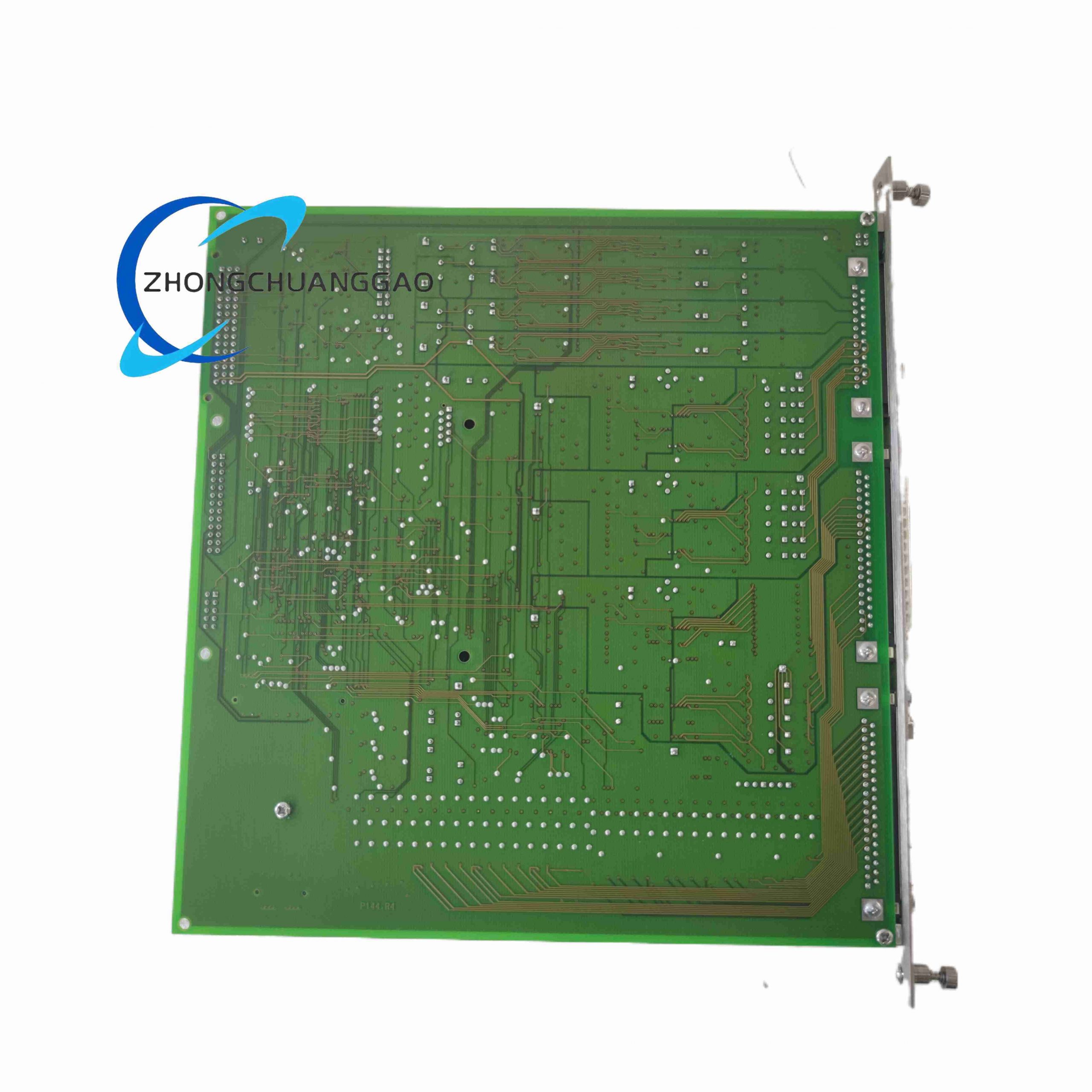

Emerson DA7281440
Product Name: DA7281440 Intelligent I/O Board
Product Introduction
The DA7281440 is a process automation I/O board. Public listings identify it with the P144.R4 reference and associate it with Daniel flow-computer or Emerson Ovation distributed control system hardware. Available sources conflict regarding the exact platform, revision, and channel configuration, so the detailed electrical specification cannot be confirmed without the original labelled assembly and manufacturer documentation.
Detailed content
Technical Specifications
Brand: Emerson / Daniel
Model/Part Number: DA7281440
Related Reference: P144.R4, per some available sources
Product Type: Intelligent I/O board
Platform: Daniel flow computer or Emerson Ovation DCS; exact system requires confirmation
Detailed Channel Configuration: Not independently confirmed
Electrical Ratings: Not independently confirmed
Functional Features
Field Signal Interface: Processes analog, digital, or other field signals for the host system.
Signal Conditioning: Prepares field inputs for conversion and control functions.
System Communication: Interfaces with the host CPU, controller, or backplane.
Industrial Application: Supports process measurement, control, or I/O functions.
Application Scenarios
Flow measurement: Daniel flow computer systems, per some available sources
Distributed control: Emerson Ovation systems, per some available sources
Process automation: Field signal acquisition and output
Industrial facilities: Plants requiring compatible rack-mounted I/O hardware
Material Composition
Detailed material composition has not been independently verified. The board uses a printed circuit board with electronic components, connectors, and protective or heat-dissipating hardware consistent with industrial I/O assemblies.
Structural Characteristics
Form Factor: Rack, chassis, or backplane-mounted printed circuit board
Connectors: Edge connector and/or terminal interface, depending on exact assembly
Identification: Verify board label, revision, and serial information before installation
Working Principle
The board receives field or backplane signals, performs conditioning and conversion where applicable, and exchanges processed data with the host system. The exact signal path and onboard processing functions depend on the hardware revision and system platform.
Installation Requirements
Platform Confirmation: Confirm whether the board belongs to the Daniel or Ovation platform.
Revision Check: Match the board revision, personality, and companion底板 or terminal assembly.
Power Removal: Disconnect system power before installing or removing the board.
Seating: Insert the board fully into the correct slot or connector.
Wiring Verification: Confirm field terminations after installation and before energizing the system.
Usage Precautions
Conflicting References: Current evidence does not establish a single universally correct channel count or electrical specification.
No Cross-Platform Assumption: Do not install the board in a system unless compatibility is confirmed by the original documentation.
Electrostatic Protection: Handle the board using appropriate anti-static precautions.
Spare-Part Verification: Verify the part number, revision, and functional configuration before ordering or replacement.
