Operating Voltage:24 VDC

Current Rating:5A

Switching Frequency:Up to 20 kHz

Load Circuit Type:High Side

Relay Output:SPST (Single Pole Single Throw)

Temperature Range:-40°C to +85°C

Environmental Protection:IP65

Communication Interface:RS-485

Control Protocol:MODBUS RTU

Module Size:35mm x 19mm

Mounting Type:Panel Mount

Weight:Approx. 25g

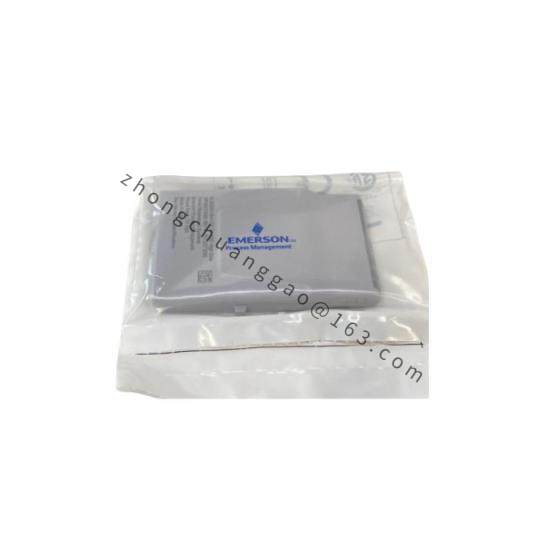

    The EMERSON 12P4627X082 DO 24 VDC High Side Module, Rev K is engineered for durability and reliability in industrial control systems. Its high-side switching capability ensures isolation between the power supply and load circuit, enhancing system safety.

    With a wide operating temperature range from -40°C to +85°C, this module is suitable for a variety of industrial environments. It supports up to 20 A of current, making it capable of handling demanding loads.

    Equipped with overcurrent and short-circuit protection, the module safeguards against potential damage caused by excessive current flows or circuit faults, ensuring uninterrupted operation.

    For easy installation and flexibility, the module features a DIN rail mounting design, allowing quick integration into existing control panels. Its compact size (35 mm x 115 mm x 25 mm) optimizes space usage.

    Certified to UL, CE, and FCC standards, the 12P4627X082 complies with international safety regulations, ensuring its compatibility and safe use across various markets.

    Designed for indoor industrial control cabinets, this module is ideal for applications requiring precise control and efficient power management, such as HVAC systems, robotics, and automation processes.
