Technical Specifications:​

Model suffix B6: 240 V AC, 50/60 Hz operating voltage

Time ranges: 19.999 seconds to 199 hours 59 minutes through five selectable ranges

Display: 4.5-digit LCD, 0.5-inch character height

Outputs: two Form C instantaneous contacts and two Form C programmed contacts

Relay output rating: 10 A resistive at 120 V AC

Solid-state output rating: 1 A at 0-264 V AC/DC

Setting accuracy: ±0.1% or 50 ms, whichever is larger, from 0 °C to 60 °C

Repeat accuracy: ±0.1% or 35 ms, whichever is larger, from 0 °C to 60 °C

Count reset time: 30 ms after voltage removal from simulated clutch input

Power-on response: 300 ms maximum

Operating temperature: 0 °C to +60 °C

Count input: 120 V AC 50/60 Hz or 120 V DC according to configuration

Programming: 7 miniature rocker switches and front sealed membrane keypad

Memory: non-volatile data retention

Approvals: UL Recognized E96337, CSA Certified LR26861

Functional Features:​

Selectable time or count operation modes

On-delay, pulse, interval, pulse-repeat and related timing functions

Keypad lock to prevent unauthorized setpoint changes

Count input scale factor and programmable pulse output

Front annunciators for timing/counting status

Performance Parameters:​

LCD resolution 19999 counts or time digits according to range

Reset and power-on timing defined for industrial sequencing

Vibration immunity: unaffected by 2.5 G sinusoidal vibration, 10-100 Hz

Electrostatic immunity: unaffected by 3600 V peak, 60 Hz discharge test

Material Composition:​

Case: CYCL-FLEX industrial plug-in plastic enclosure

Display: LCD with sealed membrane overlay

Contacts: electromechanical relay elements and solid-state output components

Switches: miniature rocker switches with industrial-grade housings

Structural Characteristics:​

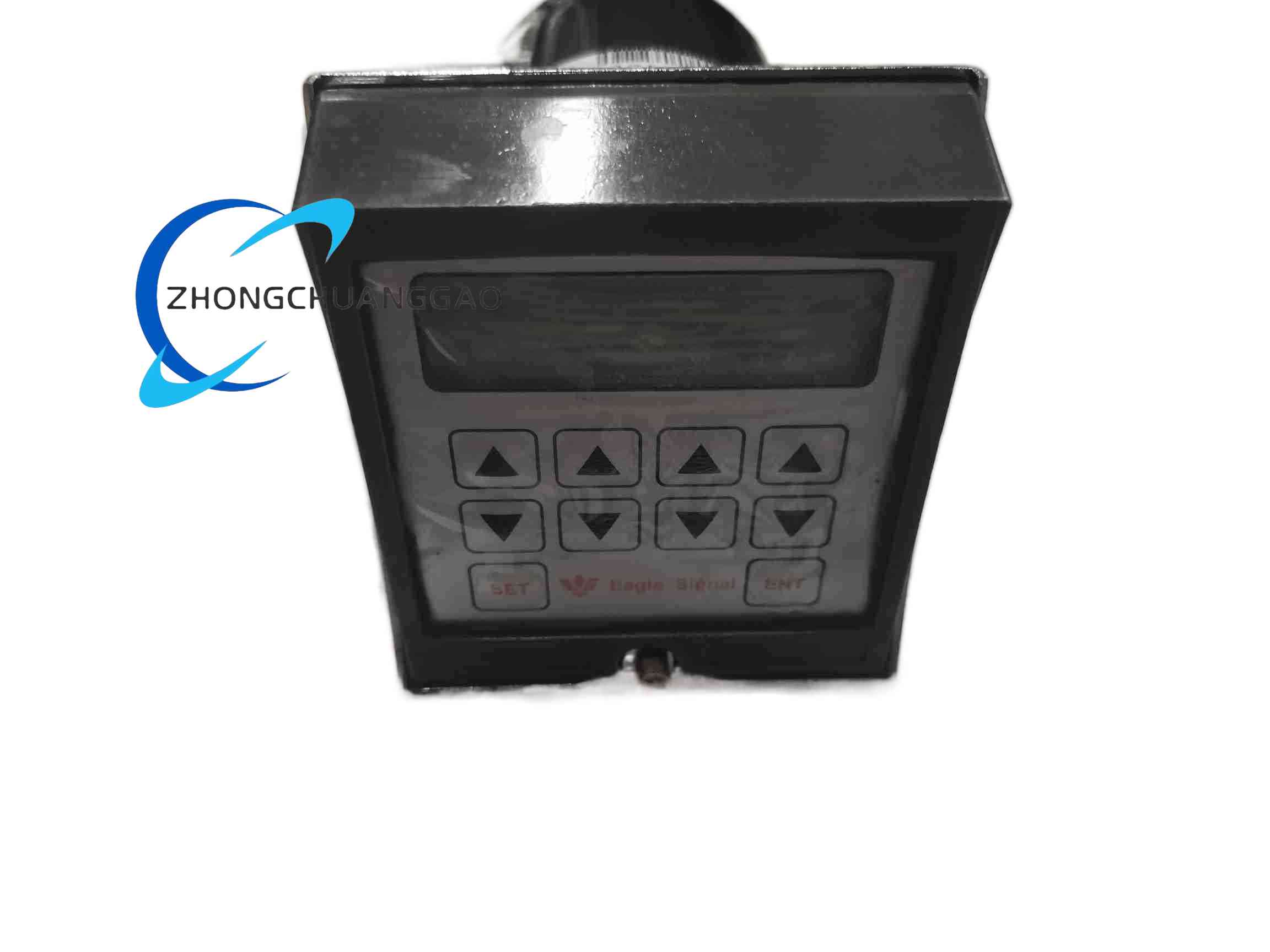

CYCL-FLEX plug-in timer/counter format

Front LCD, membrane keypad and rocker switches

Plug-in rear connection for power, inputs and output contacts

Compatible enclosures include HN308 with terminal block and HN364 without terminal block

Working Principle:​

The microprocessor counts clock pulses for timing or external input pulses for counting. Switch and keypad settings determine mode, range, output timing and reset behavior. When preset values are reached, programmed and instantaneous outputs change state to control relays, solenoids, conveyors or batch equipment.

Installation Requirements:​

Install in a CYCL-FLEX enclosure, HN308/HN364 or approved adapter plate

Supply 240 V AC 50/60 Hz for B6 version with correct fusing

Use H-5331 brackets, HP50-31 ring or PDM-534 adapter where panel format requires

Maintain ambient temperature within 0 °C to +60 °C

Usage Precautions:​

Set all rocker switches before applying load control duties

Use keypad lock in shared facilities to prevent setpoint changes

Do not exceed 10 A resistive or 1 A solid-state output ratings

Test relay and solid-state outputs on no-load before production counting
