Technical Specifications:​

Input channels: 8 analog inputs

Output channels: 4 analog outputs

User power: 24 V DC supplied to module I/O connector

Wire size: 14-22 AWG terminal connection

Unipolar input ranges: 0-5 V, 0-10 V, 0-20 mA, 1-5 V with offset scaling

Bipolar input ranges: -5 to +5 V, -10 to +10 V, -20 to +20 mA

Unipolar output ranges: 0-5 V, 0-10 V, 0-20 mA

Bipolar output ranges: -5 to +5 V, -10 to +10 V, -20 to +20 mA

Resolution: 12-bit input and output conversion

Update time for all channels: 6 ms

Isolation: 1500 V channel-to-backplane and output channel-to-channel

Operating temperature: -20 °C to +85 °C for listed industrial versions

Mounting: 2500 series I/O base, rack or panel I/O station

Functional Features:​

Per-channel jumper and DIP-switch selection for voltage/current, unipolar/bipolar

Asynchronous input/output scanning relative to PLC program scan

Immediate output instruction compatibility with 545 and 555 PLCs

Active status LED for normal operation and calibration alert

Direct replacement capability for Siemens 505-7012 and 505-7016 analog modules without rewiring

Performance Parameters:​

Input buffering for one full module update before PLC read

Output settling governed by module update time and load characteristics

Offset scaling formula support for 1-5 V and 4-20 mA transducer signals

LED steady state indicates healthy operation, blinking indicates calibration required

Material Composition:​

Front bezel: industrial molded plastic with status window

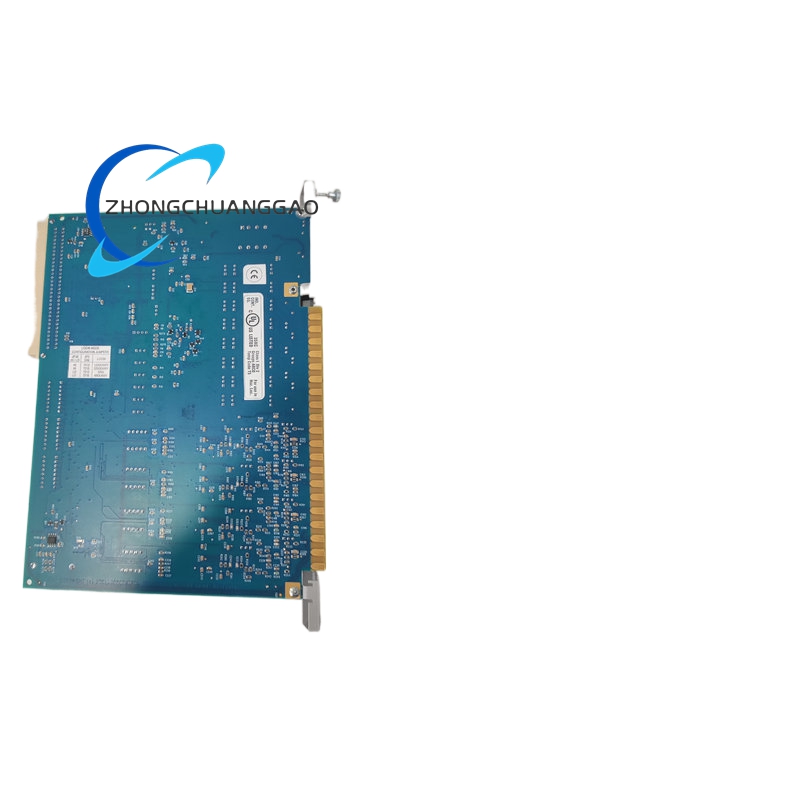

Internal boards: multilayer control PCB

I/O connector: insulated pluggable terminal block with metal contact elements

Jumper and DIP hardware: standard industrial-grade components

Structural Characteristics:​

2500 series plug-in I/O module format

Front Active LED and labeled connector interface

Internal jumper/DIP access for range configuration

Direct base mating with 2500 I/O backplane or compatible carrier

Working Principle:​

Each analog input passes range conditioning and ADC conversion into buffered digital words. The PLC reads buffered input data during I/O scan. For outputs, the module receives digital commands from the PLC, converts them through DAC stages, and drives voltage or current signals to field actuators. Operation remains asynchronous to reduce scan coupling delay.

Installation Requirements:​

Install in a 2500 series I/O base with proper 24 V DC user supply

Set all range jumpers and DIP switches before applying power

Use shielded cable for analog signals and separate from high-power wiring

Confirm Siemens 505 controller compatibility and slot addressing

Usage Precautions:​

Do not change jumpers under live power

Recalibrate the module if the Active LED blinks

Verify 1500 V isolation limits before connecting extrinsic high-voltage circuits

Match output load to supported voltage/current ranges to prevent driver saturation
