CompactLogix 16-P Output Module | Efficient & Reliable Control Solutions by Allen-Bradley

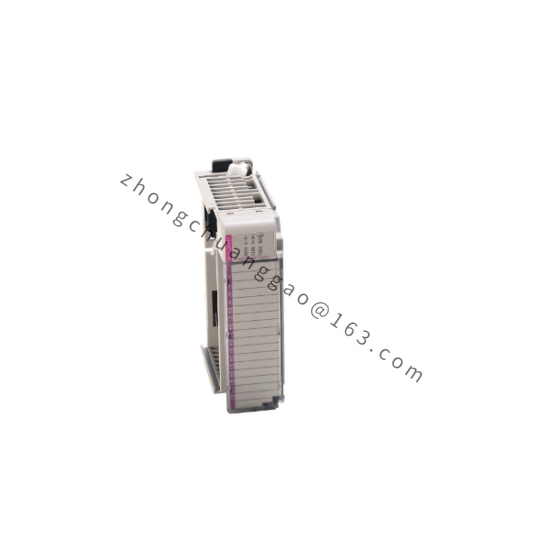

The Allen-Bradley 1769-OB16P is a compact, versatile output module designed for integration into Allen-Bradley CompactLogix and MicroLogix 1500 systems, offering 16 discrete outputs for efficient control applications across various industries.
Detailed content
Module Type:Discrete Output
No. of Outputs:16-Pin
Voltage Category:24VDC
Output Voltage Range:20.4-26.4VDC
Mounting:DIN Rail
Input Power:24 Volts DC
Operating Voltage Range:20 to 26.4 Volts DC
Dimensions:118 x 70 x 87 mm (4.65 x 2.76 x 3.43 in.)
Weight:630 g (1.39 lb)
Engineered for industrial-grade performance, the Allen-Bradley 1769-OB16P is built with robust materials to withstand harsh environmental conditions, ensuring reliable operation in the most demanding settings.
Each of the 16 discrete outputs is designed for sourcing, allowing for direct connection to actuators, relays, and other devices in your automation system, facilitating precise control over processes.
The module boasts a compact design that optimizes space utilization, making it ideal for compact control panels and machine architectures where every inch counts.
With its support for Modbus TCP/IP protocol, the 1769-OB16P ensures seamless communication within an industrial network, enabling easy integration with existing systems and enhancing overall system efficiency.
Featuring advanced diagnostic capabilities, this output module provides real-time monitoring and troubleshooting information, helping maintenance teams quickly identify and resolve issues, thus minimizing downtime and maximizing productivity.
