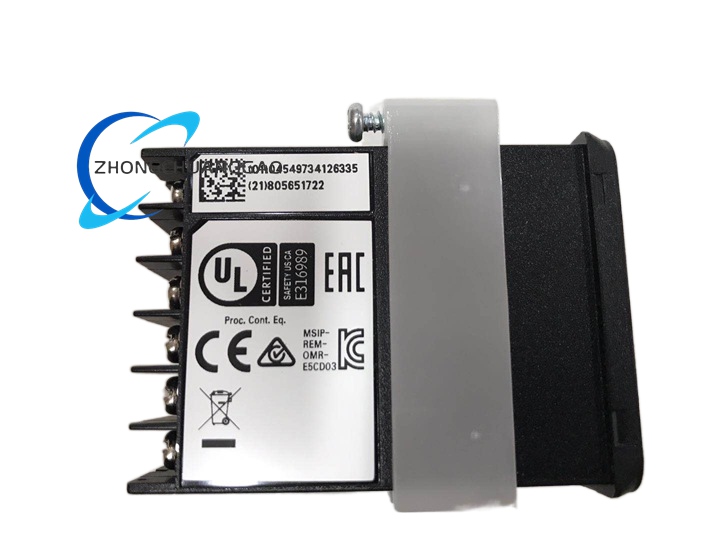

Technical Specifications​

Brand: Omron

Series: E5CD

Power supply: 100–240 VAC

Control output: relay

Auxiliary outputs: 2 independent

Input: thermocouple, Pt100, current, voltage, non-contact sensor

Control method: ON/OFF, PID with auto-tuning

Communication: RS-485, Modbus / CompoWay/F

Panel size: 48 × 48 mm

Cutout: 45 × 45 mm

Terminal: screw terminal block

Protection: IP66 front

Operating temperature: -10–55 °C

Functional Features​

Universal sensor input

Auto-tuning PID control

Adaptive control for process fluctuation

Heater break / SSR fault detection

Event inputs

Push-in or screw terminal versions available

Structural Features​

Square DIN panel format

Draw-out terminal block version available

Dual-color LCD display

Front membrane keys

Material Composition​

Plastic front bezel

Metal/plastic housing

Screw terminal block

Industrial PCB assembly

Working Principle​

The controller reads the process sensor input, compares it with the setpoint, and adjusts the control output using PID or ON/OFF control. Communication allows supervisory monitoring and parameter setting.

Application Scenarios​

Packaging machines

Extrusion machines

Plastic molding

Food and beverage heating

Industrial oven and chamber control

Installation Requirements​

Standard 45 × 45 mm panel cutout

Tighten bezel without deforming housing

Use correct sensor type setting

Terminate RS-485 with proper grounding

Usage Notes​

Verify sensor type before energizing

Do not exceed relay current rating

Avoid condensation on front panel

Use proper ferrite/grounding in noisy environments
