Technical Specifications​

Display type: TFT color

Diagonal: 15 inches, 381 mm

Resolution: XGA 1024 × 768 pixels

Colors: 16.7 million

Backlight: LED

Brightness: 350 cd/m²

Backlight service life: 70,000 hours to half brightness

Contrast ratio: 1000:1

Viewing angle: 85° horizontal and vertical

Touch technology: analog resistive

Touch controller: Elo serial, 12-bit

Touch transmittance: 81% ±3%

USB interfaces: 3 × USB 2.0 Type A, maximum 500 mA per port

Expansion: Automation Panel Link slot, PPC300 slot compatible

Rated voltage: 24 VDC ±25%, SELV

Rated current: maximum 3.2 A

Inrush current: typical 6 A, maximum 30 A for less than 300 µs

Power consumption: typical 24 W, maximum 31 W with USB configuration

Galvanic isolation: yes

Functional Features​

Fanless operation for low-maintenance installations

Resistive touch usable with finger, glove or stylus

Small installation depth for compact cabinet doors

APL or PPC300 upgrade path for distributed or built-in controller operation

Dimmable LED backlight and long-life industrial LCD

Application Scenarios​

CNC machine front panels

Packaging line operator stations

Chemical and food-and-beverage process monitoring

Factory visualization where IP65 front cleaning is required

Performance Parameters​

Front protection: IP65, NEMA 250 Type 4X indoor

Rear protection: IP20 with installed APL or system link card

Operating temperature without Rittal housing: 0 to 50°C at 0° orientation, 0 to 45°C with display-below orientation

Operating temperature with Rittal housing: 0 to 40°C

Storage and transport temperature: -25 to 60°C

Vibration, continuous operation: 2 to 9 Hz at 1.75 mm amplitude, 9 to 200 Hz at 0.5 g

Shock, operation: 15 g, 11 ms

Maximum operating altitude: 3000 m

Pollution degree: 2 per EN 61131-2

Material Composition​

Housing: metal coating similar to Pantone 432CV

Front frame: aluminum, natural anodized

Front overlay: polyester

Gasket: flat gasket around front display opening

Display assembly: TFT LCD, LED backlight, analog resistive touch layer

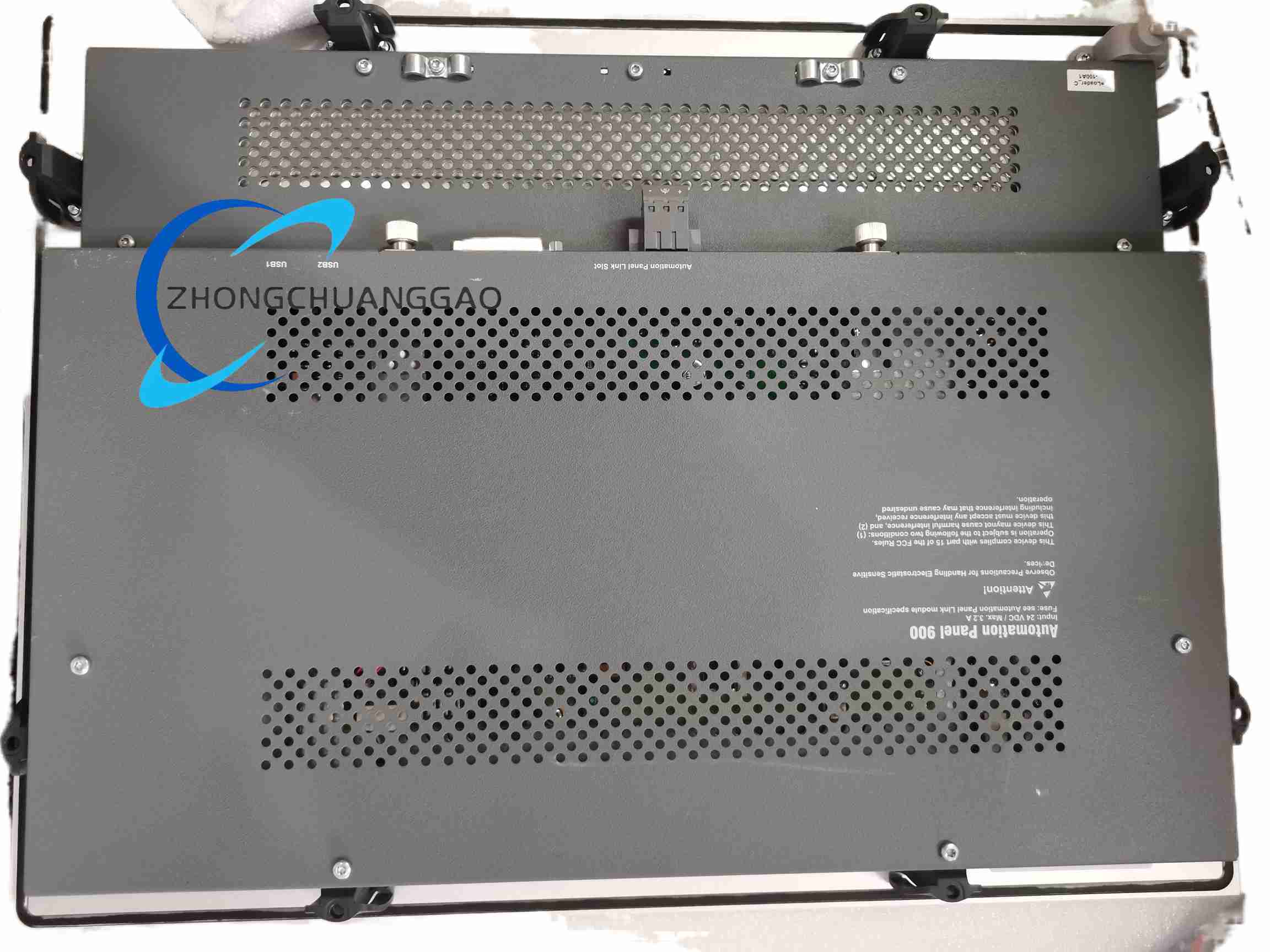

Structural Characteristics​

Flat-front industrial operator panel

Rear slot for APL card or PPC300 automation module

Three front/service USB 2.0 ports

Shallow depth fanless enclosure

Working Principle​

The controller or PPC300 module transmits video and touch data through the Automation Panel Link interface. The TFT panel renders the HMI screen while the Elo resistive controller digitizes touch pressure coordinates and returns them over the serial USB path to the automation system.
