Manufacturer:BERGHOF

Model:QAIO16/4-V

Module Type:Digital Input Module

Input Channels:16

Signal Voltage Range:0-10V DC

Signal Current Range:0-20mA

Supply Voltage:24V DC

Operating Temperature:-20°C to +60°C

Protection Rating:IP20

Dimensions:140mm x 90mm x 65mm

Weight:Approximately 1kg

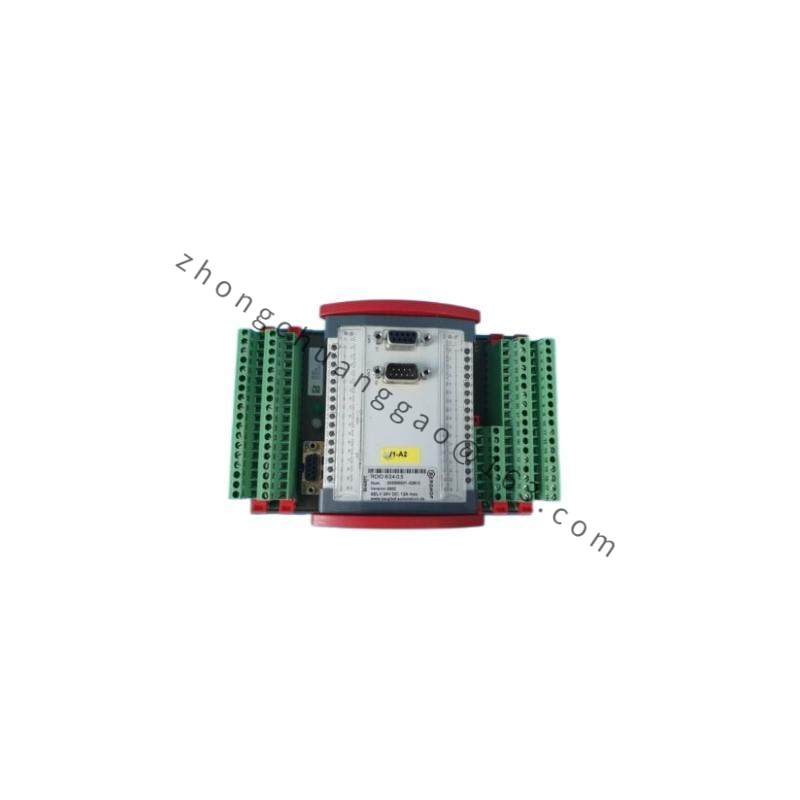

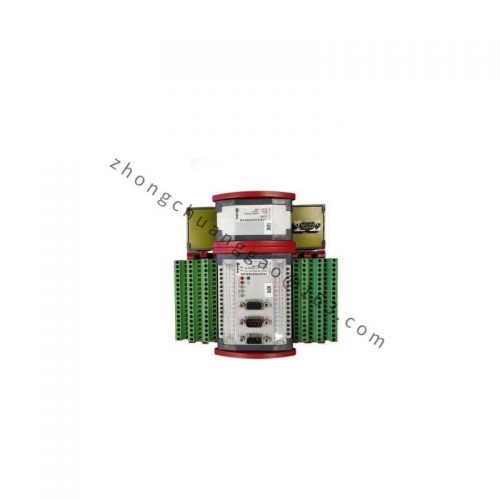

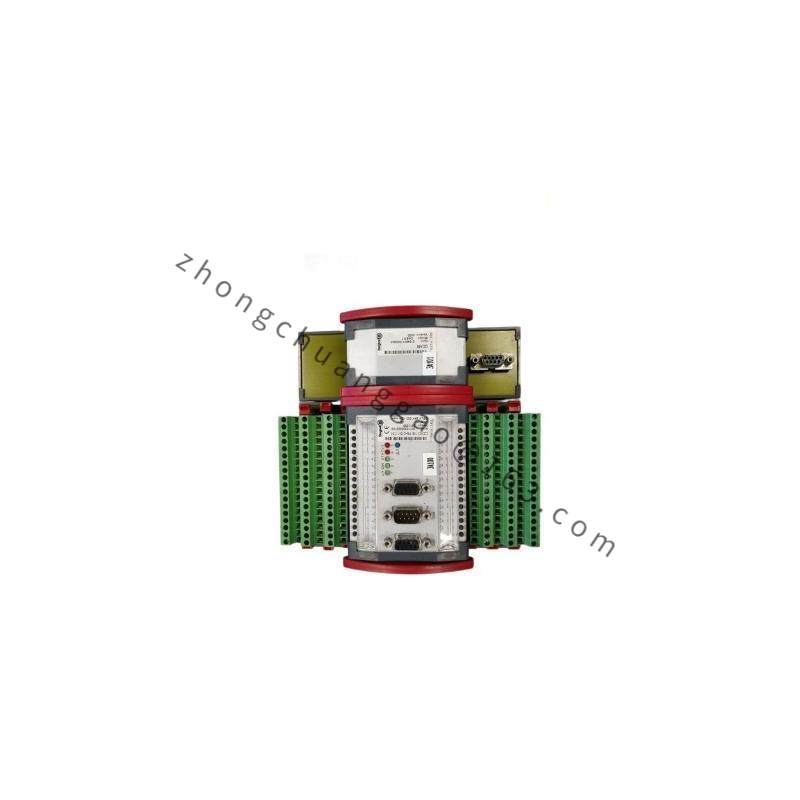

    The BERGHOF QAIO16/4-V is an advanced analog input module designed for industrial automation environments. Its primary function is to accurately measure and convert analog signals into digital data for seamless integration with programmable logic controllers (PLCs) and other industrial control systems.

    This module supports 16 single-ended or 8 differential channels with a resolution of up to 16 bits, allowing for highly precise measurements. With a sampling rate of up to 100 kS/s, it ensures real-time data acquisition, making it ideal for high-speed processes.

    The QAIO16/4-V can handle input ranges of +/-10V, +/-5V, +/-2.5V, and +/-1.25V, offering versatility for different application requirements. It operates on a standard 24V DC power supply, ensuring compatibility with most industrial setups.

    Designed for harsh industrial conditions, this module boasts an operating temperature range from -40°C to +85°C. It also features robust protection against electromagnetic interference, ensuring reliable performance even in noisy environments.

    The compact size of 100mm x 60mm x 25mm makes the QAIO16/4-V easy to integrate into tight spaces without compromising functionality. Its lightweight design (approximately 200g) further enhances its ease of installation and maintenance.
