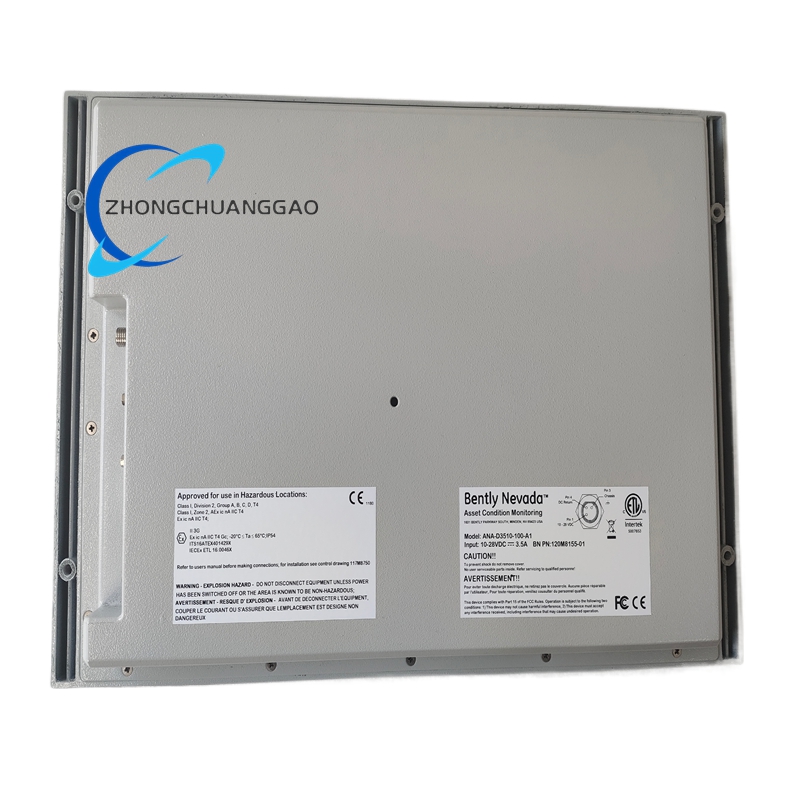

Bently Nevada ANA-D3510-100-A1 120M8155-01
Product Name
Bently Nevada ANA-D3510-100-A1 120M8155-01 industrial operator interface display for 3500 mechanical protection and vibration monitoring systems.
Product Overview
The unit provides local visualization and touch interaction for machinery protection data such as vibration, shaft displacement, speed and temperature. It is built for panel, rack or standalone mounting in hydrocarbon, power and heavy-industrial environments.
Detailed content
Technical Specifications
Display: 10.1 to 10.4 inch industrial TFT LCD, resistive touch.
Resolution: 640×480 pixels 4:3 for the 10.4 inch configuration.
Brightness: approximately 450 cd/m² with LED backlight life around 50,000 hours.
Touch: analog resistive, operable with industrial gloves.
Video and data interface: VGA and serial touch interface; front-panel function buttons.
Supply voltage: 24 V DC typical, 10 to 28 V DC operating range.
Inrush current: up to 3.5 A at 24 V DC during startup.
Dimensions: 249×389×48 mm housing.
Panel cutout: 342.9×228.6 mm.
Weight: approximately 4.0 kg with packing.
Front protection: IP65 for the touch variant, IP54 for some alternative configurations.
Operating temperature: −20 to +65°C.
Storage temperature: −40 to +80°C for the wider-rated variant.
Humidity: 10 to 85 percent relative, non-condensing.
Hazardous-area certification: Class I Division 2 Groups A–D T4, CSA C22.2, ISA 12.12.01, ATEX/IECEx Zone 2.
Functional Features
Resistive touch works with gloves and in dusty or wet front-panel conditions.
Wide supply range supports direct panel integration with control-system DC power.
Local alarm, trend and channel browsing reduce dependence on remote workstations.
Rugged front seal resists splashing, oil mist and industrial contaminants.
Application Scenarios
Oil and gas compressors, turbines and pipeline machinery monitoring.
Power generation rotating equipment protected by Bently 3500/94M or Orbit 60.
Petrochemical, renewable and battery-manufacturing sites requiring hazardous-area operator panels.
Performance Parameters
Screens present radial and thrust vibration, shaft position, RPM, temperature and relay/alarm status.
Touch response remains stable across the rated industrial temperature range when heating accessories are used below −20°C.
Brightness and contrast are set for control-room and field-enclosure viewing.
Material Composition
Front bezel uses sealed industrial aluminum or coated metal with gasket assembly.
Display window uses tempered anti-glare optical material.
Internal chassis uses plated steel and printed-circuit assemblies conformal-coated for industrial service.
Structural Characteristics
Flat-panel LCD module with integrated touch overlay.
Industrial driver board and communication interface in a sealed rear enclosure.
Panel-mount flange with gasket and fixing points for 342.9×228.6 mm cutout.
Working Principle
The display receives processed measurement data from the monitoring system through VGA and serial communication.
The touch controller translates screen inputs into menu navigation commands.
The processor renders trends, bar graphs and alarm lists for local operator decision-making.
Installation Requirements
Cut the panel opening to 342.9×228.6 mm and use supplied or specified mounting hardware.
Connect 10 to 28 V DC with adequate current margin for 3.5 A inrush.
Route VGA and serial cables with separation from high-voltage wiring.
For ambient below −20°C, install the approved heated enclosure option.
Verify hazardous-area approvals before installation in Division 2 or Zone 2.
Usage Precautions
Do not hot-swap modules while the monitoring system is energized.
Do not apply AC signals to analog or touch interface terminals.
Ground cable shields at the receiver end only to avoid ground loops.
Recalibrate channel zero and span after any wiring change.
Inspect gasket and front seal periodically to maintain IP protection.
