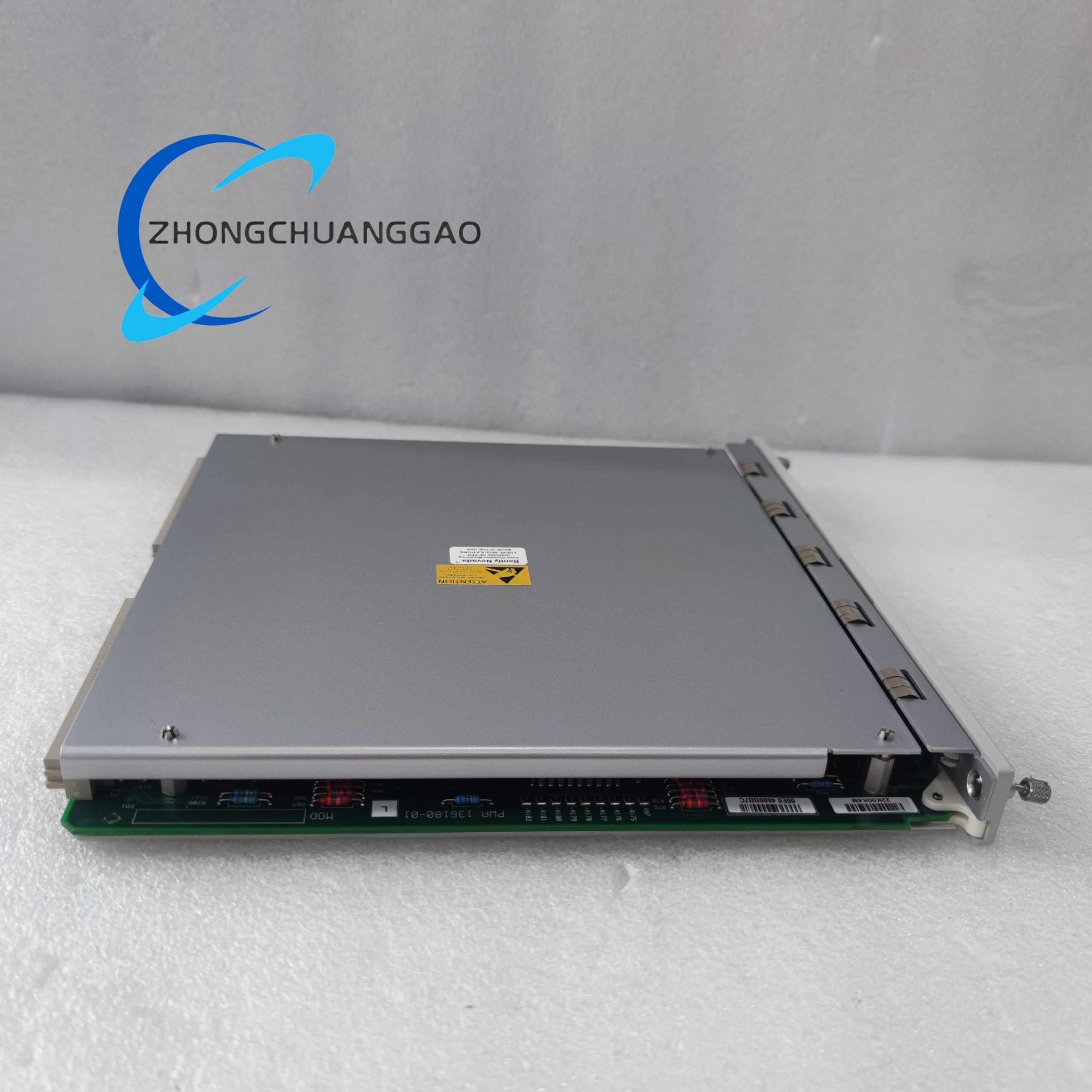

Bently Nevada 3500/92 Modbus RS485 I/O Communication Gateway Module
Technical Specifications:
-
Protocols: Modbus RTU, Modbus TCP/IP, BACnet, OPC server option
-
Serial Ports: RS232 / RS422 / RS485 isolated, configurable 1,200–230,400 baud
-
Ethernet: 10/100BASE-T RJ45, auto-MDIX
-
Modbus Capacity: 32 slaves, 256 registers, 64 I/O points
-
Cable Distance: RS485 1,200 m at 38,400 baud
-
Power: 24 VDC from rack backplane, 10 W max
-
Isolation: 500 V channel-to-channel and channel-to-ground
-
Operating Temperature: –40 °C to +70 °C
-
Protection: IP67 front when door closed
-
Dimensions: 230 × 89 × 32 mm
-
Weight: 1.36 kg
Detailed content
Functional Features:
-
Configurable Modbus register utility for custom data maps
-
Simultaneous multi-master connections (serial + Ethernet)
-
Alarm event packets with time stamp (1 ms resolution)
-
Firmware flash via USB or Ethernet without rack shutdown
-
SIL 2 suitable for safety-related data links
Application Scenarios:
-
Exporting turbine shaft vibration to plant DCS for closed-loop load control
-
Writing compressor suction temperature set-points from operator HMI
-
Broadcasting fan motor current to plant-wide energy management system
-
Interfacing 3500 alarms to safety PLC for emergency shutdown voting
