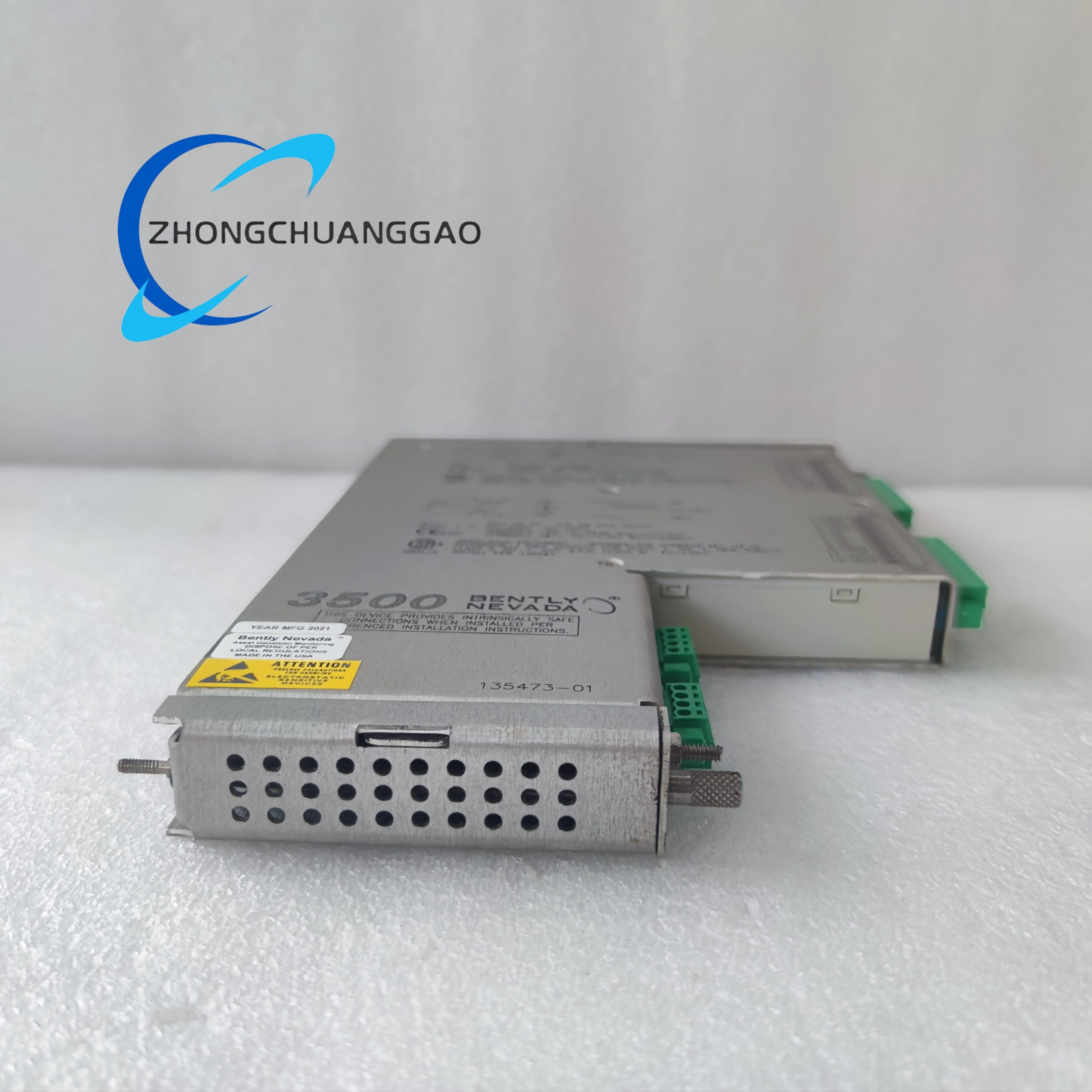

Bently Nevada 3500/70M 135473-01 Reciprocating Compressor Monitor Module
Technical Specifications:
-
Channels: 8 acceleration, 2 pressure, 2 Keyphasor®, 2 auxiliary
-
Frequency Range: 0.5 Hz – 10 kHz
-
Sampling: 51.2 kHz simultaneous
-
Measurement Types: Peak, RMS, crank-angle domain, p-V diagram
-
Alarms: Valve leakage, rider-band wear, liquid slug, overspeed
-
Isolation: 500 V
-
Power: 12 W
-
Operating Temperature: 0 °C to +65 °C
Detailed content
Functional Features:
-
Automatic cylinder-by-cylinder health index
-
Crank-angle resolved spectra for valve fault isolation
-
Integrates with System 1® for automated compressor performance reports
-
SIL 2 capable for high-pressure shutdown functions
Application Scenarios:
-
Natural gas transmission compressor stations
-
Refinery hydrogen recycle compressors
-
Ethylene plant cracked-gas compressors
-
FPSO vapor recovery units
