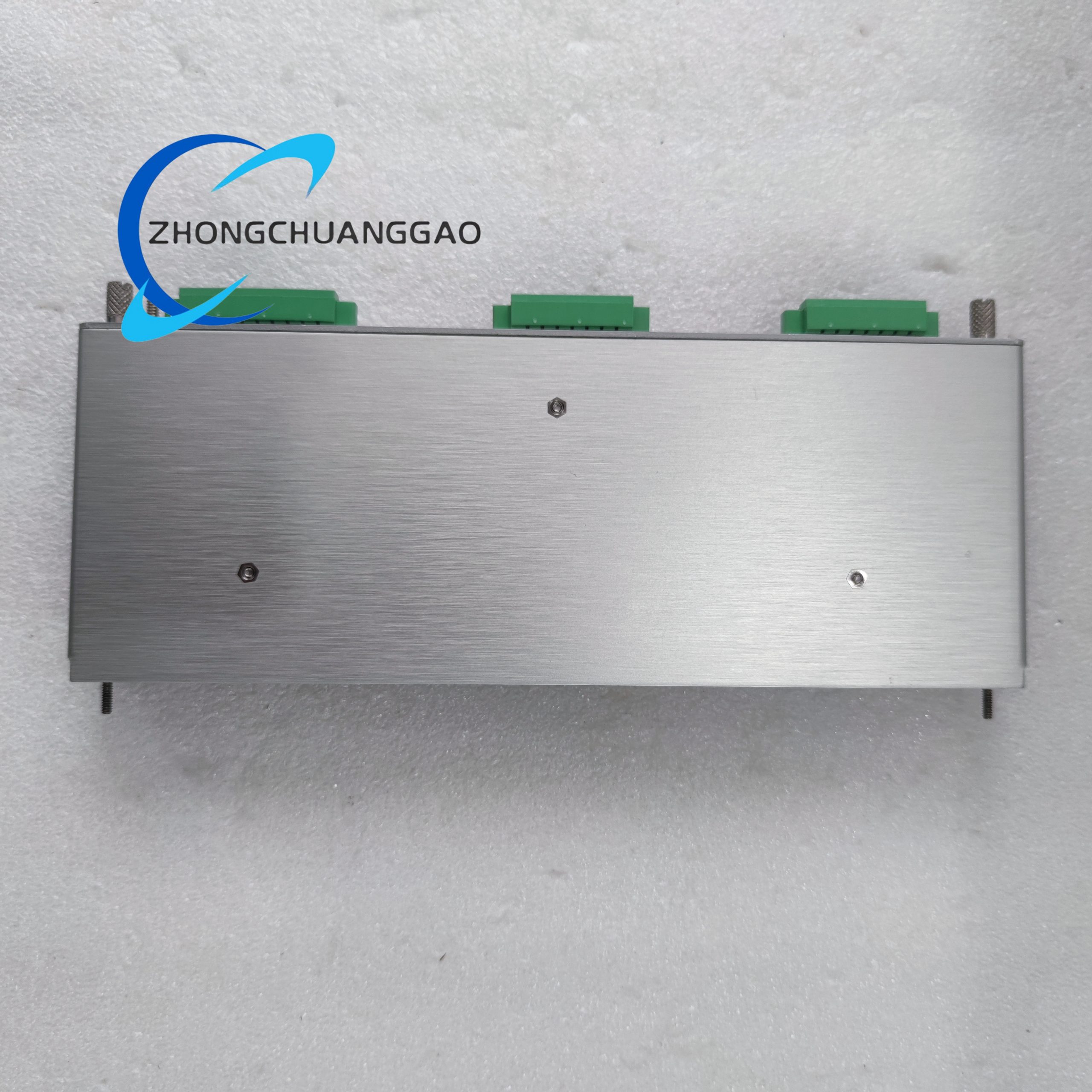

Bently Nevada 3500/60 135137-01 Temperature Monitor Module
Technical Specifications:
-
Input Types: 3-wire RTD Pt100, thermocouple J, K, E, T, N
-
Accuracy: ±0.5 °C for RTD, ±1 °C for TC
-
Resolution: 0.1 °C
-
Update Rate: 1 s per channel
-
Alarms: Two level-plus-rate-of-change per channel
-
Outputs: Optional 4-20 mA isolated, 500 Ω max
-
Isolation: 300 V channel-to-channel
-
Power: 5 W
-
Operating Temperature: 0 °C to +65 °C
Detailed content
Functional Features:
-
Automatic sensor break detection
-
Cold-junction compensation for thermocouples
-
Programmable alarm voting with other 3500 modules
-
SIL 2 suitable for bearing overtemperature protection
Application Scenarios:
-
Motor stator winding hotspot detection
-
Bearing pad temperature trending in large turbines
-
Compressor inter-stage gas temperature monitoring
-
Gearbox oil temperature alarm and shutdown
