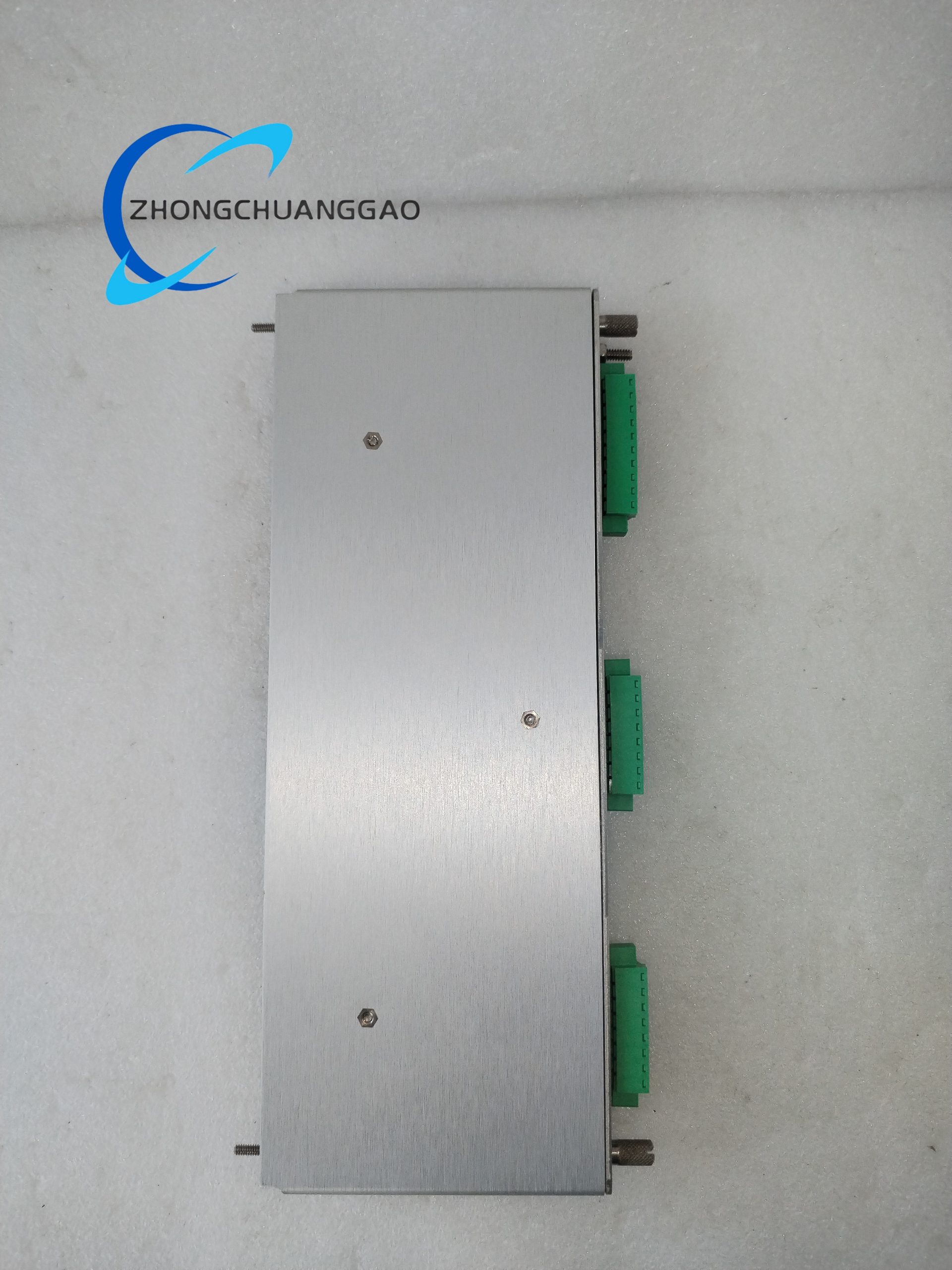

Bently Nevada 3500/42 140471-01 Prox/Velom I/O Module with Internal Terminations
Technical Specifications
-
Channels: 4 independent, software-configurable Prox or Velom
-
Input Range: ±10 V differential
-
Frequency Response: 0 Hz – 10 kHz
-
Resolution: 16-bit Σ-Δ ADC
-
Accuracy: ±0.1 % voltage, ±0.2 % current
-
Isolation: 1,500 V DC channel-to-ground
-
Output: Digital to backplane + optional 4-20 mA per channel
-
Power: 24 VDC from rack, 10.5 W max
-
Operating Temperature: –40 °C to +85 °C
Detailed content
-
Protection: IP20 (rack), 96 h salt-mist qualified
-
Dimensions: 241 × 24 × 99 mm, 1.2 kg
-
Agency Approvals: CE, UL, ATEX Zone 2 option
Functional Features
-
Hot-swappable without rack shutdown
-
Front LEDs for OK, TX/RX, Bypass and alarm status
-
Millisecond alarm propagation to 3500/32 relay module
-
Automatic sensor OK and gap voltage checks
-
Field-calibration through 3500 software wizard
Application Scenarios
-
Gas-turbine shaft vibration and thrust position protection
-
Refinery hydrogen recycle compressor rider-band wear trending
-
Offshore FPSO main generators with salt-laden atmospheres
-
Paper-machine roll eccentricity measurement for calender quality
