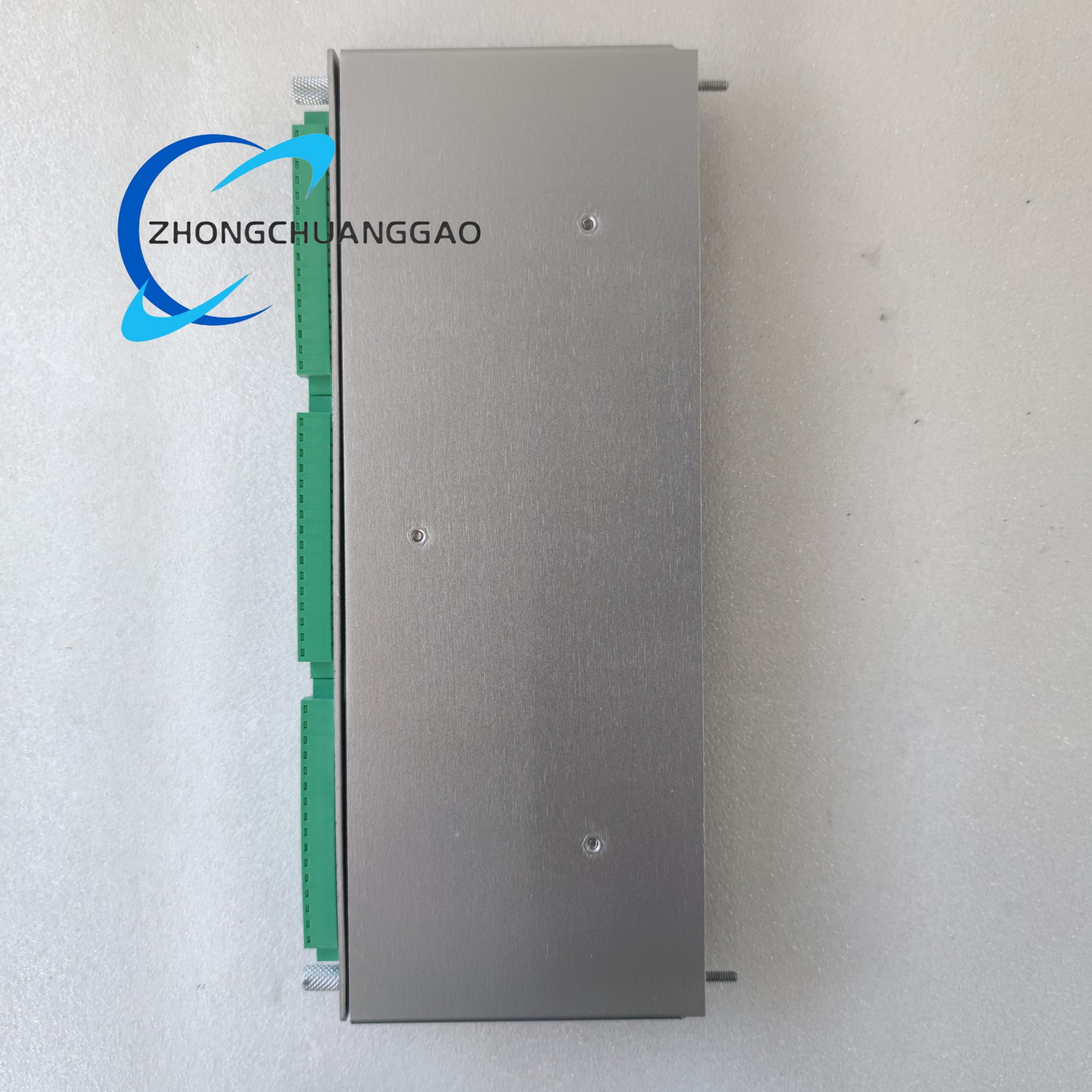

Bently Nevada 3500/34 149992-01 TMR Relay Module – Triple Modular Redundant
Technical Specifications
-
Architecture: 3 × 8 relays, voted 2oo3
-
Contact Rating: 5 A @ 250 VAC, 5 A @ 30 VDC
-
Operate Time: <15 ms
-
SIL Rating: SIL 3 / PL-e
-
Diagnostics: Continuous coil and contact monitoring
-
Power: 10 W
-
Operating Temperature: –30 °C to +65 °C
-
Weight: 1.2 kg
Detailed content
Functional Features
-
Automatic discrepancy alarm on relay disagreement
-
Contact wear trending
-
Redundant 24 VDC coil supplies
-
Hot replacement of individual relay boards
Application Scenarios
-
Nuclear plant primary coolant pump protection
-
Offshore platform fire-and-gas ESD loops
-
High-pressure hydrogen compressors
-
SIL 3 rated steam-turbine overspeed bolts
