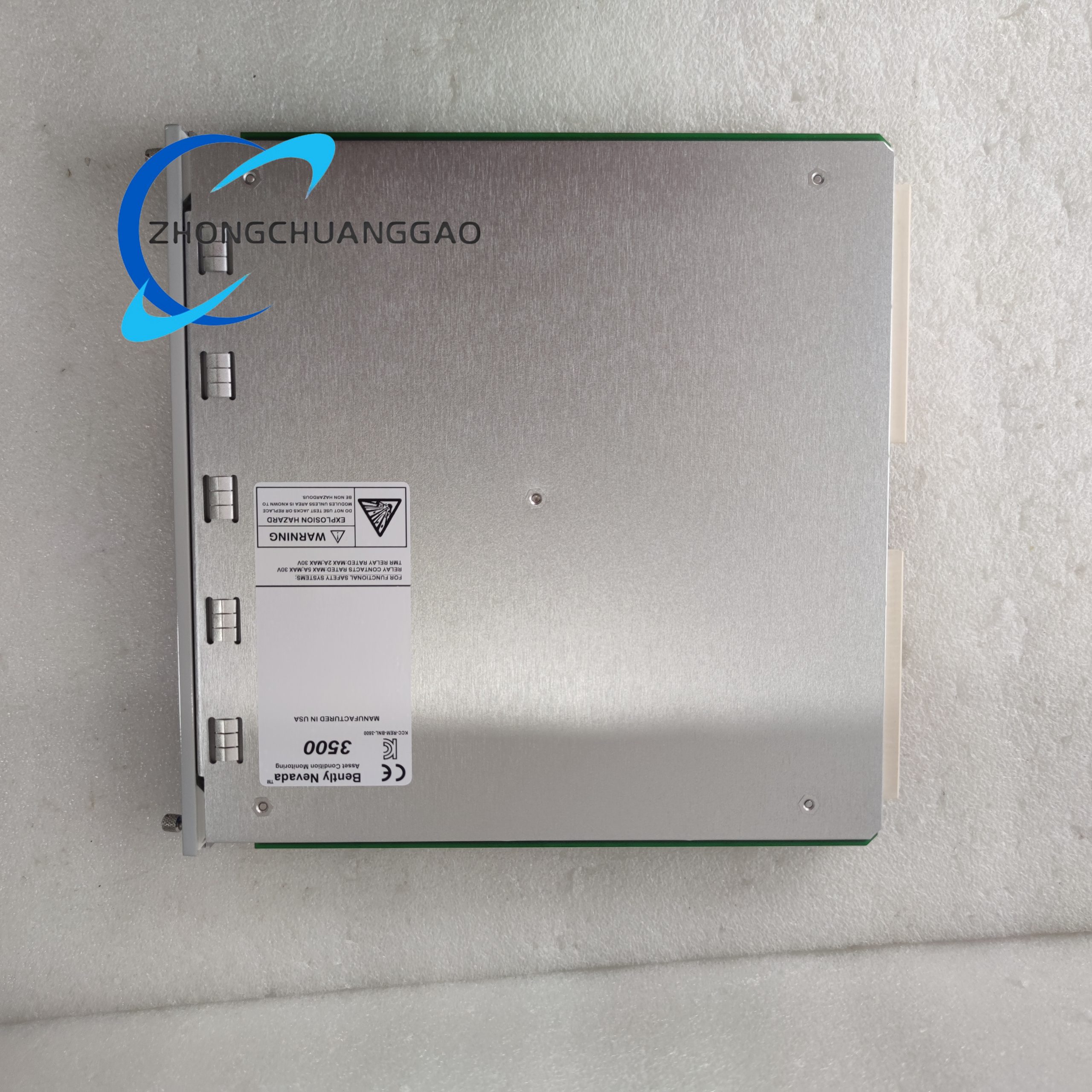

Bently Nevada 3500/33 149986-02 16-Channel Relay Module with SIL 2
Technical Specifications
-
Relay Type: SPDT, 5 A @ 250 VAC, 5 A @ 30 VDC
-
Operate Time: <10 ms
-
Isolation: 1,500 V coil-to-contact
-
Voting Logic: AND, OR, 2oo3, user-defined
-
SIL Rating: SIL 2 / PL-d per IEC 61508
-
Power: 6 W
-
Operating Temperature: –30 °C to +65 °C
-
Dimensions: Full-height 3500 slot
-
Weight: 0.7 kg
Detailed content
Functional Features
-
LED per relay indicating coil energised
-
Relay test push-button on front panel
-
Fail-safe mode selection
-
Hot-swappable replacement
Application Scenarios
-
Gas-turbine fuel-trip solenoid actuation
-
Compressor suction valve emergency closure
-
High-pressure pump motor contactor drop-out
-
Plant fire-gas system integration
