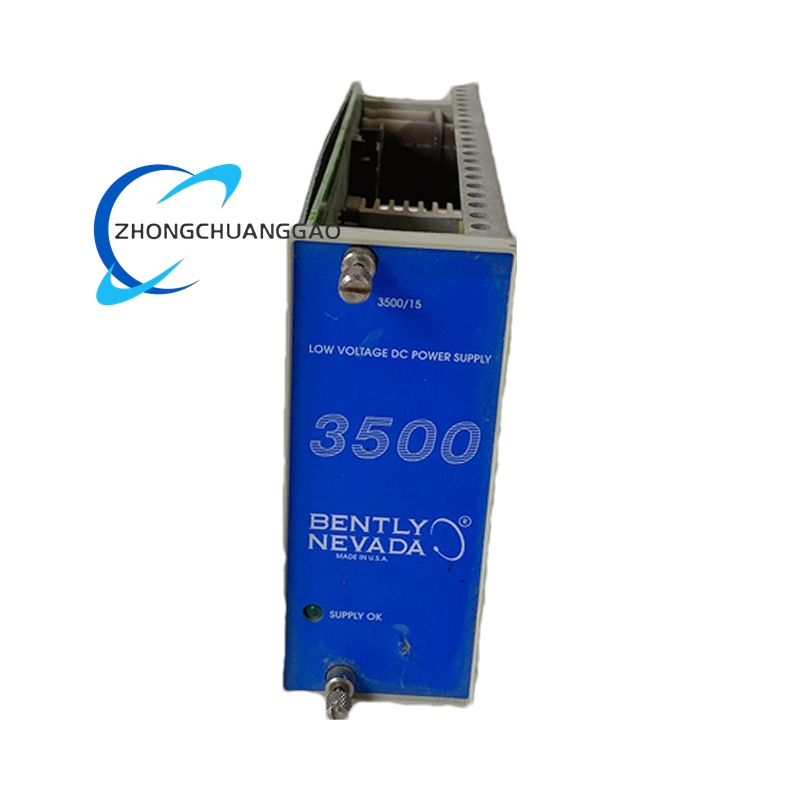

BENTLY NEVADA 3500/15 133292-01 LOW-VOLTAGE DC POWER MODULE
1. Technical Specifications
• Input voltage range: 20 – 30 VDC
• Regulated output: +24 VDC ±1 %, up to 10 A continuous
• Efficiency: > 85 % at full load
• Isolation: 500 VDC input-to-output
• Ripple & noise: < 50 mV p-p (20 MHz BW)
• Hold-up time: 20 ms @ 24 V, 10 A load
• Operating temperature: −30 °C to +65 °C
• Storage temperature: −40 °C to +85 °C
• Relative humidity: 0 – 95 % non-condensing
• Vibration: 5 g rms, 10 – 2 000 Hz
• Shock: 20 g, 11 ms half-sine
• Dimensions: 120.7 mm H × 50.8 mm W × 251.5 mm D
• Weight: 1.39 kg
• Cooling: natural convection within 3500 rack airflow
• Protection: over-current, over-voltage, short-circuit, thermal shutdown, automatic restart
• Hot-swap capability: supported in redundant configuration
• LED indicators: green “Supply OK”, red “Fault”
Detailed content
2. Functional Highlights
• Half-height plug-in module for left-side power slots of any 3500 rack
• Provides isolated 24 VDC rail to all rack modules, sensors, and barrier I/O
• Dual-module redundancy: primary/backup units auto-switch within < 1 ms on failure
• Remote sense lines maintain accurate output at load terminals
• Inhibit input allows external contact to disable output for maintenance
• Built-in self-test verifies output regulation and temperature limits
• Conformal-coated PCB for harsh environments
• UL/CE/CSA marked, ATEX/IECEx Zone 2 certified versions available
• Half-height plug-in module for left-side power slots of any 3500 rack
• Provides isolated 24 VDC rail to all rack modules, sensors, and barrier I/O
• Dual-module redundancy: primary/backup units auto-switch within < 1 ms on failure
• Remote sense lines maintain accurate output at load terminals
• Inhibit input allows external contact to disable output for maintenance
• Built-in self-test verifies output regulation and temperature limits
• Conformal-coated PCB for harsh environments
• UL/CE/CSA marked, ATEX/IECEx Zone 2 certified versions available
3. Application Scenarios
• Continuous machinery protection in oil & gas production facilities (compressors, pumps, turbines)
• Vibration monitoring on steam & gas turbines in power plants
• Critical rotating equipment in petrochemical refineries and LNG terminals
• Paper machine drives and dryer rolls in pulp & paper mills
• Large fans, blowers, and centrifuges in water treatment plants
• Extruders, mixers, and conveyors in mining & metals processing
• Any 3500-series installation where uninterrupted DC power is mandatory for asset health monitoring
• Continuous machinery protection in oil & gas production facilities (compressors, pumps, turbines)
• Vibration monitoring on steam & gas turbines in power plants
• Critical rotating equipment in petrochemical refineries and LNG terminals
• Paper machine drives and dryer rolls in pulp & paper mills
• Large fans, blowers, and centrifuges in water treatment plants
• Extruders, mixers, and conveyors in mining & metals processing
• Any 3500-series installation where uninterrupted DC power is mandatory for asset health monitoring
4. Installation & Redundancy
• Slides into dedicated power slots at rear left of 3500 rack; captive screws secure module
• Requires 0.8 N·m torque on power lugs; accepts 12 AWG max wire size
• Dual-supply wiring: lower slot = primary, upper slot = backup; both units share load in parallel during normal operation
• Uses 133300-01 Power Input Module (PIM) for AC/DC front-end conditioning if 20–30 VDC source is not available
• Fuse replacement: 01720045 (5 A, 250 V, fast-acting) accessible without removal of module
• Firmware and calibration data stored on-board; no external PROM required
• Slides into dedicated power slots at rear left of 3500 rack; captive screws secure module
• Requires 0.8 N·m torque on power lugs; accepts 12 AWG max wire size
• Dual-supply wiring: lower slot = primary, upper slot = backup; both units share load in parallel during normal operation
• Uses 133300-01 Power Input Module (PIM) for AC/DC front-end conditioning if 20–30 VDC source is not available
• Fuse replacement: 01720045 (5 A, 250 V, fast-acting) accessible without removal of module
• Firmware and calibration data stored on-board; no external PROM required
5. Ordering & Package
• Part number: 3500/15 133292-01
• Included: power module, extraction handle, two rack screws, multilingual safety manual
• Compatible with all 3500/05 racks and 3500/20 rack interface modules
• Optional accessories: redundant mate module, PIM AC/DC converter, DIN-rail 24 VDC bulk supply, vibration-resistant mounting kit
• Part number: 3500/15 133292-01
• Included: power module, extraction handle, two rack screws, multilingual safety manual
• Compatible with all 3500/05 racks and 3500/20 rack interface modules
• Optional accessories: redundant mate module, PIM AC/DC converter, DIN-rail 24 VDC bulk supply, vibration-resistant mounting kit
