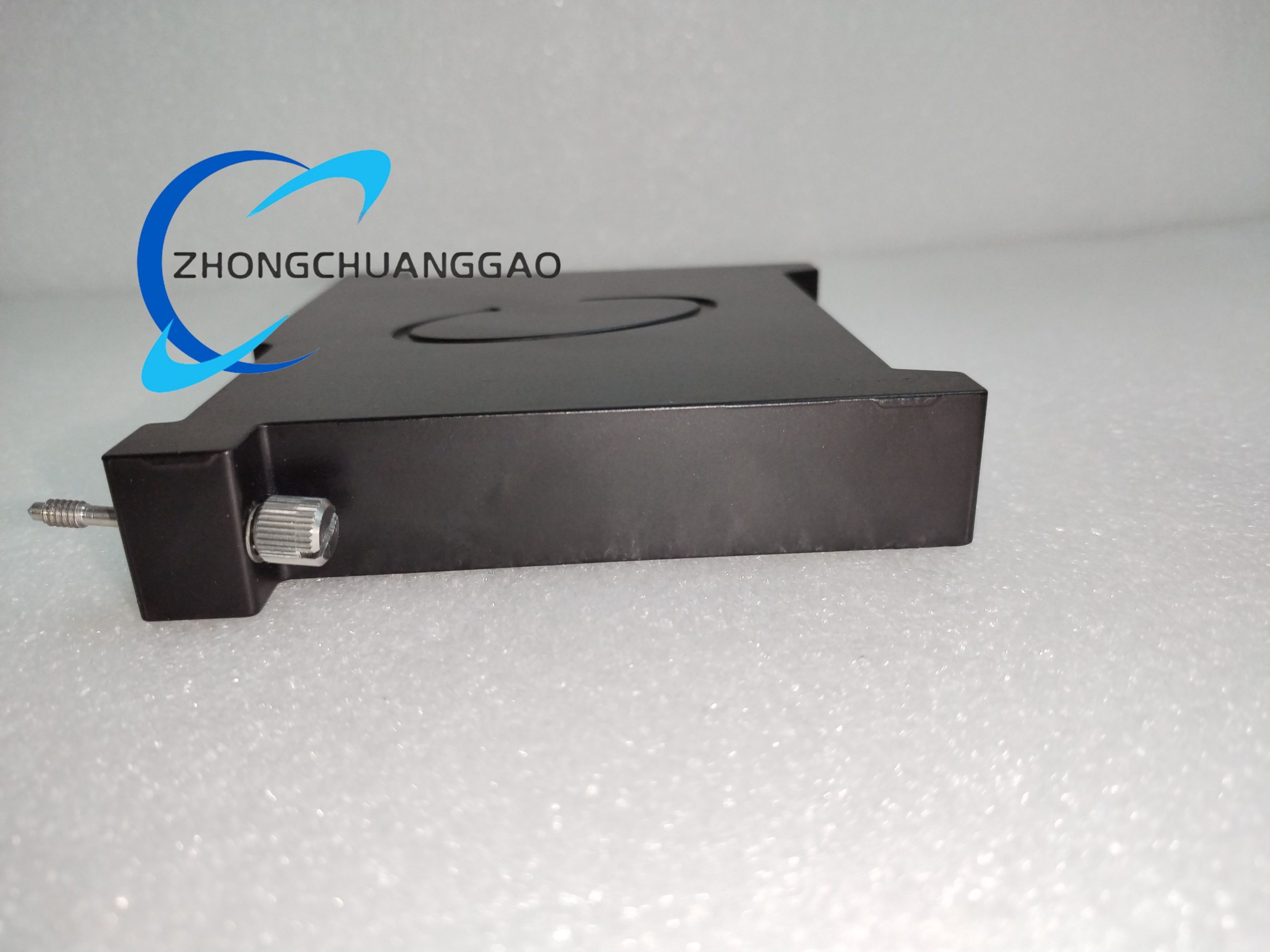

Bently Nevada 1701/15 FieldMonitor Proximitor Input Monitor
Technical Specifications:
-
Channels: 2
-
Input: –24 VDC Proximitor or 0-10 V from external I/O module
-
Measurement Types: Shaft relative radial vibration, axial thrust position, radial gap
-
Frequency Response: 0.1 Hz – 1 kHz
-
Sampling Rate: 50 Hz
-
Outputs: 4-20 mA per channel, dual SPDT relays, RS-485 Modbus RTU, optional Ethernet
-
Accuracy: ±0.5 % full scale
-
Power Supply: 24 VDC (19-33 V), 50 mW typical
-
Operating Temperature: –40 °C to +70 °C
-
Protection: IP67 cast-aluminium housing
-
Dimensions: 94 × 94 × 58 mm
-
Weight: 0.35 kg
Detailed content
Functional Features:
-
Embedded self-test verifies sensor, cable and monitor integrity
-
Front LEDs for OK, Alert, Danger, Relay status
-
DIN-rail or direct mount on machine casing
-
Integrates with 170180-01-xx I/O modules for accelerometer or velocity inputs
-
HART pass-through for handheld communicator
Application Scenarios:
-
Cooling-tower fan motor bearing vibration
-
Small steam-turbine thrust-collar position
-
Centrifugal pump radial vibration where no protection rack exists
-
Offshore wellhead platforms with space and power constraints
