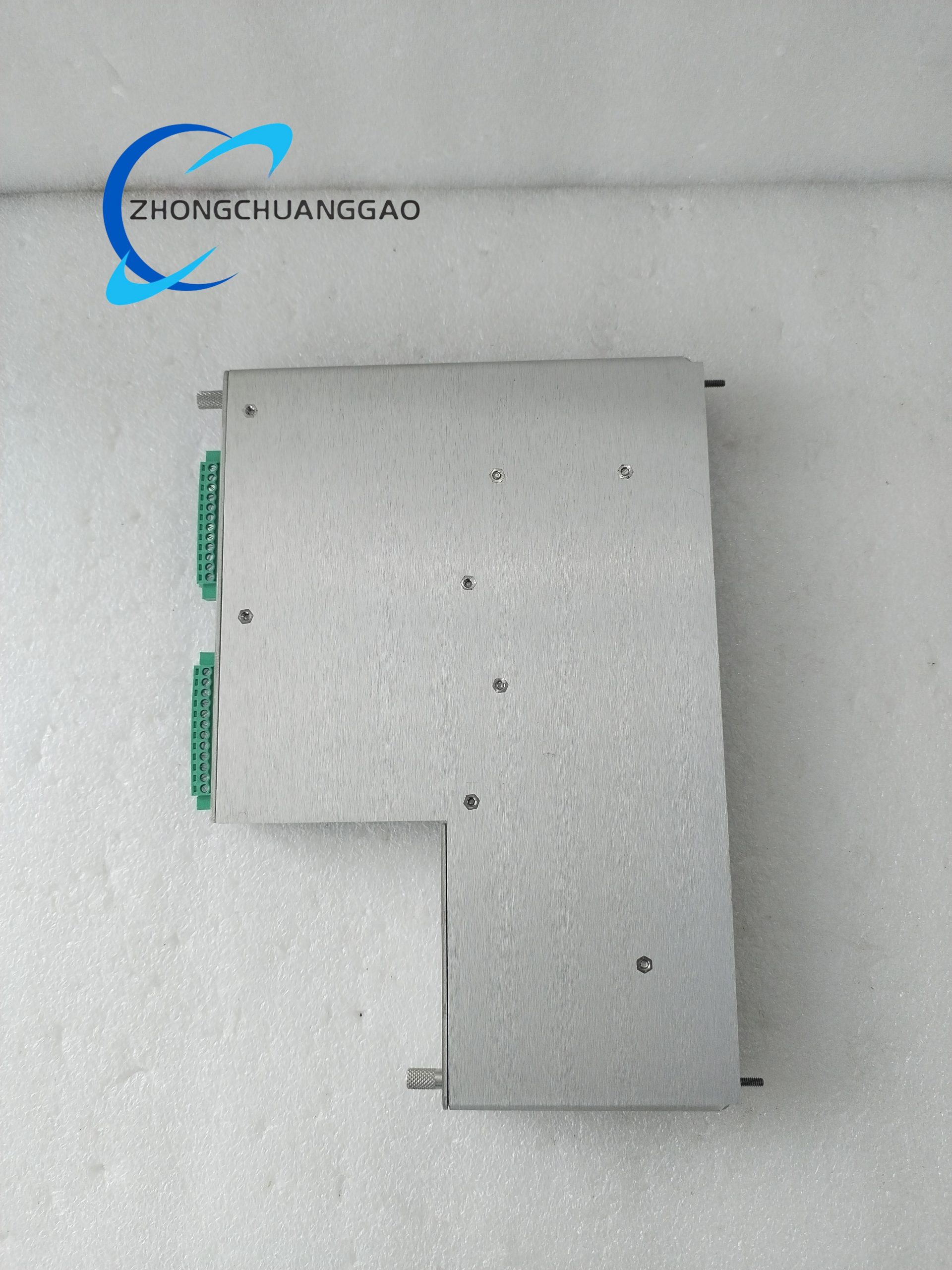

Bently Nevada 13677-01 3500/05 Instrument Rack Power-Supply Module
Technical Specifications:
-
Input: 85 – 264 VAC, 47 – 440 Hz
-
Outputs: +24 VDC @ 4 A, +5 VDC @ 10 A, ±12 VDC @ 1 A
-
Hold-up Time: 20 ms at full load
-
Efficiency: 85 %
-
Parallel Operation: Load-sharing with second supply
-
Protection: Over-voltage, over-current, thermal shutdown
-
Temperature: 0 °C to +65 °C
-
Cooling: Internal fan, front-to-airflow
Detailed content
Functional Features:
-
Auto-select input voltage worldwide
-
Front-panel LEDs indicate supply health and redundancy status
-
Insertion under power without disrupting measurement or trip relays
-
Conformal-coated boards for humid environments
Application Scenarios:
-
3500 machinery protection racks in turbines, compressors, hydro-generators
-
Upgrades where uninterrupted protection during maintenance is mandatory
-
Installations with unreliable plant DC supplies requiring AC feed
