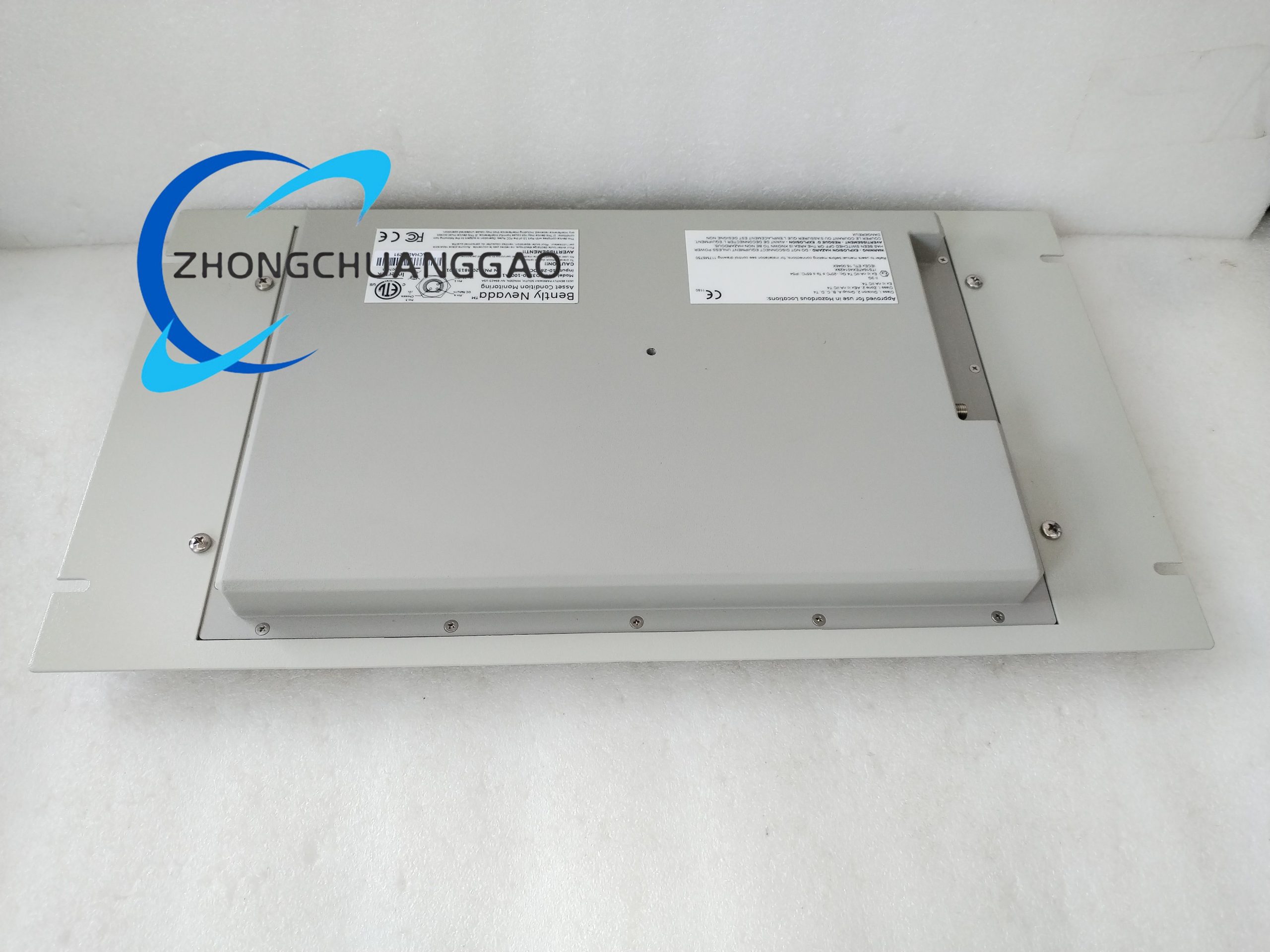

Bently 3500/94M Enhanced System Display
Technical Specifications:
-
Display: 15.6-inch TFT colour, 1280 × 800 pixels
-
Touch: Projected capacitive, multi-touch
-
Processor: 1.6 GHz quad-core ARM Cortex-A72
-
Memory: 4 GB RAM, 32 GB eMMC
-
Communication: Gigabit Ethernet, USB 3.0, RS-485
-
Protocols: Modbus TCP, OPC UA, HTTP REST, VNC server
-
Power: 24 VDC, 25 W max
-
Operating Temperature: –20 °C to +60 °C
-
Approvals: CE, UL, ATEX Zone 2, SIL 2 capable
Detailed content
Functional Features:
-
Drag-and-drop trend cursors
-
Live spectral cascade plots
-
Video replay of transient events with time sync
-
Multi-language UI (12 languages)
-
Same rack-slot occupancy as 3500/93
Application Scenarios:
-
Central control room – operators navigate spectra with finger gestures
-
Customer acceptance tests – visual confirmation of vibration levels during turbine run-up
