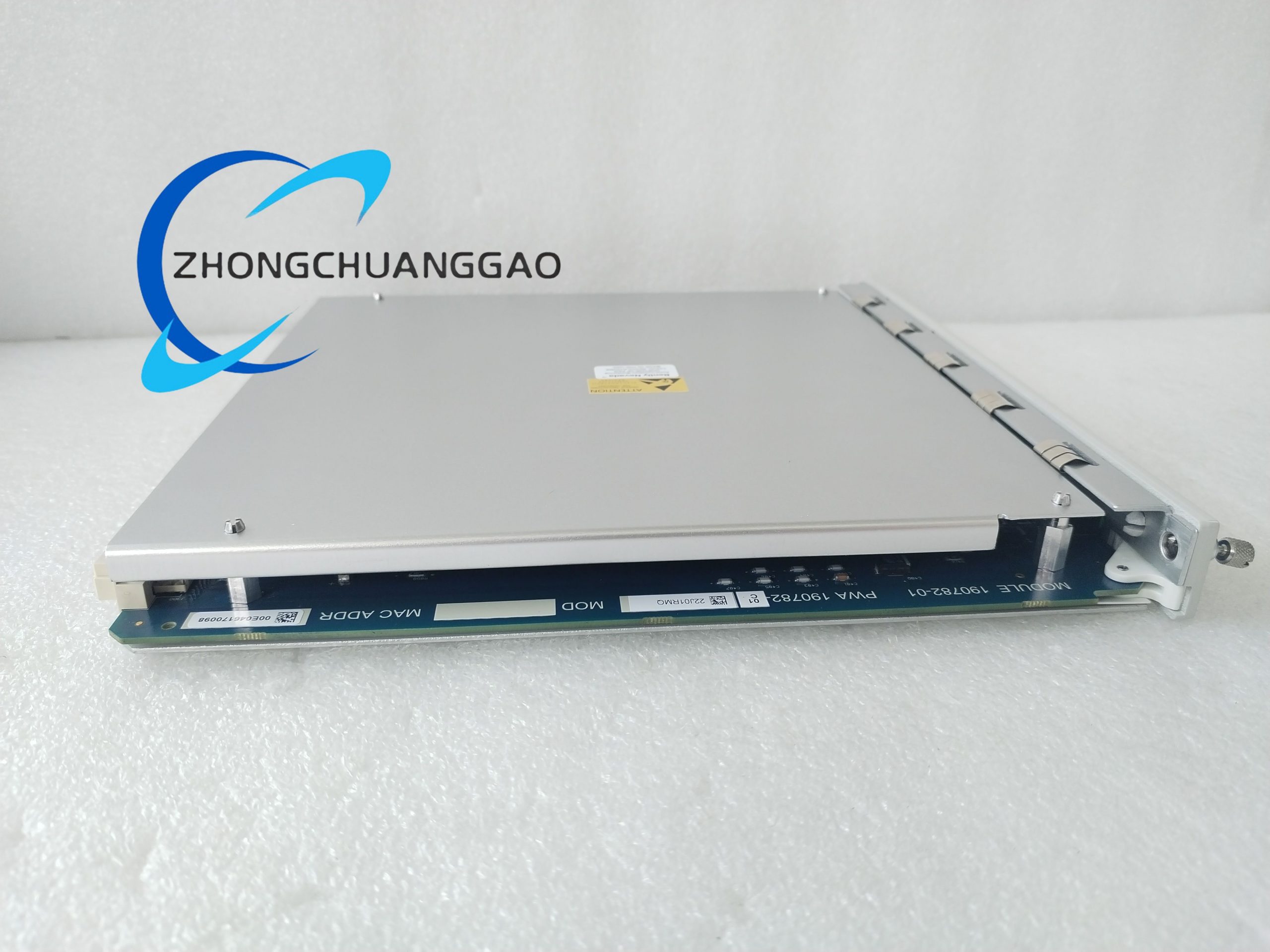

Bently 3500/91 EGD Communication Gateway Module
Technical Specifications:
-
Ethernet Ports: 1 × 10/100BASE-TX RJ45, auto-MDIX
-
Serial Ports: 1 × RS-232/485 isolated, 1,200–230 kbaud
-
Protocols Supported:
-
EGD v2.01 producer/consumer
-
Modbus RTU/TCP (slave)
-
BACnet/IP option
-
-
Data Update Rate: <1 s typical (rack scan dependent)
-
On-board Memory: 512 kB circular buffer for transient snapshots
Detailed content
-
Power Consumption: 5.0 W (RS-485 I/O) / 5.6 W (Ethernet I/O)
-
Operating Temperature: –20 °C to +50 °C
-
Storage Temperature: –40 °C to +70 °C
-
Dimensions:
-
Main module: 241 × 24 × 242 mm, 0.79 kg
-
I/O module: 241 × 24 × 99 mm, 0.39 kg
-
-
Agency Approvals: CE, UL, optional ATEX/IECEx
Functional Features:
-
Publishes rack, module, channel and set-point data as EGD frames
-
Accepts consumer commands (reset, trip multiply, alarm inhibit) over EGD
-
No additional software required for basic Modbus register access
-
Hot-swappable when second communication module is present
-
Firmware upgrade via USB or Ethernet without rack shutdown
Application Scenarios:
-
Exporting turbine shaft vibration to plant DCS for closed-loop load control
-
Writing compressor suction temperature set-points from operator HMI
-
Broadcasting fan motor current to plant-wide energy management system
