Technical Specifications

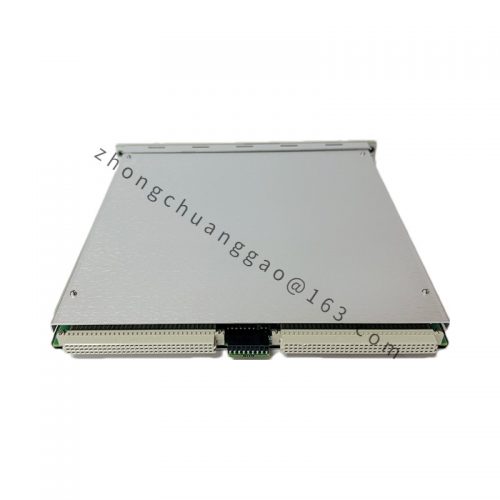

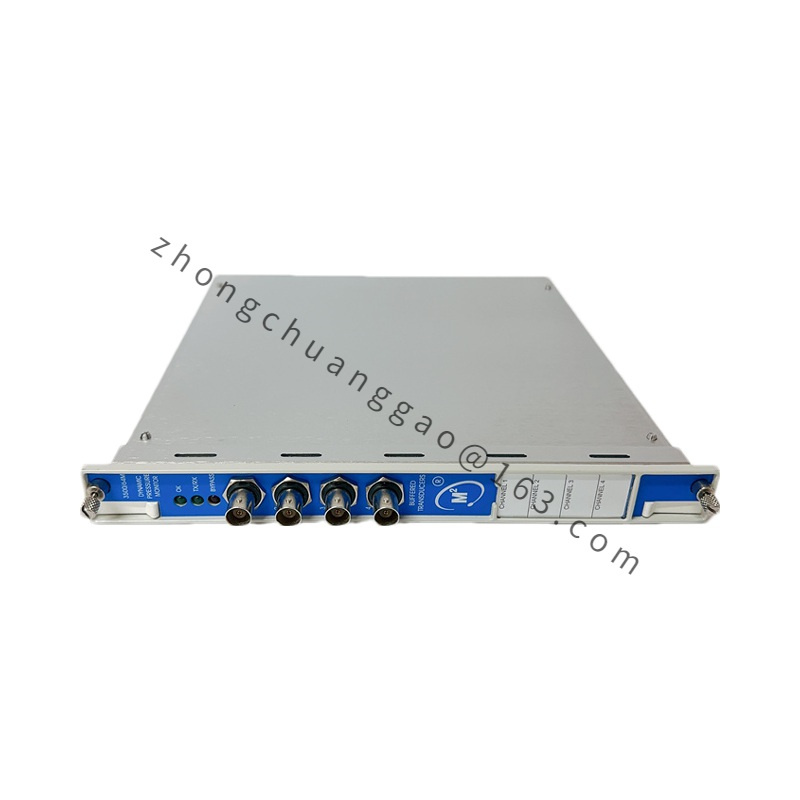

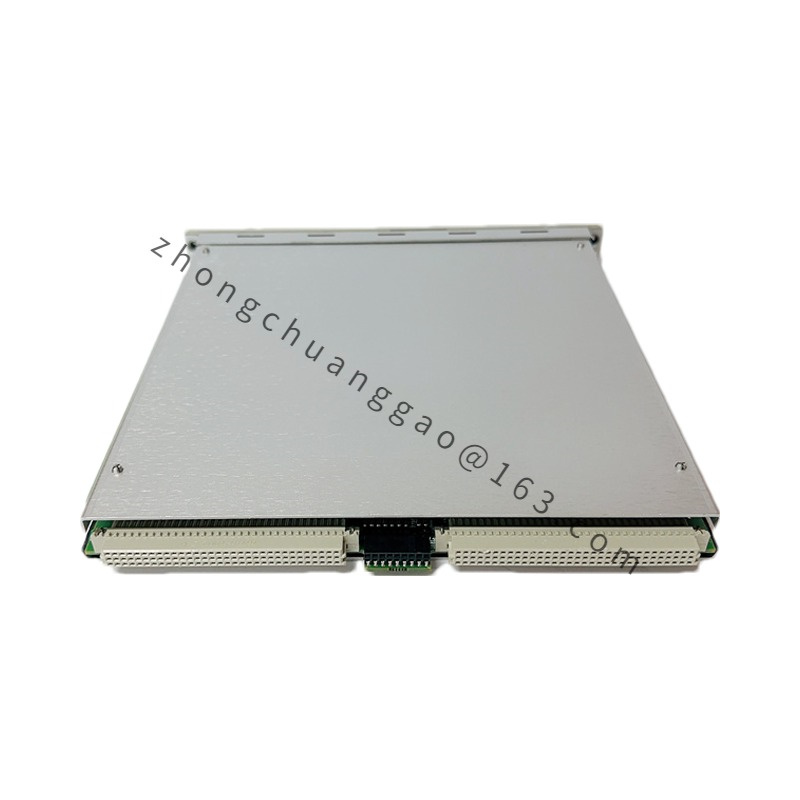

• Model Number: 3500/64M 140734-05
• Type: Vibration Monitor Module
• Power Supply: Typically 24V DC nominal
• Input Channels: Supports up to 8 channels for vibration measurements
• Output Type: Analog outputs, digital alarms, and relay contacts
• Communication Interface: Compatible with Bently Nevada 3500 Series communication protocols
• Mounting: Designed for rack-mounting within 3500 Series racks
• Dimensions: Fits standard 3500 Series racks; specific dimensions available in installation manual
• Environmental Conditions: Operates within specified temperature and humidity ranges for industrial environments

Functionality Features

• Multi-Channel Capability: Monitors up to 8 vibration signals simultaneously for comprehensive analysis.
• Real-Time Data Processing: Provides real-time monitoring and analysis of vibration data to detect anomalies and issues.
• Alarm and Shutdown: Configurable alarms and relay contacts for automatic machinery shutdown or operator notifications.
• Integration: Easily integrates with other Bently Nevada 3500 Series modules for a holistic condition monitoring system.
• Data Logging: Includes data logging features for historical trend analysis and troubleshooting.

Application Scenarios

• Industrial Machinery: Used in various industrial machinery for vibration analysis and protection.
• Power Generation: Monitors vibration in turbines, generators, and other critical rotating equipment in power plants.
• Oil and Gas: Employed in oil and gas facilities to monitor and protect rotating machinery.
• Manufacturing: Applied in manufacturing environments to ensure the health and performance of essential equipment.
