Technical Specifications

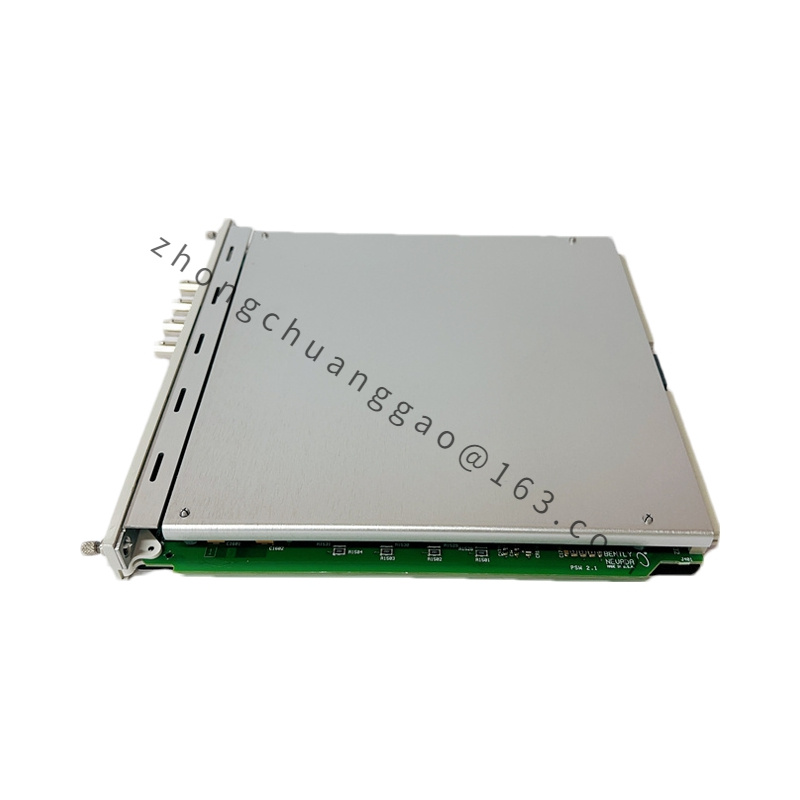

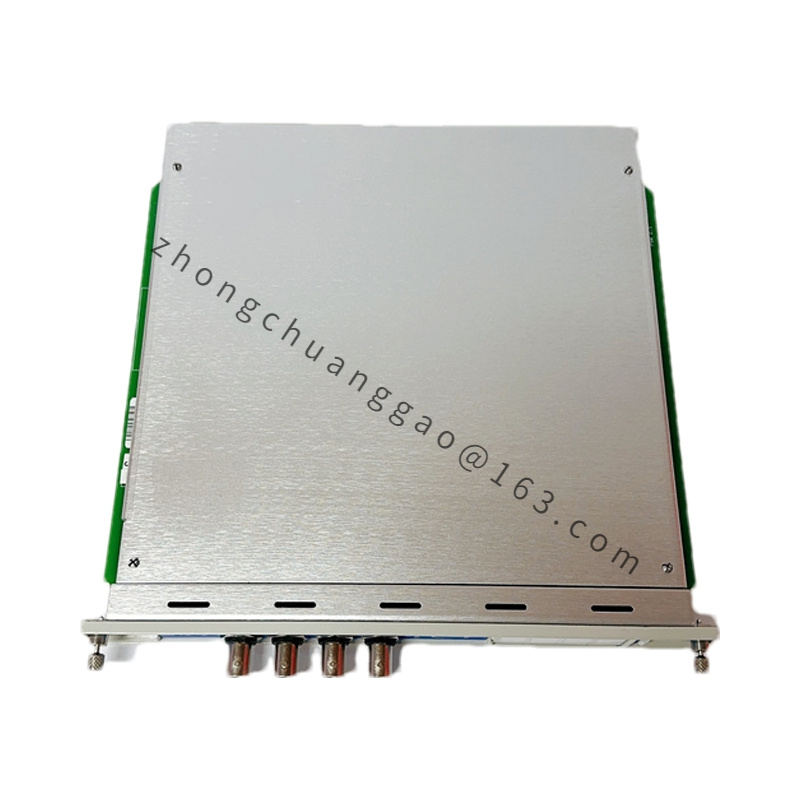

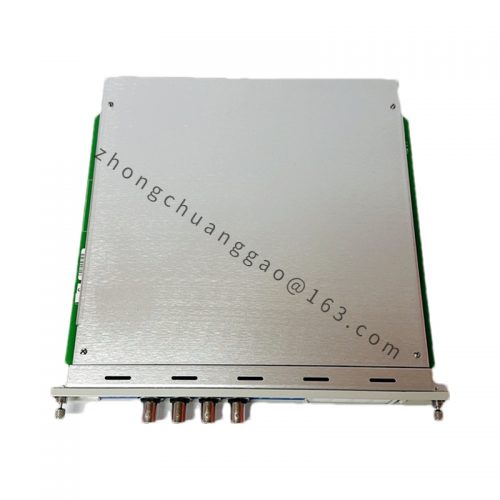

1. Model: Bently 3500/64M 140734-05
2. Type: 4-Channel Displacement Monitoring Module
3. Channels: Supports four channels, enabling the simultaneous monitoring of up to four displacement sensors.
4. Measurement Range: Designed to measure displacement with high accuracy, typically in micrometers. The specific measurement ranges depend on the configuration and sensors used.
5. Output Signal:
   • Analog Outputs: Provides analog outputs (commonly 4-20 mA) for displacement measurements.
   • Relay Outputs: Includes relay outputs for alarm conditions, which activate when displacement exceeds predefined thresholds.
6. Frequency Response: Capable of measuring a broad range of frequencies, suitable for various industrial applications. Detailed frequency response characteristics are provided in the datasheet.
7. Operating Temperature Range: Generally operates within a temperature range of -40°C to +70°C (-40°F to +158°F), making it suitable for various industrial environments.
8. Protection Rating: Typically features an IP20 rating, offering protection against dust and accidental contact. Specific protection details can be confirmed in the datasheet.

Features

1. Multi-Channel Capability: Monitors up to four displacement sensors simultaneously, providing comprehensive data on machinery displacement and alignment.
2. High Precision: Delivers accurate displacement measurements essential for detecting misalignment, imbalance, and other critical machinery conditions.
3. Real-Time Data Processing: Processes data in real-time to provide immediate insights and enable prompt responses to changes in machinery conditions.
4. Alarm and Diagnostic Functions: Includes alarm and diagnostic capabilities to alert operators of potential issues and assist in troubleshooting.
5. Integration with 3500 Series: Integrates seamlessly with other modules in the Bently 3500 Series, allowing for a unified approach to machinery monitoring and protection.

Application Scenarios

1. Machinery Alignment and Balancing: Ideal for monitoring displacement in rotating machinery such as turbines, compressors, and motors. Ensures proper alignment and balance, preventing damage and optimizing performance.
2. Condition Monitoring: Provides detailed data on displacement for condition monitoring of critical equipment, helping to maintain optimal performance and extend equipment life.
3. Predictive Maintenance: Supports predictive maintenance strategies by delivering precise displacement measurements that can help forecast potential issues and plan maintenance activities proactively.
4. Industrial Automation: Applied in automated systems for continuous monitoring of machinery displacement, contributing to efficient and smooth operation.

Usage Considerations

1. Installation: Proper installation is crucial for accurate measurement. Ensure that the module is correctly mounted and connected to the displacement sensors.
2. Calibration: Regular calibration may be required to maintain measurement accuracy and reliable operation.
3. System Integration: Verify compatibility with other Bently 3500 Series modules and existing monitoring systems to achieve a comprehensive and integrated monitoring solution.
