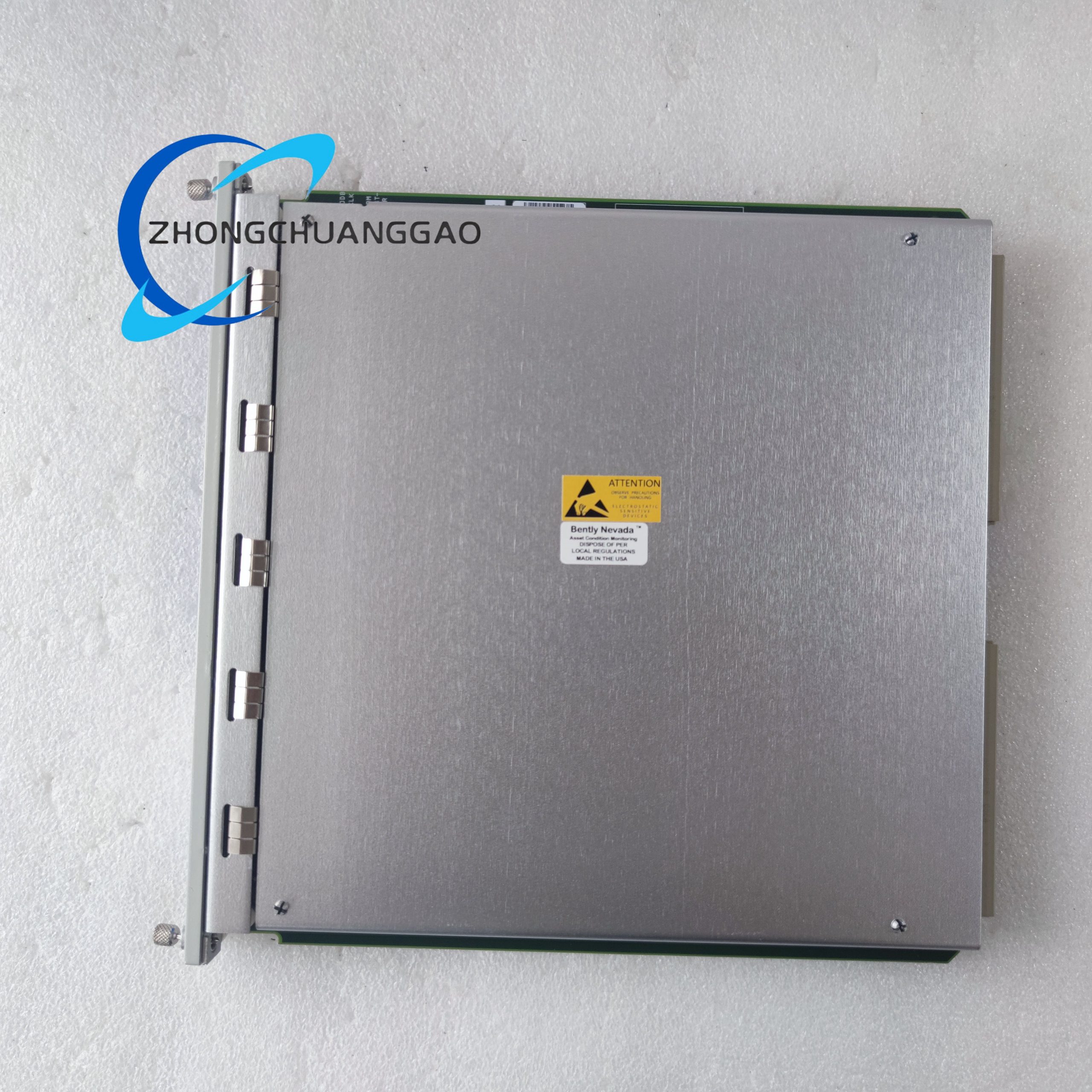

Bently 3500/60 Temperature Monitor – 6-channel, RTD/TC inputs
Product Name:
3500/60 Temperature Monitor – 6-channel, RTD/TC inputs
3500/60 Temperature Monitor – 6-channel, RTD/TC inputs
Product Introduction:
A six-channel monitor that accepts RTD and thermocouple inputs for bearing, stator and process-fluid temperature monitoring.
A six-channel monitor that accepts RTD and thermocouple inputs for bearing, stator and process-fluid temperature monitoring.
Technical Specifications:
-
Channels: 6
-
Input Types: RTD Pt100, thermocouple J, K, E, T, N
-
Accuracy: ±0.5 °C for RTD, ±1 °C for TC
-
Resolution: 0.1 °C
-
Update Rate: 1 s per channel
Detailed content
-
Alarms: Two level-plus-rate-of-change per channel
-
Outputs: Optional 4-20 mA isolated, 500 Ω max
-
Power: 5 W
-
Operating Temperature: 0 °C to +65 °C
-
Approvals: CE, UL, ATEX, IECEx, CSA
Functional Features:
-
Automatic sensor break detection
-
Cold-junction compensation for thermocouples
-
Same hot-swap capability
Application Scenarios:
-
Motor stator winding hotspot detection
-
Bearing pad temperature trending in large turbines
