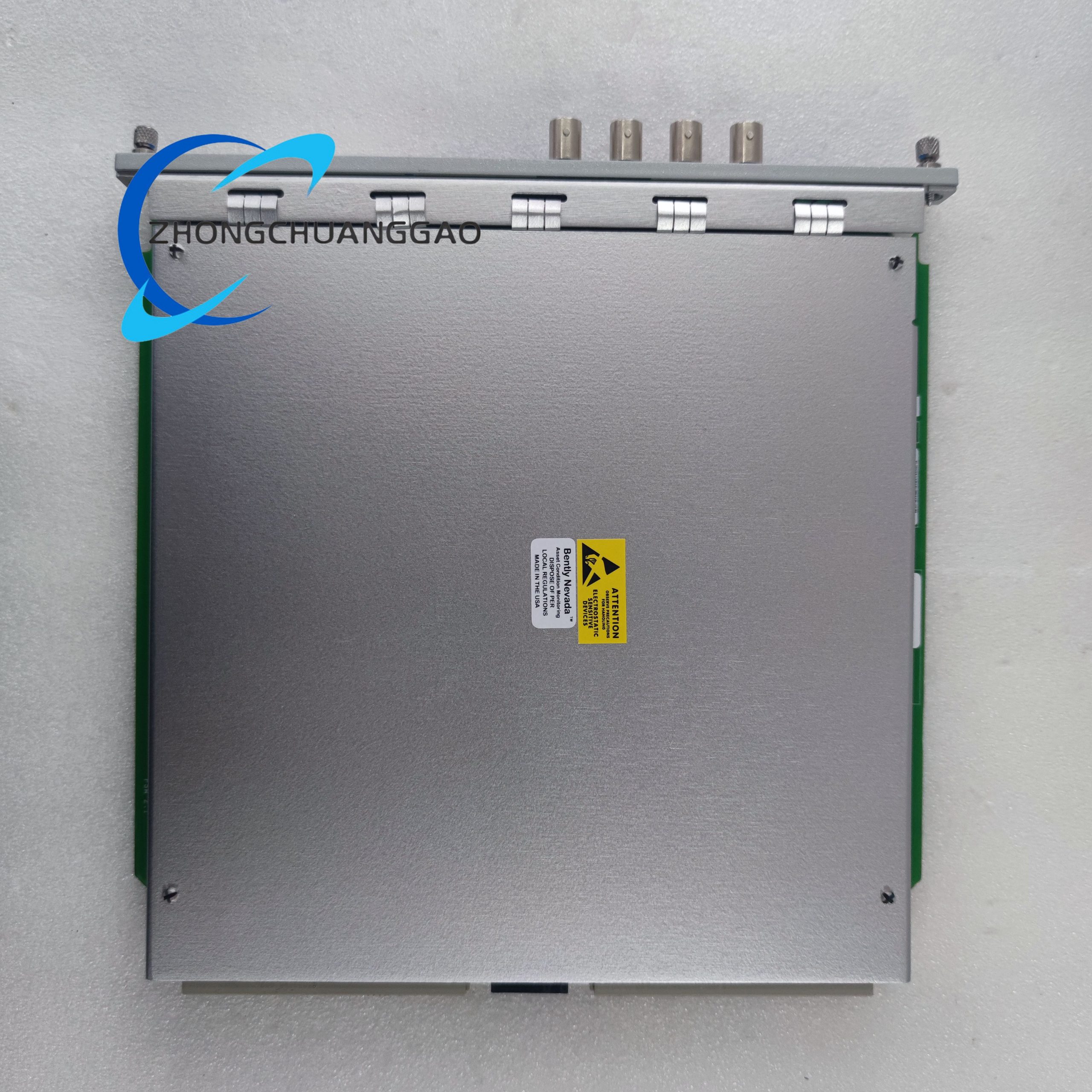

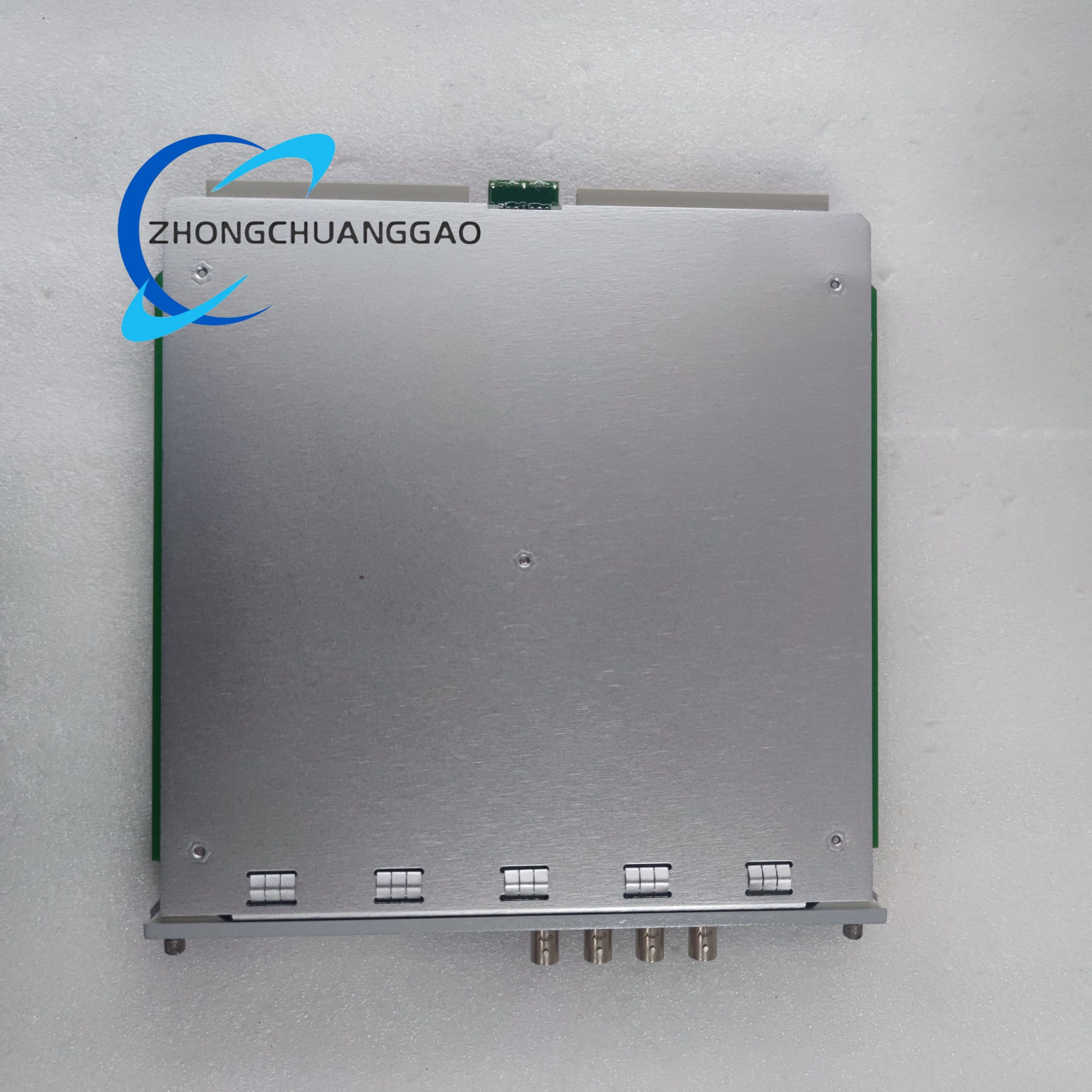

Bently 3500/46M-03-00
Product Name:
3500/46M Hydro Turbine Monitor – 8-channel, cavitation and draft-tube swirl
3500/46M Hydro Turbine Monitor – 8-channel, cavitation and draft-tube swirl
Product Introduction:
Specialist monitor for hydro-electric turbines. Combines high-frequency acceleration and low-frequency pressure inputs to detect cavitation, draft-tube swirl and runner imbalance.
Specialist monitor for hydro-electric turbines. Combines high-frequency acceleration and low-frequency pressure inputs to detect cavitation, draft-tube swirl and runner imbalance.
Technical Specifications:
-
Channels: 8 (4 acceleration, 2 pressure, 2 speed)
-
Input Types: IEPE accelerometer, 4-20 mA pressure, magnetic pickup
-
Frequency Range: 0.1 Hz – 20 kHz
-
Sampling Rate: 51.2 kHz per channel
-
Measurements: Cavitation index, draft-tube swirl intensity, runner imbalance
-
Power: 15 W
Detailed content
-
Operating Temperature: –40 °C to +85 °C
-
Approvals: CE, UL, ATEX, IECEx, CSA
Functional Features:
-
Real-time cavitation index
-
Draft-tube swirl intensity trending
-
Same hot-swap and interchangeability
Application Scenarios:
-
Hydro-turbine draft-tube swirl detection
-
Kaplan turbine blade cavitation monitoring
