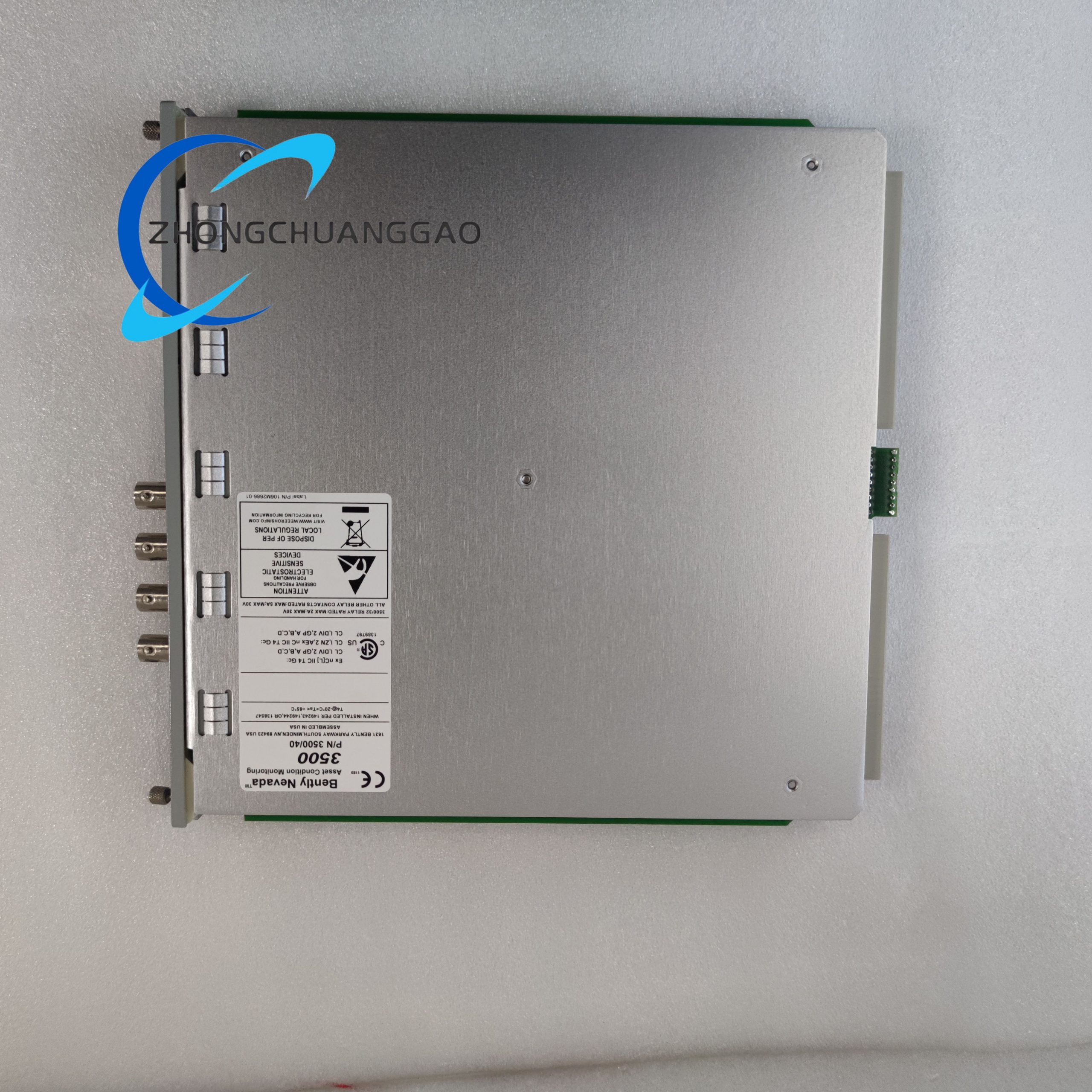

Bently 3500/40M 140734-01 Proximitor Monitor – 4-channel standard I/O multiple agency approvals
Technical Specifications:
-
Part Number: 140734-01
-
Channels: 4
-
Input: –24 VDC Proximitor
-
Frequency Response: 0.1 Hz – 10 kHz
-
Accuracy: ±0.33 % typical, ±1 % max
-
Sensitivity: 3.94 mV/µm (100 mV/mil) or 7.87 mV/µm (200 mV/mil)
-
Approvals: ATEX, IECEx, CSA
-
Power: 7.7 W
Detailed content
-
Operating Temperature: –30 °C to +65 °C
-
Dimensions: 107.9 × 76.2 × 38.1 mm
-
Weight: 0.5 kg
Functional Features:
-
Real-time monitoring with 25 ms alarm response
-
4-20 mA outputs for DCS integration
-
Same hot-swap and interchangeability
Application Scenarios:
-
Gas-turbine bearing protection – triggers fuel trip in 25 ms when vibration > 125 µm
-
Refinery hydrogen recycle compressor – 4-20 mA output to DCS for surge warning
-
Offshore FPSO main power – 24×7 pump monitoring, data uploaded via 3500/22M
