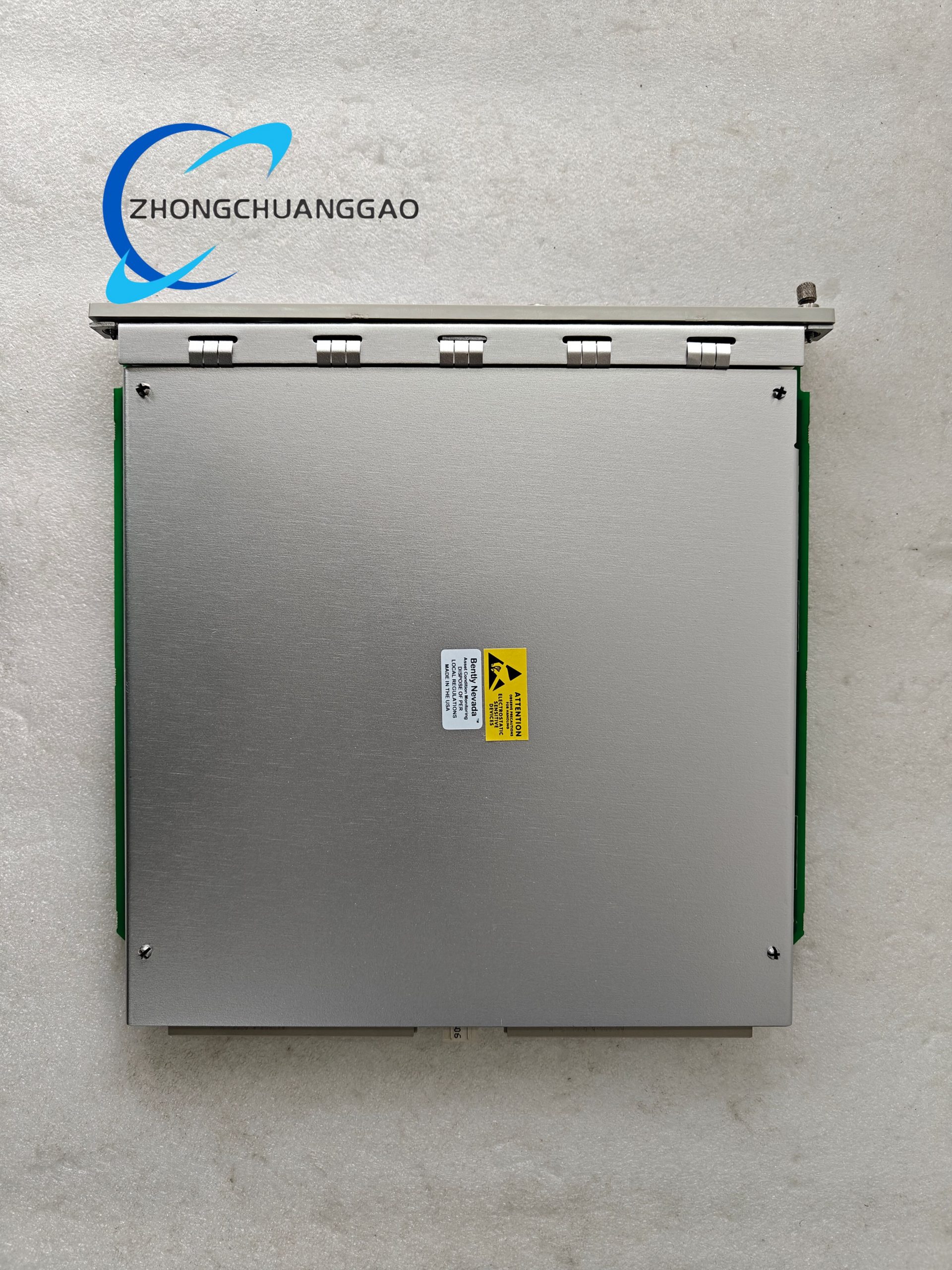

Bently 3500/20 Rack Interface Module (RIM)
Technical Specifications:
-
Communications:
-
USB 2.0 device port
-
RS-232/485 isolated, 1,200-230,400 baud
-
10/100BASE-TX Ethernet with auto-MDIX
-
-
Time Sync: IRIG-B, SNTP, PTP (IEEE-1588)
-
Data Buffer: 512 MB circular for transient capture
-
Module Slots: Supervises up to 14 monitor modules
-
Power: 24 VDC from rack, 8 W max
-
Operating Temperature: 0 °C to +65 °C
-
Isolation: 500 V channel-to-ground
-
Dimensions: Full-height 3500 slot
-
Weight: 0.5 kg
Detailed content
Functional Features:
-
Auto-discovery of inserted modules
-
Firmware flash without rack shutdown
-
Parallel streaming to five simultaneous clients
-
SIL 2 suitable for safety-related data links
Application Scenarios:
-
Main communication gateway for 3500 racks
-
Time-synchronized transient capture during turbine start-up
-
Remote rack interfacing via fiber Ethernet
