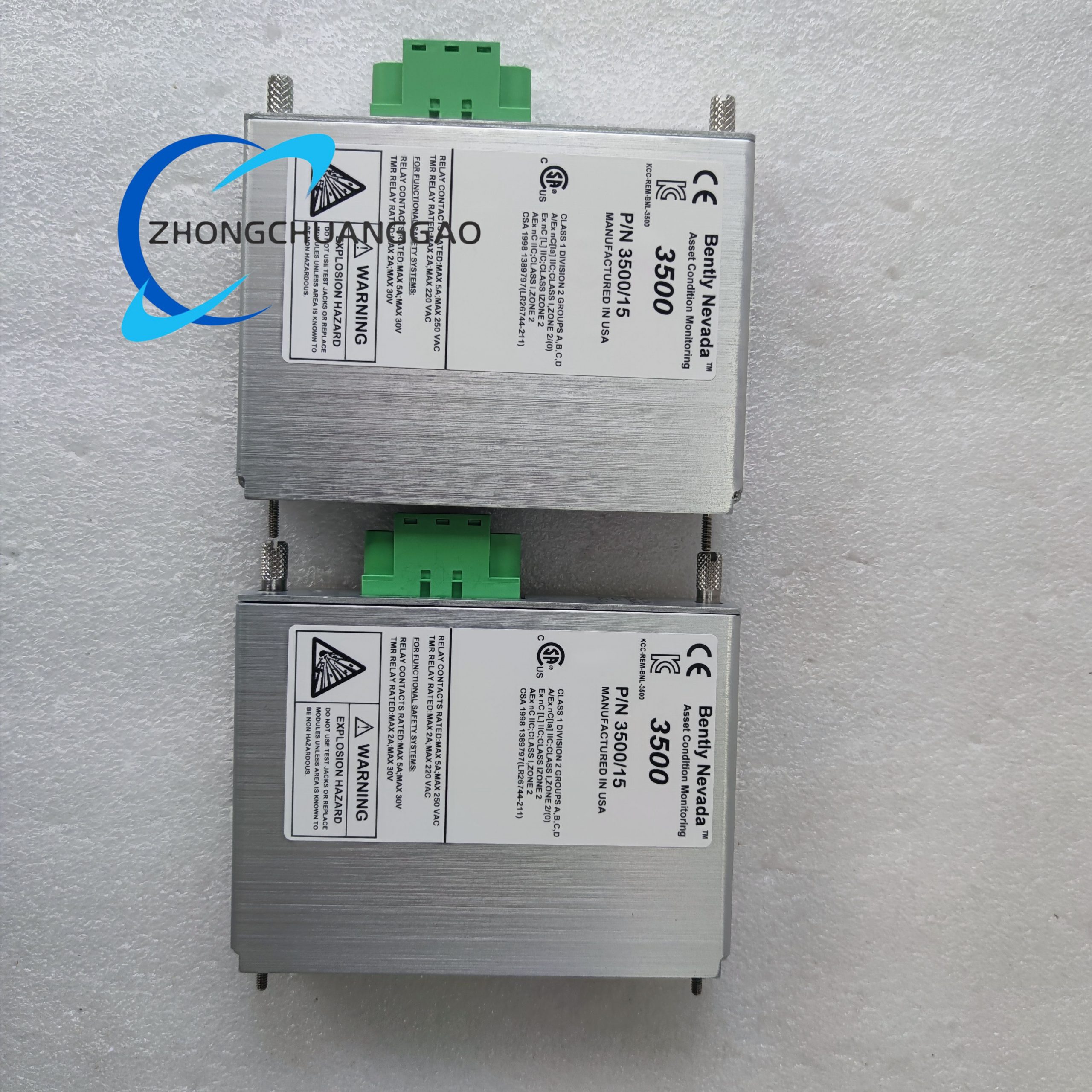

Bently 3500/15 106M1081-01
Product Introduction:
High-power version of the 3500/15 AC supply designed for heavy 3500 racks or installations where additional DC current is required. It retains the same half-height form factor but offers a wider input range and higher surge capability.
High-power version of the 3500/15 AC supply designed for heavy 3500 racks or installations where additional DC current is required. It retains the same half-height form factor but offers a wider input range and higher surge capability.
Technical Specifications:
-
Input Voltage: 85-264 VAC, 47-63 Hz
-
DC Input Option: 120-370 VDC (same terminals)
-
Output Rail: +24 VDC ±1 %
-
Peak Power: 1200 W for 5 s, 150 W continuous
-
Peak Current: 50 A for 5 s, 5 A continuous
Detailed content
-
Hold-up Time: 30 ms @ 150 W
-
Efficiency: >88 % @ 230 VAC
-
Ripple & Noise: ≤0.5 % VP-P
-
Protection: Over-load, over-voltage, short-circuit, over-temperature
-
Operating Temperature: –30 °C to +65 °C
-
Storage Temperature: –40 °C to +85 °C
-
Dimensions: 120.7 × 50.8 × 251.5 mm
-
Weight: 1.39 kg
-
LEDs: Tri-colour bar graph for load level
-
Approvals: CE, UL, cUL, ABS, ATEX, IECEx
Functional Features:
-
Wide-range input eliminates de-rating for low-line sites
-
Higher in-rush capability for racks with many 4-20 mA loops
-
Programmable current-limit via software
-
Redundant operation identical to 106M1079-01
-
Conformal-coated boards for offshore duty
Application Scenarios:
-
Large 3500 racks with >20 monitor modules
-
High-channel-count reciprocating-compressor monitors
-
Sites with poor mains regulation (±20 %)
-
Retrofit of legacy 3500 racks needing higher DC head-room
