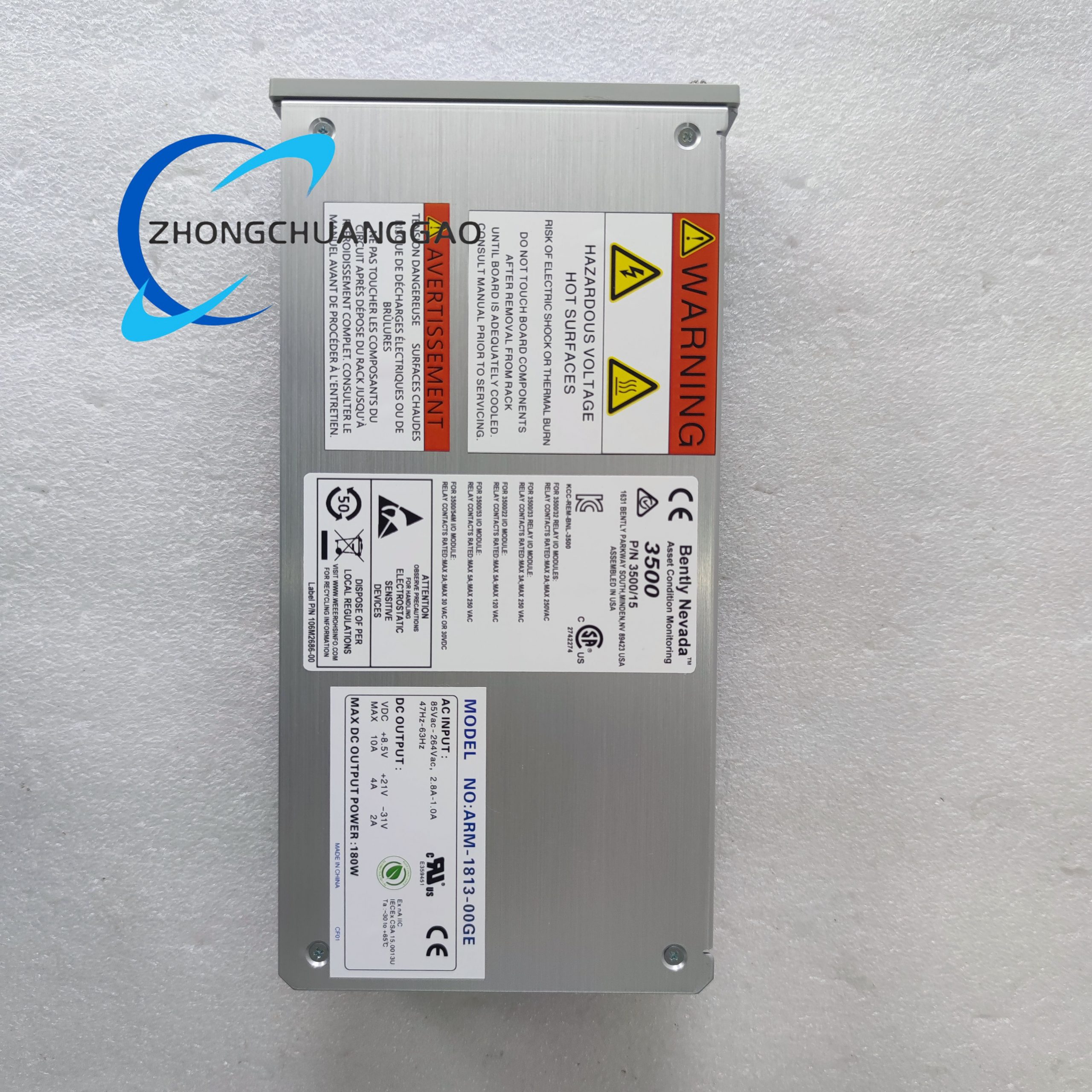

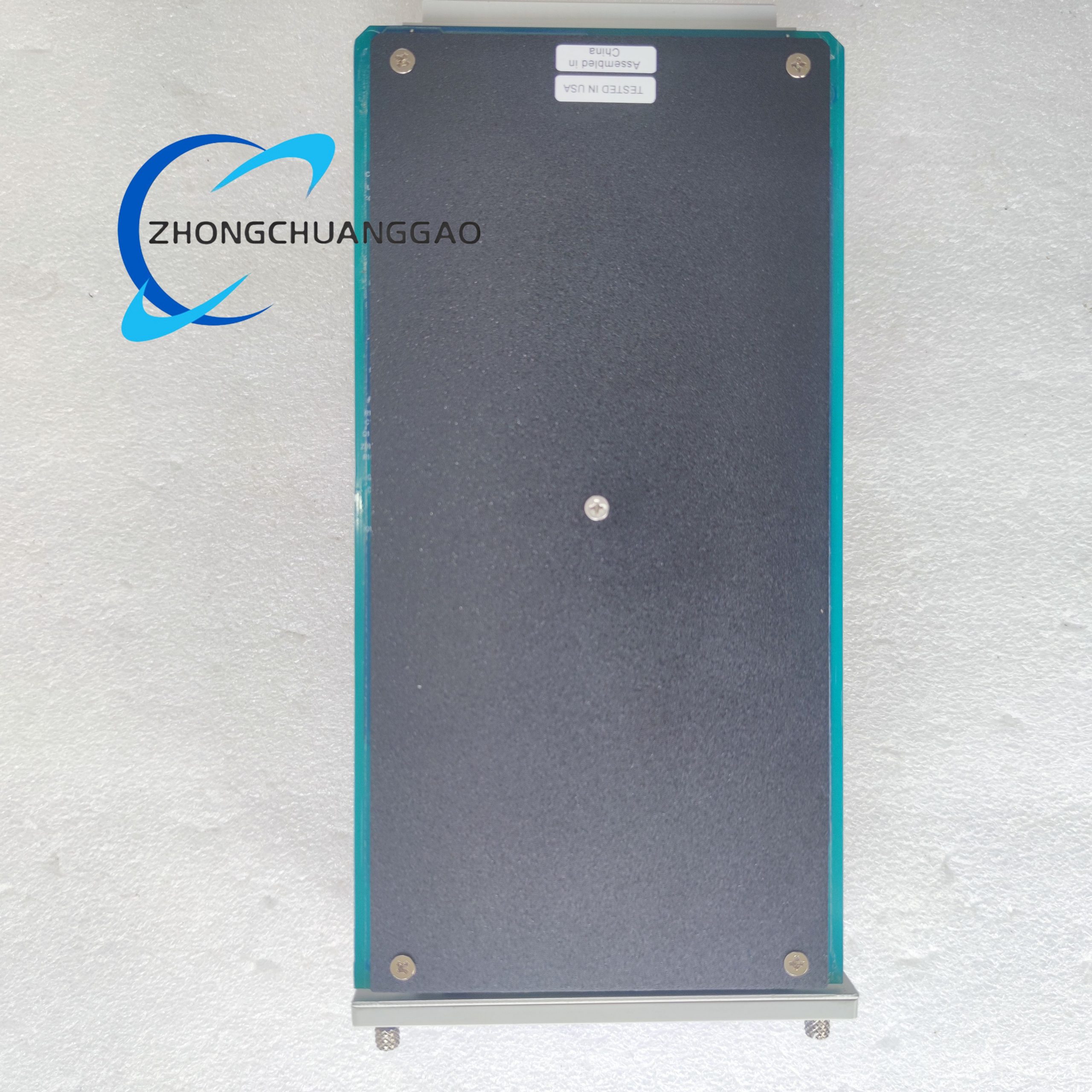

Bently 3500/15 106M1079-01
Product Introduction:
A half-height rack-mounted power-supply module that converts 100-240 VAC mains into regulated +24 VDC rails required by every 3500 monitor. It installs in the dedicated left-hand slots of any 3500 rack and supports true dual-redundant operation with automatic load sharing.
A half-height rack-mounted power-supply module that converts 100-240 VAC mains into regulated +24 VDC rails required by every 3500 monitor. It installs in the dedicated left-hand slots of any 3500 rack and supports true dual-redundant operation with automatic load sharing.
Technical Specifications:
-
Input Voltage: 100-120 VAC or 200-240 VAC, 47-63 Hz
-
Output Voltage: +24 VDC ±1 % ( +5 V & ±12 V derived on back-plane )
-
Maximum Output Current: 5 A
-
Rated Power: 120 W continuous, 150 W peak
-
Hold-up Time: 20 ms at full load
Detailed content
-
Efficiency: >85 % @ 230 VAC
-
Ripple & Noise: <100 mV pp
-
Protection: Over-voltage, over-current, short-circuit, thermal shutdown with auto-recovery
-
Operating Temperature: –20 °C to +65 °C
-
Storage Temperature: –40 °C to +85 °C
-
Humidity: 5 % – 95 % RH non-condensing
-
Dimensions: 120.7 × 50.8 × 251.5 mm (H × W × D)
-
Weight: 1.39 kg
-
Mounting: Left-hand slots 1 & 2 in 3500 rack
-
Cooling: Front-to-rear convection; no fan
-
LEDs: Green “AC OK”, green “DC OK”, red “Fault”
-
Agency Approvals: CE, UL, cUL, ATEX, IECEx (when used with approved rack)
Functional Features:
-
Hot-swappable when second supply is present
-
Auto-select input voltage worldwide – no jumpers
-
Parallel load-sharing with redundant partner
-
Conformal-coated boards for humid/salty atmospheres
-
Snap-fit insertion with captive screws
Application Scenarios:
-
Main & auxiliary power for 3500 racks on gas turbines
-
Offshore platform compressor protection systems
-
Refinery reactor pump monitoring skids
-
Nuclear plant safety-related vibration channels
