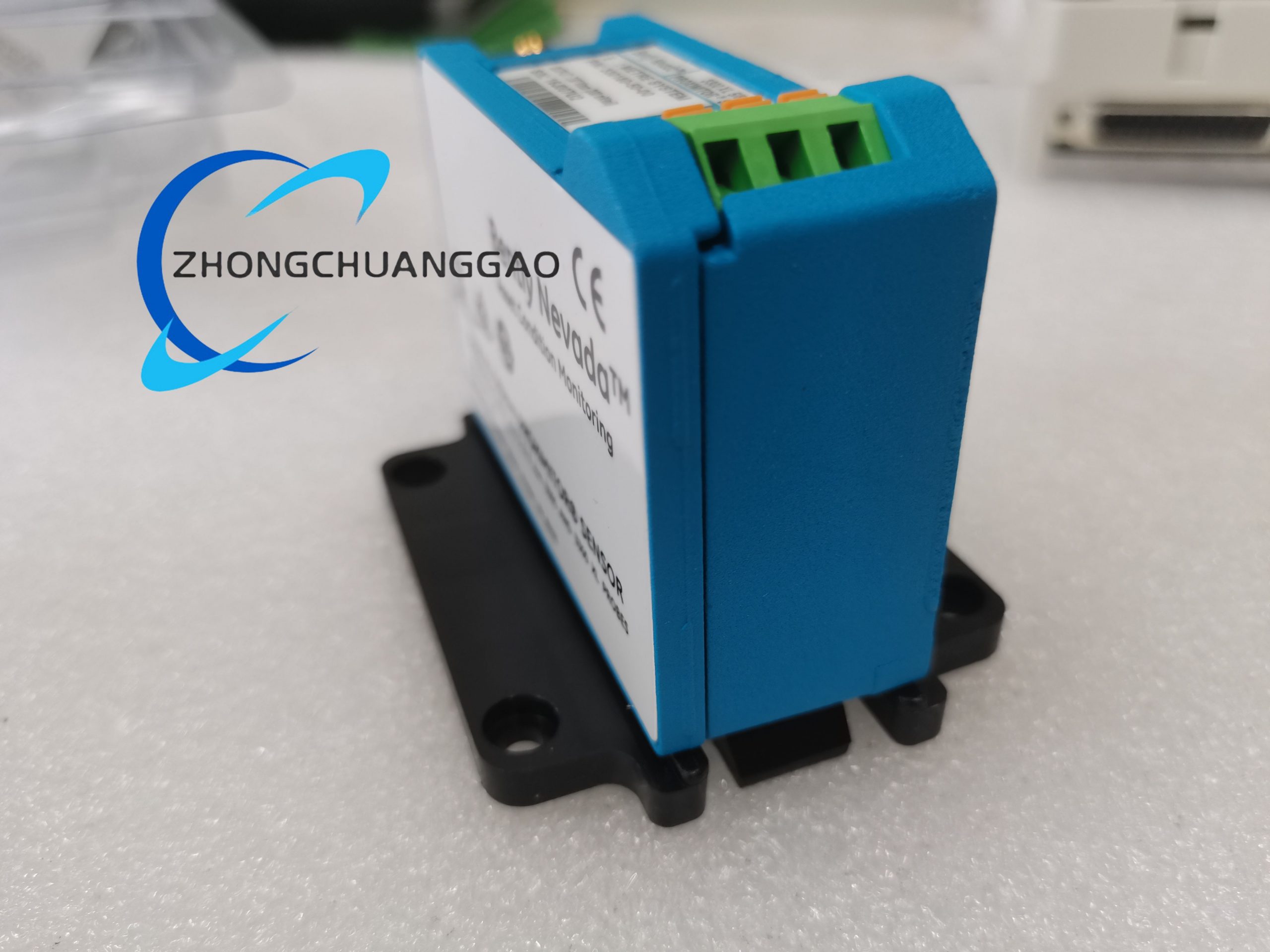

Bently 330180-50-00
Product Introduction:
The 330180-50-00 is the signal-conditioning module that converts the high-frequency eddy-current signal from the probe into a calibrated DC voltage proportional to gap. It forms the “driver” half of the 3300 XL 8 mm proximity transducer system and is mounted in the instrument cabinet rather than on the machine.
The 330180-50-00 is the signal-conditioning module that converts the high-frequency eddy-current signal from the probe into a calibrated DC voltage proportional to gap. It forms the “driver” half of the 3300 XL 8 mm proximity transducer system and is mounted in the instrument cabinet rather than on the machine.
Technical Specifications:
-
System Length: 5.0 m (probe + extension)
-
Supply Voltage: –24 VDC ±1 V, 12 mA typical
-
Output: –2 to –18 VDC linear over 2 mm range
-
Sensitivity: 7.87 V/mm (200 mV/mil)
-
Frequency Response: 0 – 10 kHz
Detailed content
-
Load: 10 kΩ minimum
-
Mounting: 4-hole panel footprint identical to legacy 3300 units
-
Terminations: SpringLoc screw-less clamps for 0.2 – 2.5 mm² wire
-
Operating Temperature: 0 °C to +65 °C
-
Isolation: 500 V channel-to-ground
-
Dimensions: 79 × 25 × 93 mm
-
Weight: 0.35 kg
Functional Features:
-
Hot-swappable when rack power is maintained
-
RFI/EMI immunity meets CE mark without metallic conduit
-
Electrical isolation eliminates separate isolator plates
-
LED “OK” indicator for sensor loop verification
-
Fully interchangeable with any 3300 XL 8 mm probe/cable
Application Scenarios:
-
Gas- and steam-turbine shaft vibration and thrust position
-
Centrifugal compressor radial vibration monitoring
-
Motor bearing wear trending in API 670 compliant systems
