Technical Specifications

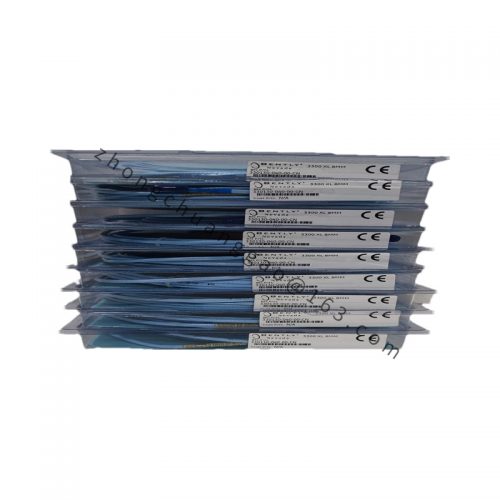

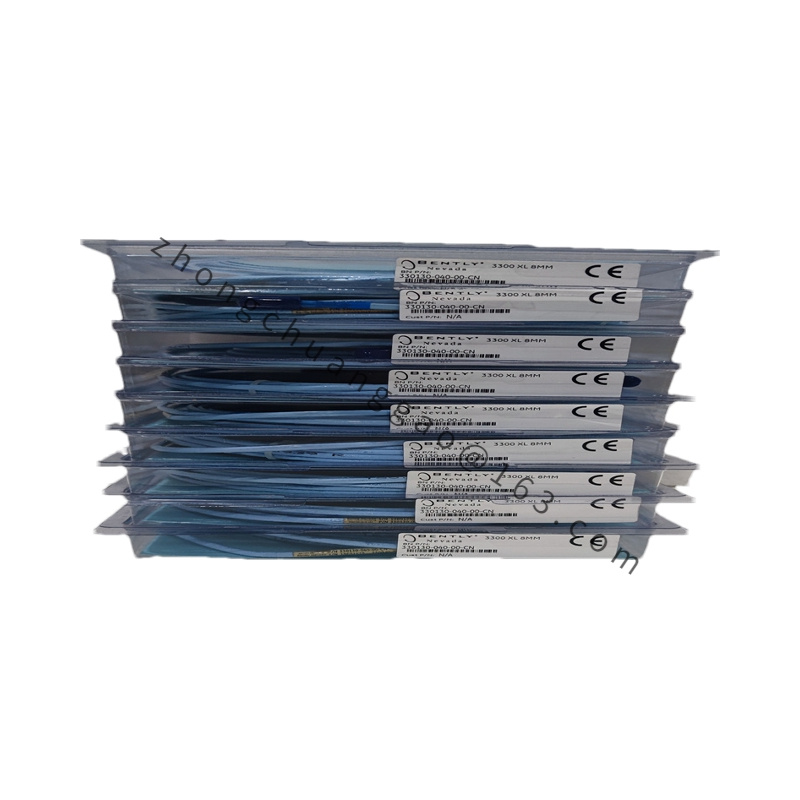

1. Model: 330130-040-00-CN
2. Type: Vibration Probe System
3. Function: Measures vibration levels in rotating machinery using proximity probes and associated electronics.
4. Measurement Specifications:
   • Probe Type: Typically an eddy current proximity probe, designed for precise measurement of shaft vibration and displacement.
   • Measurement Range: Capable of measuring displacement typically up to ±2 inches (±50 mm), though the exact range may vary based on specific probe configuration and application.
   • Frequency Response: Designed to handle high-frequency vibrations, with response capabilities generally extending up to several kHz.
5. Electrical Characteristics:
   • Power Supply: Operates on a 24V DC power supply, which is standard for many industrial monitoring systems.
   • Output: Provides analog output signals that can be integrated with condition monitoring systems for real-time data acquisition and analysis.
6. Environmental Conditions:
   • Temperature Range: Suitable for operation in temperatures ranging from -40°C to +70°C (-40°F to +158°F).
   • Relative Humidity: Designed to function in environments with relative humidity up to 95% (non-condensing).

Features

1. Precision Measurement: Offers high-accuracy measurements of vibration and displacement, crucial for detailed monitoring and protection of machinery.
2. Real-Time Monitoring: Provides continuous, real-time feedback on machinery condition, enabling early detection of potential issues and timely intervention.
3. Durable Construction: Engineered to withstand harsh industrial environments, ensuring reliable performance under challenging conditions.
4. Integration Capability: Compatible with Bently Nevada 3300 Series modules and other monitoring systems, allowing for a comprehensive condition monitoring solution.
5. Versatility: Applicable across a wide range of industrial machinery, including turbines, compressors, pumps, and motors.

Application Scenarios

1. Machinery Protection: Used to monitor critical machinery for vibrations and displacement, helping to prevent damage and ensure safe operation.
2. Condition Monitoring: Provides essential data for ongoing machinery health assessment, predictive maintenance, and early fault detection.
3. Industrial Automation: Applied in automation systems where accurate and reliable monitoring of machinery conditions is crucial for maintaining performance and efficiency.
4. Process Control: Useful in process control environments to monitor and maintain the stability and efficiency of rotating machinery.

Installation and Configuration

1. Mounting:
   • Form Factor: The probe is typically mounted on a bracket or fixture positioned near the rotating shaft. Correct alignment and secure mounting are critical for accurate measurement.
   • Installation: Involves precise positioning of the probe relative to the shaft and connection to the monitoring system. Detailed installation instructions are provided in the product manual.
2. Wiring:
   • Connections: Requires proper wiring to connect the probe to the monitoring system, including connections for power supply and signal output. Wiring diagrams and installation procedures are detailed in the product documentation.
3. Configuration:
   • Calibration: Calibration is necessary to ensure accurate displacement measurements. Refer to the product manual for specific calibration instructions.
   • Integration: Designed to integrate with Bently Nevada 3300 Series modules and other monitoring systems. Configuration details are provided in the product documentation.
