Bently 190065A-00-00-01-00-01

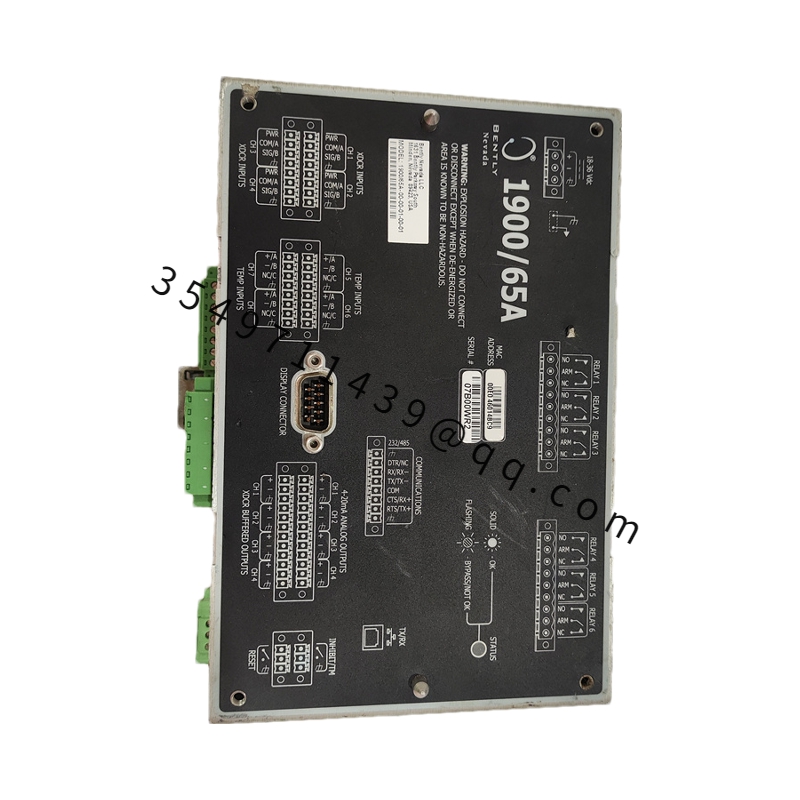

Bently 1900/65A-00-00-01-00-01 Universal Equipment Monitor
1、 Technical specifications
Sensor Input: Provides 4 sensor inputs, and the software can configure each sensor input to support 2-wire and 3-wire accelerometers, speed sensors, or proximity sensors.
Temperature input: Each temperature input supports E, J, K, and T type thermocouples, as well as 2-wire or 3-wire RTDs.
Output: Provides 6 relay outputs, 4 4-20 mA recorder outputs, and a dedicated buffered output.
Vibration variables: configurable 4-pole high pass and 4-pole low pass from 0.5 Hz to 25 kHz; Envelope Qualcomm: 25Hz to 5kHz, can be configured with 4 poles; Envelope low-pass: 125 Hz to 25 kHz, can be configured with 2 poles; Envelope variable high pass: minimum 0.1 Hz, but greater than 2 poles of envelope variable low pass; Envelope variable low-pass: greater than envelope variable high pass, less than envelope high pass quadrupole; Bias filter: 0.01 Hz 1-pole low-pass; OK filter: 2.4 kHz 1-pole low-pass.
Detailed content
2、 Functional characteristics
Real time monitoring: capable of monitoring various applications and equipment used in the industry in real time, including parameters such as vibration amplitude and frequency.
Data analysis: Equipped with powerful data analysis functions, it can process, analyze, and diagnose the collected data, providing accurate fault warning and fault type judgment.
Alarm function: Once an abnormal situation is detected, the monitor will immediately sound an alarm, reminding the operator to take corresponding measures to avoid the expansion of the fault or the occurrence of safety accidents.
Easy to integrate: It can be quickly integrated into existing industrial automation systems, making it convenient for users to manage and monitor equipment uniformly.
High reliability: The use of high-quality sensors and electronic components ensures the reliability and stability of the monitor, enabling long-term stable operation.
Easy to install, operate, and maintain: The design is simple and easy to install, while providing a friendly human-machine interface for users to operate and maintain.
3、 Application scenarios
The Bently 1900/65A-00-00-01-00-01 Universal Equipment Monitor can be applied to various industries, such as oil and gas, power generation, water treatment, pulp and paper, mechanical processing, mining, cement, etc., for continuous monitoring and protection of important factory assets and auxiliary equipment.
