Technical Specifications:​

Processor: Intel Celeron M ULV, 1 GHz

Flash storage: 128 MB CompactFlash card, Type I/II slot, expandable

Main memory: 256 MB DDR RAM, expandable to 512 MB or 1 GB

Ethernet: 2 x RJ45 10/100 Mbit/s with internal switch

System bus: 16-bit ISA PC/104 on both sides

Real-time clock: internal battery-backed clock, exchangeable battery

Operating systems: Windows Embedded CE 6 or Windows Embedded Standard 2009

Control software: TwinCAT 2 PLC, NC PTP and NC I runtime options

Power supply: through CX1100-xxxx power module, no local power jack

Maximum power consumption: 11 W

Dimensions: 96 mm x 112 mm x 99 mm

Weight: approximately 550 g

Operating temperature: 0 °C to +50 °C

Storage temperature: -25 °C to +85 °C

Relative humidity: 95% non-condensing

Protection class: IP20

Functional Features:​

Fanless passive cooling with no rotating parts

Internal Ethernet switch for line topology without external switches

PC/104 expansion for CX1100 power, CX1500 fieldbus and I/O interfaces

TwinCAT PLC, point-to-point motion and interpolated NC control

Battery-backed clock for timestamps and logging

Performance Parameters:​

CompactFlash boot media for system image and project storage

DDR RAM suitable for medium-scale PLC and NC tasks

Real-time control cycles supported by TwinCAT and deterministic PC/104 I/O

E-bus/K-bus/I-P-Link I/O access through the connected CX1100 power module

Material Composition:​

Cooling body: aluminum passive heat sink module

Housing sections: industrial flame-retardant plastic

PC/104 connectors: gold-plated contact elements

Internal boards: multilayer industrial PCB

Structural Characteristics:​

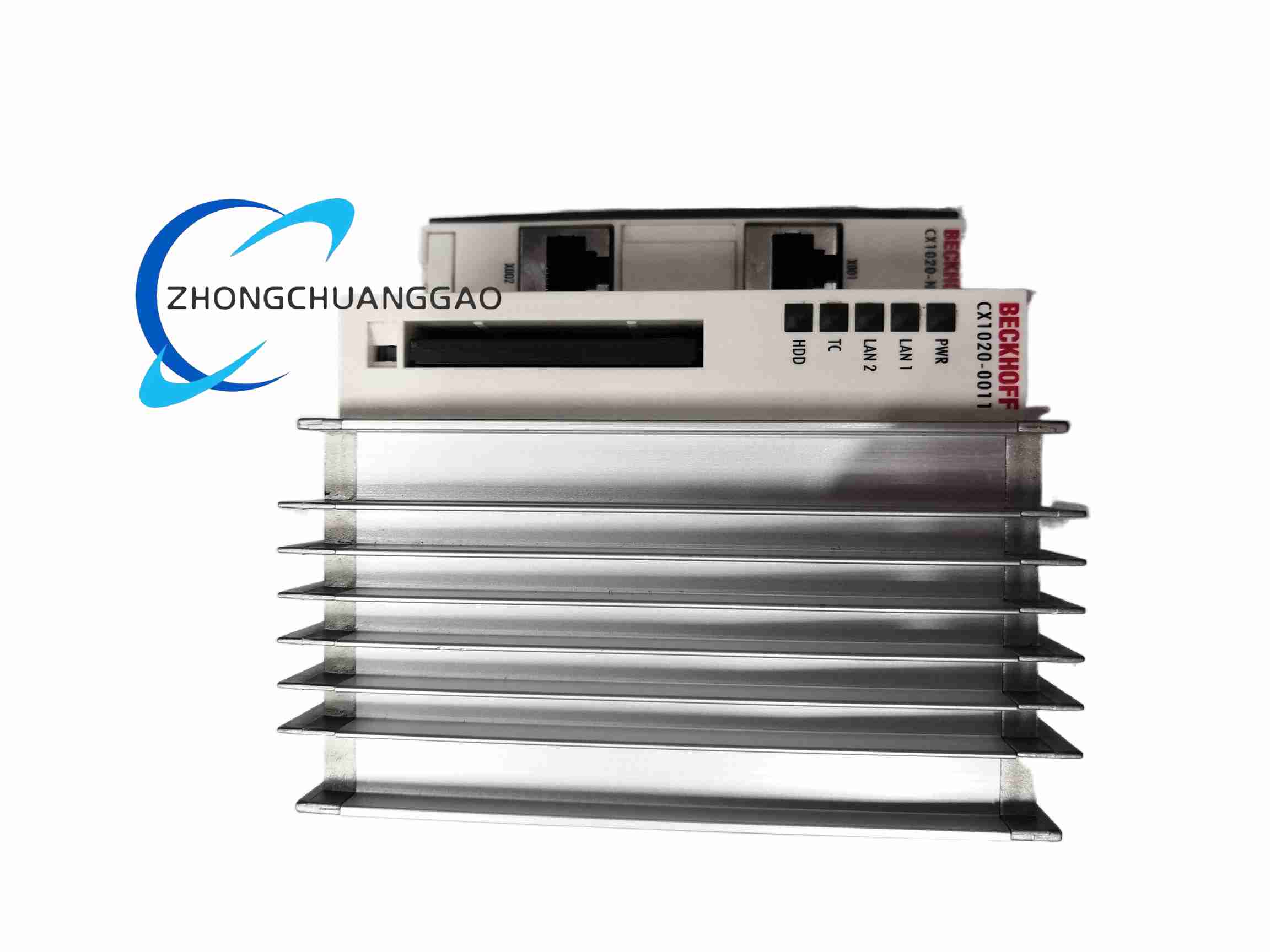

Compact stacked embedded CPU module

Front CompactFlash slot, labeling area and diagnostic LEDs

Dual-side PC/104 interfaces for module stacking

Diagnostic LEDs for power, LAN link/activity, TwinCAT status and flash access

Working Principle:​

The CPU boots from CompactFlash, loads Windows Embedded and TwinCAT runtime, executes IEC control tasks, and exchanges I/O data through PC/104 with power, fieldbus and terminal modules. Ethernet ports handle programming, HMI and peer communication while the internal switch simplifies line networking.

Installation Requirements:​

Stack with a compatible CX1100 power supply module inside the control cabinet

Use E-bus, K-bus or IP-Link power module according to the I/O terminal type

Maintain ventilation clearance around the passive cooling body

Install the real-time clock battery and configured CompactFlash before startup

Usage Precautions:​

Power off the stack before removing CompactFlash, battery or expansion modules

Do not cover the passive heat sink or install in enclosed non-ventilated spaces

Backup system image before OS, TwinCAT or firmware changes

Keep the cabinet ambient temperature within 0 °C to +50 °C
