Technical Specifications:​ CompactPCI backplane interface; Power PMAC 465 architecture; PowerPC/DSP processing core; onboard flash and SDRAM; supported rails from sub-rack backplane including +5 V, +3.3 V and ±12 V DC; operating range 0°C to 50°C in controlled cleanroom environment.

Functional Features:​ Executes multi-axis motion programs, servo loop control, kinematic algorithms and backplane communication; retains compiled motion projects in nonvolatile storage; provides processor, memory and bus diagnostics through test bench verification.

Application Scenarios:​ Wafer handling systems, semiconductor process chambers, legacy Applied Materials motion sub-racks, high-speed automation equipment requiring sub-millisecond trajectory tracking.

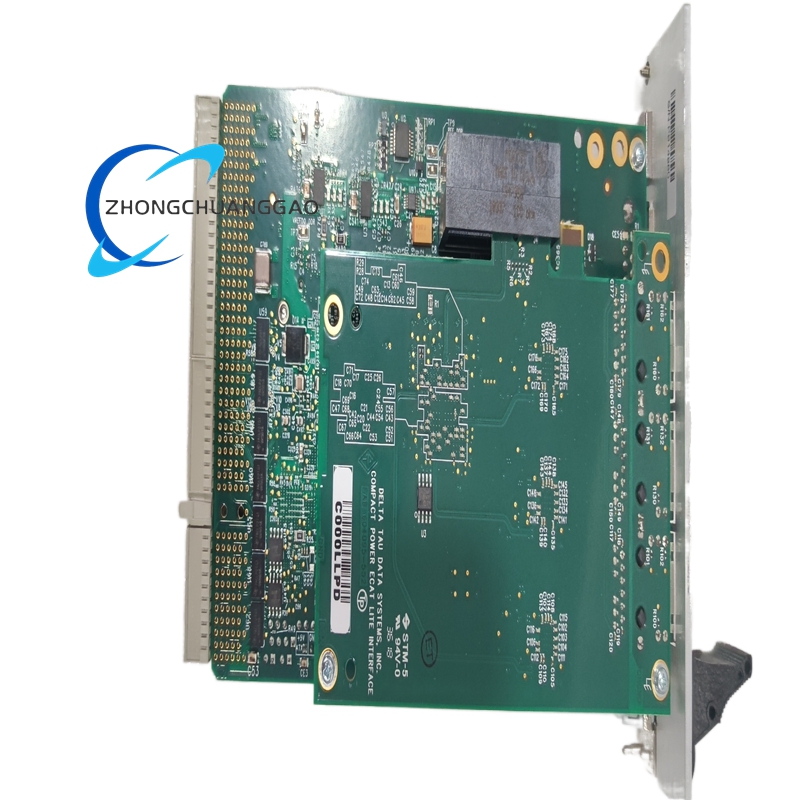

Structural Characteristics:​ Single-board plug-in card with gold-finger CompactPCI edge connector, front panel handling/latch area and rear backplane engagement; fits cPCI sub-rack slot guides.

Working Principle:​ Host or rack controller downloads motion programs and parameters to onboard memory; the CPU/DSP core computes trajectory and servo corrections, exchanges encoder/feedback data through backplane and drive interfaces, and outputs real-time control signals to axis drives.

Installation Requirements:​ Install only in matched CompactPCI sub-rack with correct power rails and firmware baseline; seat the card along mechanical rails until injectors/latches engage; verify backplane pins before insertion; apply antistatic handling and cleanroom packaging.

Usage Precautions:​ Do not insert or remove while backplane is energized; verify firmware, configuration files and memory compatibility before power-up; check gold fingers for oxidation; ensure chassis grounding and forced-air cooling meet rack design.
