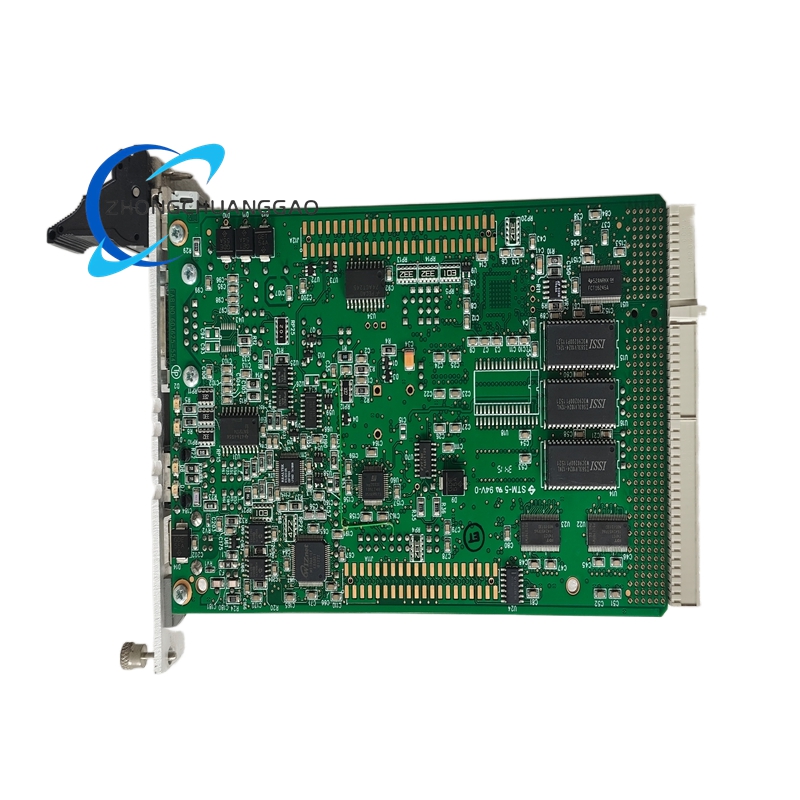

AMAT 0190-26873
Product Name
Motion control and multi-sensor interface board / PMAC processor module.
Product Introduction
Applied Materials 0190-26873 is listed in public spare-part sources as a motion control CPU board, multi-sensor interface, or Delta Tau PMAC-class processor module. It provides real-time servo control, sensor acquisition, and communication for semiconductor wafer handling, robotics, and process positioning systems.
Detailed content
Technical Specifications
- Manufacturer: Applied Materials in AMAT listings; Delta Tau referenced in PMAC variant listings
- Controller architecture: Delta Tau Turbo PMAC2 in selected listings; DSP/PMAC descriptions in additional sources
- Processor: DSP-class motion CPU in PMAC listings; 40–80 MHz DSP descriptions in selected sources
- Memory: SRAM, flash, and EEPROM depending on PMAC revision
- Analog input: ±10 V and ±20 mA selectable in selected multi-sensor listings; 24-bit ADC in selected listings
- Digital/analog channels: up to 16 combined channels in selected listings; four primary servo outputs in selected PMAC listings
- Communication: optical ToolBus++, RS-232/422, PC/104, EtherCAT/Modbus in variant listings
- Supply: 48 VDC in selected multi-sensor listings; 24 VDC in selected general Delta Tau listings
- Operating temperature: 0–85°C in selected multi-sensor listings; -20–60°C in selected general Delta Tau listings
- Mounting: CPCI/embedded control integration or DIN/panel depending on variant
Function Features
- Generates servo commands for motors, actuators, and wafer-positioning stages
- Acquires encoder, pressure, temperature, and flow feedback
- Executes interpolation, S-curve profiling, and closed-loop compensation
- Supports multi-axis coordination and high-speed sensor synchronization
- Provides optical isolation and backplane communication for fab tools
Application Scenarios
- AMAT etch, CVD, PVD, and ALD equipment motion subsystems
- Wafer transfer robots, stage positioning, and vacuum handler control
- CNC machining and multi-axis automation in PMAC variant deployments
- Precision sensor fusion for pressure, temperature, and flow monitoring
Material Composition
- Substrate: multilayer industrial control PCB
- Connectors: micro-D high-density, encoder, analog, and fiber/backplane interfaces
- Components: DSP/FPGA, servo DACs, isolated transceivers, memory devices
- Frame: CPCI/embedded bracket or PMAC module housing depending on variant
Structural Characteristics
- Compact processor card with axis and I/O connectors
- High-density micro-D sensor interfaces in selected listings
- Backplane or optical ToolBus communication section
- Extractable module format for service in semiconductor chassis
Working Principle
The motion processor receives position commands from the host or routine engine, reads encoder/feedback inputs, computes servo correction, and outputs analog or pulse commands to amplifiers. Sensor inputs are sampled, conditioned, and forwarded for process control and diagnostic logging.
Installation Requirements
- Verify PMAC firmware, axis count, and backplane type before insertion
- Confirm 48 V or 24 V supply according to the installed variant
- Align encoder, analog, and communication connectors using OEM pin maps
- Perform ESD handling and functional motion test before full wafer operation
Usage Notes
- Do not exchange PMAC firmware revisions without system compatibility check
- Validate axis homing, encoder polarity, and servo gains after replacement
- Inspect optical communication ports for contamination
- Keep spare configuration files and axis parameter backups
