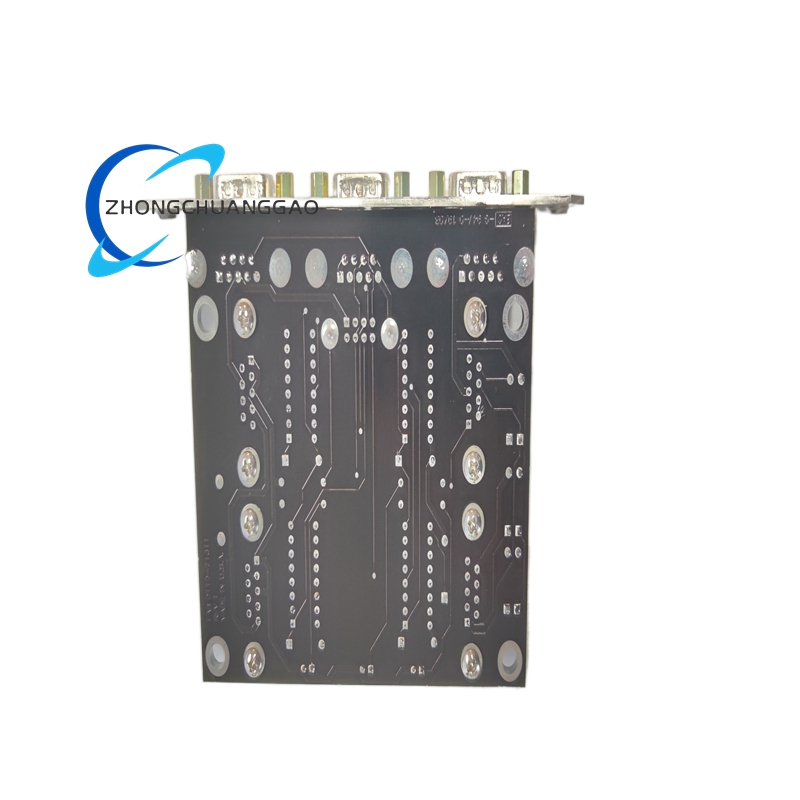

AMAT 0100-71311
Product Name
Semiconductor tool controller and high-speed data processing module.
Product Introduction
Applied Materials 0100-71311 is a controller/interface assembly for legacy and current AMAT semiconductor platforms. Public listings describe it for subsystem communication, signal routing, process control logic, real-time data processing, and backplane register communication in vacuum process tools.
Detailed content
Technical Specifications
- Manufacturer: Applied Materials
- Module type: controller, interface, or high-speed data-processing card depending on listing
- Processor: PowerPC/ARM descriptions in some third-party listings; proprietary controller logic in OEM spare-part descriptions
- Memory: 512 MB DDR3 and 128 MB flash in selected third-party listings
- Bus/communication: proprietary AMAT backplane/register bus, VME64x in selected listings, Gigabit Ethernet, RS-485
- Operating temperature: 0–50°C
- Humidity: up to 95% non-condensing in selected listings
- Form factor: 3U/classified circuit card with extraction frame in controller listings
- Weight: around 0.9 kg in selected third-party listings
Function Features
- Routes subsystem communication between chamber electronics and host controller
- Processes real-time sensor data and control commands
- Supports signal timing, register polling, and protocol conversion
- Provides watchdog, self-diagnostic, and redundancy options in selected listings
- Restores legacy tool communication without full chassis replacement when used as OEM-spec spare
Application Scenarios
- AMAT Centura, Endura, and legacy semiconductor processing platforms
- Etch, ion implant, deposition, and vacuum chamber control
- Wafer handling and robotics interface control in selected system configurations
- High-reliability cleanroom electronics racks
Material Composition
- Substrate: multilayer controlled-impedance PCB
- Connectors: gold-plated edge or backplane connectors in selected listings
- Frame: rigid extraction handle/frame for rack service
- Components: processors, FPGAs/ASICs, memory devices, isolated transceivers
Structural Characteristics
- Modular circuit card with backplane edge connector
- Status LEDs and diagnostic indicators depending on revision
- Slot-defined placement according to system schematic
- VME or proprietary chassis format depending on platform
Working Principle
The controller receives host commands over the backplane, executes timing and logic routines, polls subsystem registers, conditions I/O data, and returns status to the tool computer. In data-processing listings, ADC/DSP/processor stages filter sensor data and generate actuator commands.
Installation Requirements
- Verify exact slot mapping from the system schematic before insertion
- Confirm firmware/revision parity with host software
- Check backplane power rails and ground integrity before energizing
- Use ESD protection and cleanroom-approved handling procedures
Usage Notes
- Do not install into an incorrect chassis slot
- Do not hot-swap under power
- Validate communication handshake and register response after replacement
- Record serial, revision, and calibration data for traceability
