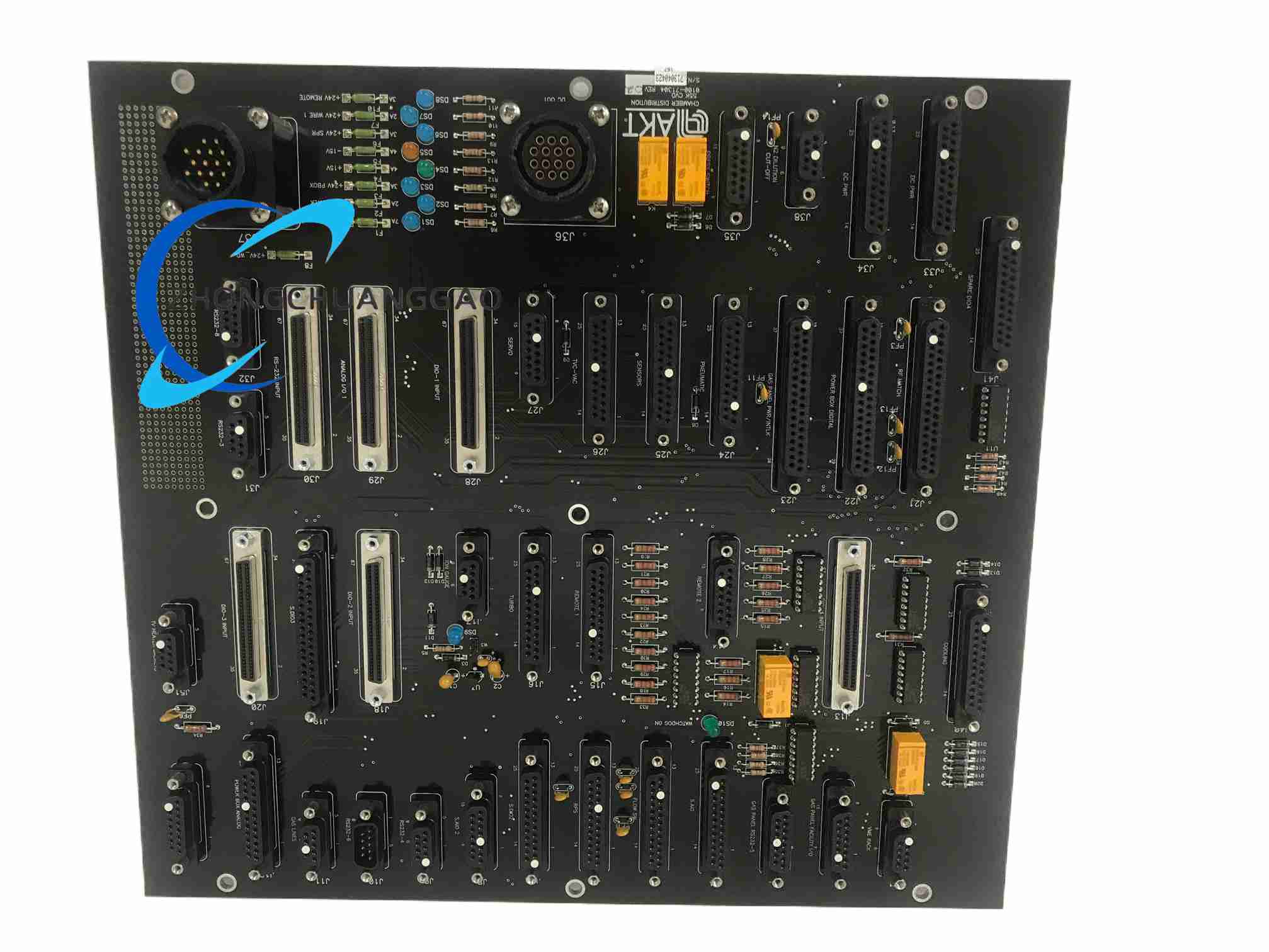

AMAT 0100-71304
Product Name
Semiconductor equipment control board, listed in public spare-part sources as digital I/O board, analog input interface board, or CVD process board depending on configuration.
Product Introduction
Applied Materials 0100-71304 is an electronics assembly for AMAT wafer fabrication tools. Public listings describe it for signal acquisition, control output, sensor conditioning, and CVD-related process monitoring. It interfaces field devices with the tool controller inside cleanroom electronics racks.
Detailed content
Technical Specifications
- Supply: 24 VDC or 5 VDC depending on board variant
- Digital variant: multiple isolated digital input/output channels for switches, sensors, valves, limit switches
- Analog variant: 4–8 differential channels, 0–10 V and 4–20 mA configurable, 16-bit ADC in some listings
- Communication: internal tool backplane, VME-compatible descriptions in some sources, Modbus/RTU in third-party analog listings
- Operating temperature: 0–50°C for digital listings, 5–55°C for some analog listings
- Protection: surge suppression, ESD protection, conformally coated descriptions in selected sources
- Construction: multilayer FR-4, gold-plated backplane connectors in analog listings, metal/plastic housing depending on variant
Function Features
- Collects digital status signals and sends control commands to actuators
- Conditions low-level analog signals from pressure, temperature, and flow transmitters
- Provides channel fault detection, isolation, and noise suppression
- Supports real-time transfer to the main process controller
Application Scenarios
- AMAT Centura and Endura platform etch, PVD, CVD, and process control systems
- Vacuum pressure transducer acquisition
- Mass-flow controller monitoring
- Chamber temperature and interlock signal handling
Material Composition
- Circuit substrate: low-outgassing FR-4 in analog listings
- Connectors: industrial-grade or gold-plated backplane contacts
- Housing: flame-retardant plastic or metal-shielded format depending on variant
- Components: surface-mount precision resistors, isolation devices, ESD-protected ICs
Structural Characteristics
- Plug-in card format for electronics rack or VME slot
- Front or board-mounted status LEDs
- Rear edge connector for backplane communication
- D-sub, fiber, or high-density signal connectors depending on configuration
Working Principle
Field digital or analog signals enter the conditioning circuit. Digital boards latch and isolate switch states, then pass logic to the controller. Analog boards amplify, filter, and convert sensor signals through ADC stages, then transmit digital packets over the internal backplane for closed-loop process calculation.
Installation Requirements
- Install in climate-controlled tool electronics rack with adequate airflow
- Verify slot assignment against the system schematic before insertion
- Use shielded twisted-pair cable for analog sensors
- Confirm voltage range and channel configuration before energizing
Usage Notes
- Do not insert or remove under power
- Avoid electrostatic exposure; use antistatic handling
- Verify firmware, revision, and backplane compatibility for controller-class variants
- Inspect connectors for oxidation or pin damage before reuse
