Max current: 4.2 A at 24 VDC

System bus: CAN

Integrated digital I/O

Integrated analog I/O

Controller type: industrial drive PLC

Programming: Lenze Global Drive PLC environment

Functional Features​

Decentralized machine control

Drive coordination

Digital and analog signal handling

CAN-based system bus

Legacy machine retention

Application Scenarios​

Legacy Lenze drive systems

Machine sequencing

Decentralized automation

Retrofit of older production machines

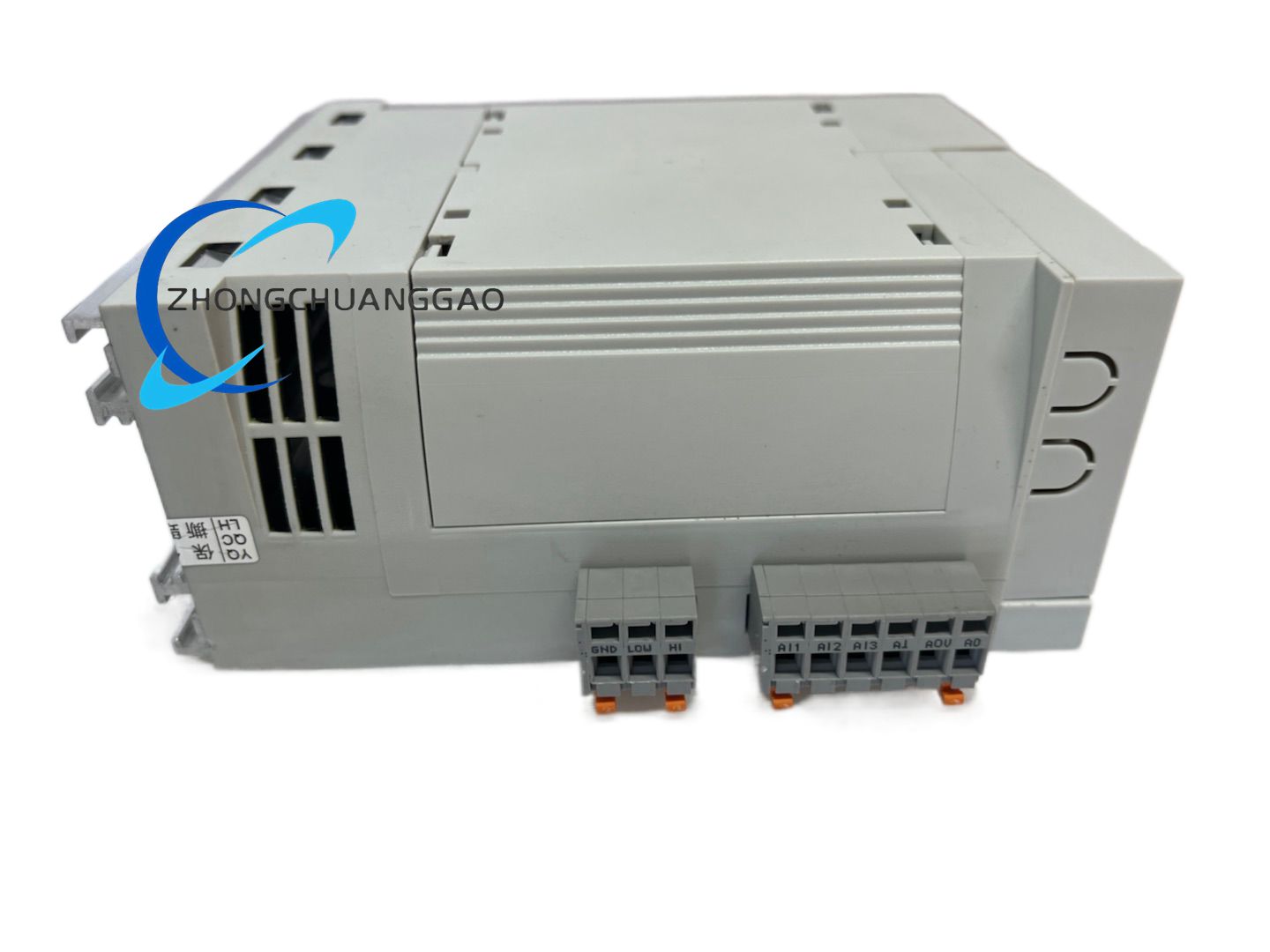

Structural Characteristics​

Control-cabinet mounting

Terminal groups for supply, I/O and CAN

Drive-PLC integrated architecture

Working Principle​

Executes machine/logic control locally, exchanges data over the CAN system bus, and coordinates connected Lenze drives and I/O devices.

Installation Requirements​

Mount in industrial control cabinet

Verify hardware and software revision

Match CAN bus configuration

Confirm connected drive compatibility

Check 24 VDC power budget

Usage Precautions​

Match exact -W variant and nameplate

Software generation must suit application

Backup original PLC project before replacement

Commission only after bus and drive verification
