Technical Specifications​

Panel size: 96 × 96 mm Q96 mount

Modes: manual and automatic

Auto input: PI controller relay output

J1939 input: CAN bus speed command

Outputs: 0–10 V, 4–20 mA, PWM optional

Supply: 24 VDC typical; 230 VAC possible by configuration

Operating temperature: 0 to +55 °C

Storage temperature: -25 to +70 °C

Front protection: IP54

Approvals: UL, CE, DNV; ATEX optional

Functional Features​

Manual/auto mode switching

PI relay output conversion

J1939 CAN to analog/PWM conversion

Adjustable integration time

Adjustable bias/offset

Power-loss auto-reset

Application Scenarios​

Electronic governor control

Automatic voltage regulator interface

Diesel/gen-set speed control

Marine propulsion control

Third-party governor interfacing

Structural Characteristics​

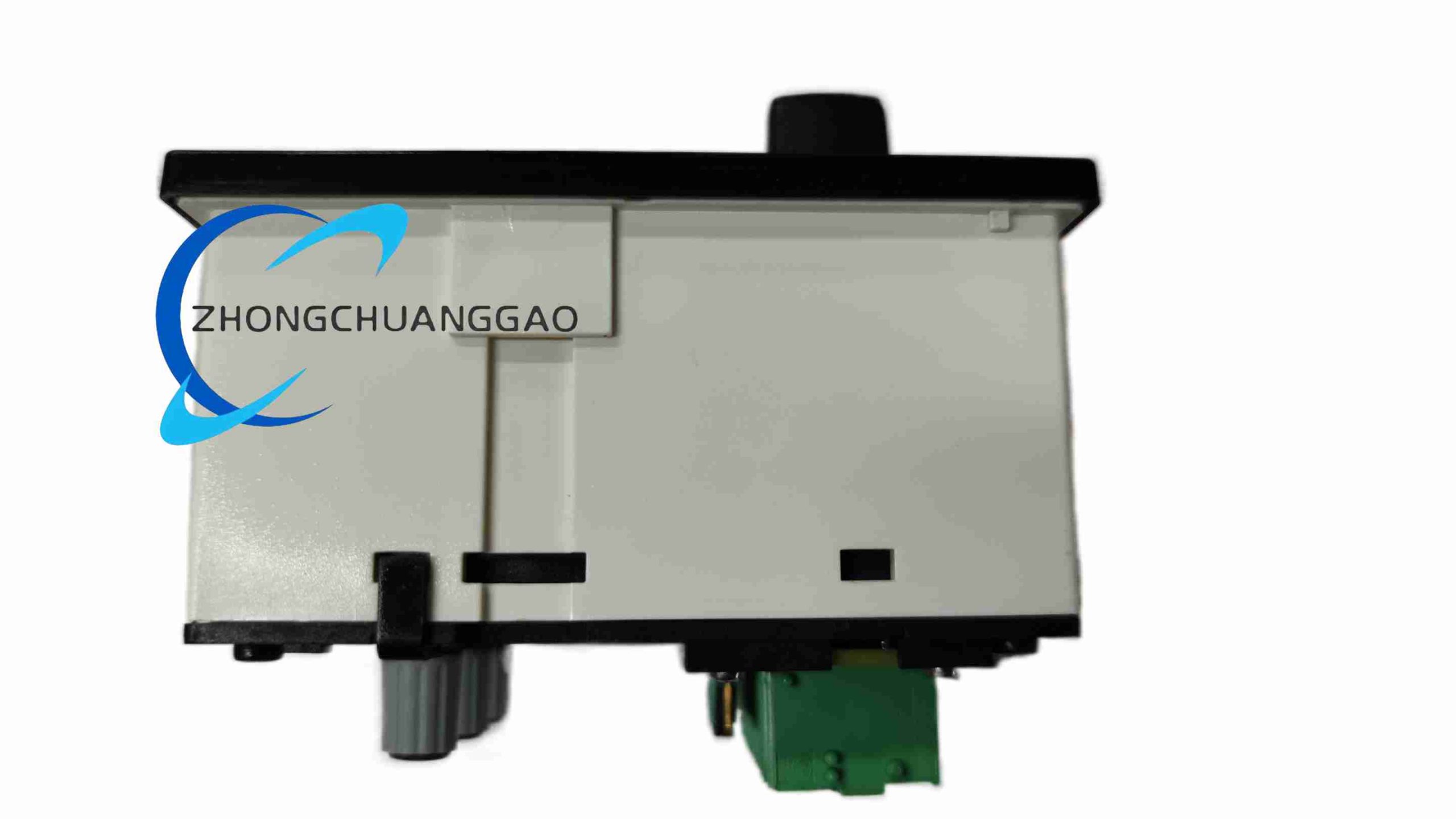

Square panel-mount instrument

Front adjustment elements

Rear terminal connections

Q96 cutout format

Working Principle​

Converts relay step signals or J1939 CAN messages into smooth analog voltage, current or PWM actuator commands, and holds or resets output safely during power interruption.

Installation Requirements​

Cut 96 × 96 mm panel opening

Use shielded signal wiring for analog outputs

Separate CAN and power cabling where practical

Confirm governor/AVR compatibility before wiring

Usage Precautions​

Verify supply configuration before energizing

Do not connect AC mains to DC-only units

Check J1939 PGN/address settings

Prevent moisture ingress at rear terminals

Recheck bias and integration time after replacement
