Allied Telesis AT-8000S24POE
Product Name
AT-8000S/24POE Layer 2 stackable Fast Ethernet PoE switch.
Overview
19-inch rack-mount managed Fast Ethernet switch with 24 PoE-capable 10/100 ports, Gigabit/combo uplinks and SFP options for access-layer enterprise and industrial Ethernet deployments.
Detailed content
Technical Specifications
- Ethernet ports: 24 x 10/100TX PoE RJ45
- Uplink/combo: 2 x 10/100/1000T and 2 SFP bays in typical 24POE configuration
- Optional fiber: 100FX or 1000SX/LX SFP
- Management port: RS232 DB9
- Switching capacity: 12.8 Gbps
- Throughput: 9.52 Mpps
- MAC table: 8000 entries
- VLAN: 802.1Q, up to 256 active VLANs in typical configuration, 4096 VLAN ID support
- RAM: 64 MB, Flash: 16 MB, CPU 400 MHz in documented configuration
- PoE standard: IEEE 802.3af
- Total PoE budget: 225 W; switch logic 12 V/45 W, PoE 50 V/185 W
- Max 802.3af Class 3 devices: 12 ports; Class 2 devices: 24 ports
- Dimensions: 440 x 257 x 43 mm
- Weight: 3.7 kg
- MTBF: 194,113 hours
- Latency: 10M 85.39 µs, 100M 17.76 µs, 1000M 2.72 µs
Functional Features
Store-and-forward switching, non-blocking fabric, auto MDI/MDI-X, 802.1D/w/s spanning tree, 802.3ad LACP trunking, 802.1p QoS/DSCP, IGMP snooping, SNMP/Web/Telnet management, ACL/SSH/SSL security options depending on firmware.
Application Scenarios
IP phones, wireless APs, campus access switches, factory office networks, security camera access switching, rack-mount edge distribution.
Material Composition
Metal 19-inch chassis, internal power supply, SFP cage alloys, PCB with Ethernet ASICs, cooling fan assembly in 24-port PoE model.
Structural Characteristics

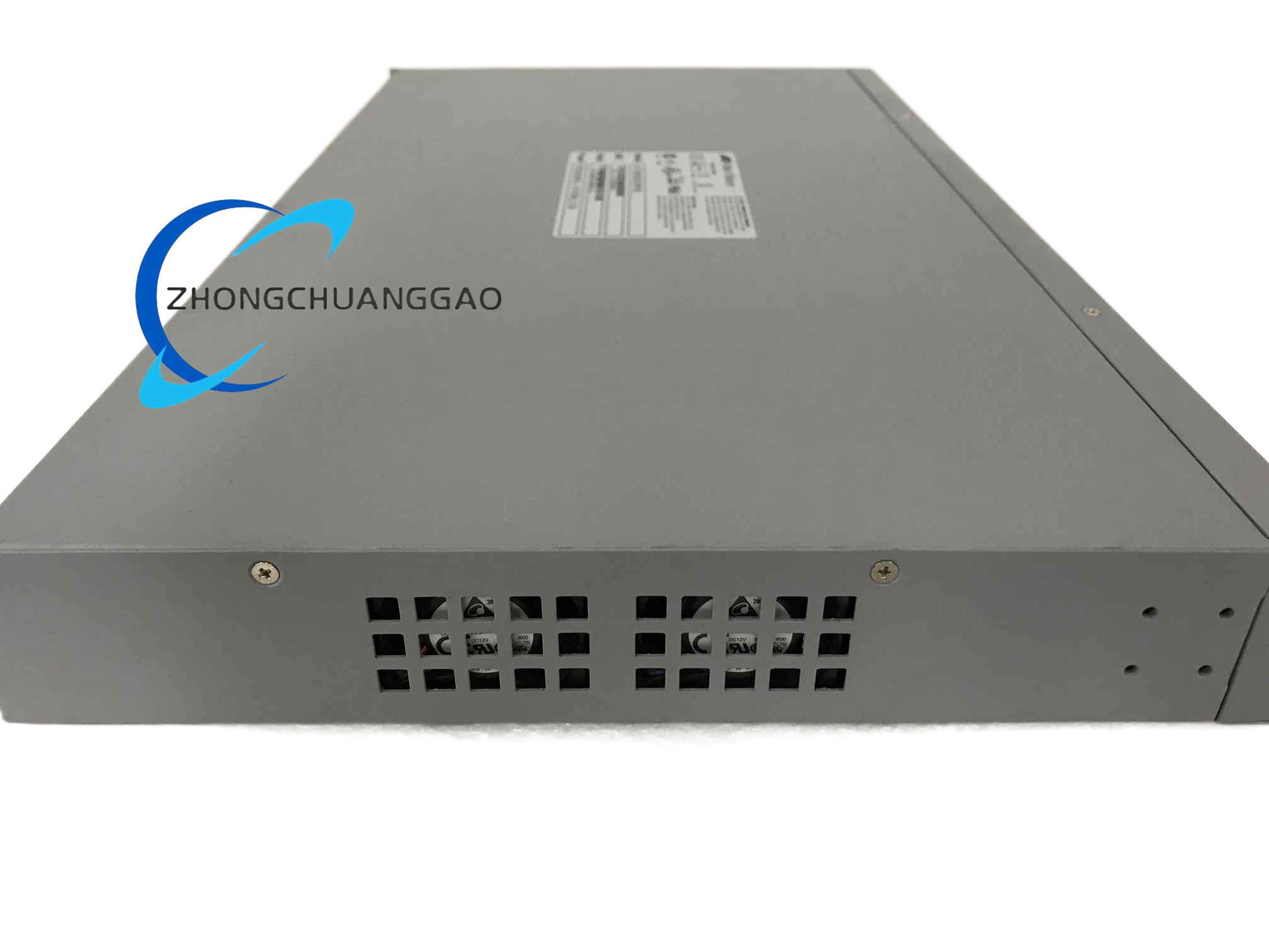

1U rack-mount chassis, front RJ45/PoE ports, SFP slots, console port, LED indicators, internal fixed power supply.
Working Principle
Ingress frames are received on RJ45 or SFP ports, classified by VLAN/QoS rules, forwarded through the non-blocking fabric using store-and-forward, and transmitted to destination ports. PoE controller negotiates/selects 802.3af power per port within the 225 W budget.
Installation Requirements
Install in 19-inch rack with 1U clearance and ventilation. Connect 100–240 VAC per regional power cord version. Use Cat5e/6 for 10/100/1000 copper and matched SFP modules for fiber. Configure management IP, VLAN and PoE priority before connecting powered devices.
Usage Precautions
Do not exceed 225 W total PoE budget. Verify fan operation in 24POE model. Use only compatible SFPs. Maintain ambient temperature per operating manual; avoid blocking exhaust vents.
