Number of Analog Inputs:8

Input Range:4 to 20 mA or 0 to 10 V

Power Consumption:Max 2 W

Communication Interface:ControlNet

Operating Temperature:-20°C to +70°C

Enclosure Rating:IP20

Mounting Type:Panel Mount

Dimensions:76mm x 104mm x 91mm

Weight:0.4kg

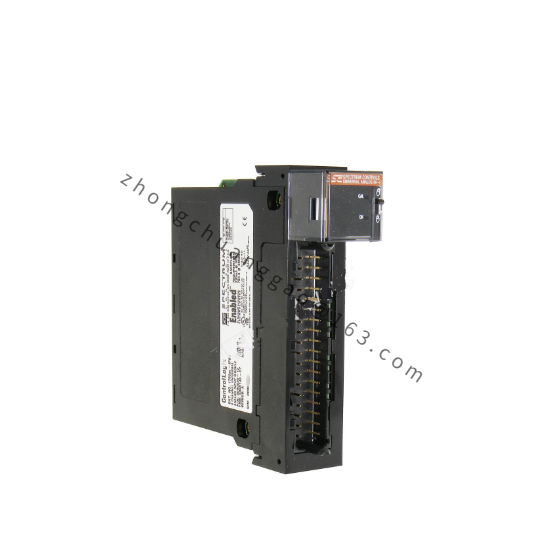

    The Allen-Bradley 1756SC-IF8U ControlLogix Analog Input Module is engineered for demanding industrial settings, ensuring accurate and consistent data collection. It is equipped with eight input channels capable of measuring both differential and single-ended voltages within the specified range.

    This module boasts an impressive accuracy of +/- 0.5% Full Scale, making it ideal for applications requiring high precision. It supports a maximum sampling rate of up to 1000 samples per second, enabling real-time data acquisition and processing.

    With support for both ControlNet and EtherNet/IP communication protocols, the 1756SC-IF8U ensures seamless integration with various industrial networks, enhancing its versatility and compatibility.

    Featuring a compact yet robust design weighing approximately 0.45 kg, this module is easy to install and maintain. Its temperature resistance from -20°C to +60°C allows for deployment in a wide range of environmental conditions.

    For added convenience, the module includes support for HART communication, allowing for enhanced monitoring and diagnostics directly from the device. This feature streamlines maintenance and setup processes, contributing to increased productivity and operational efficiency.
