Model Type:Communication Bridge Module

Model Number:1756-CNBR

Manufacturer:Allen Bradley

Communication Protocol:ControlNet

Redundancy:Yes

Connectors:1 ControlNet BNC connector, 1 NAP RJ-45 8-pin with shield connector

Communication Rate:5 Mbps

Series😀

Enclosure Type:Open

RFI Suppression:Radiated: 10 V/M at 1 KHZ Sine-Wave 80% AM from 80-2000 MHz, Conducted: 10 VRMS at 1 KHZ Sine-Wave 80% AM from 150 KHZ – 80 MHz

Temperature Range:Operating: -40°C to +70°C, Storage: -55°C to +85°C

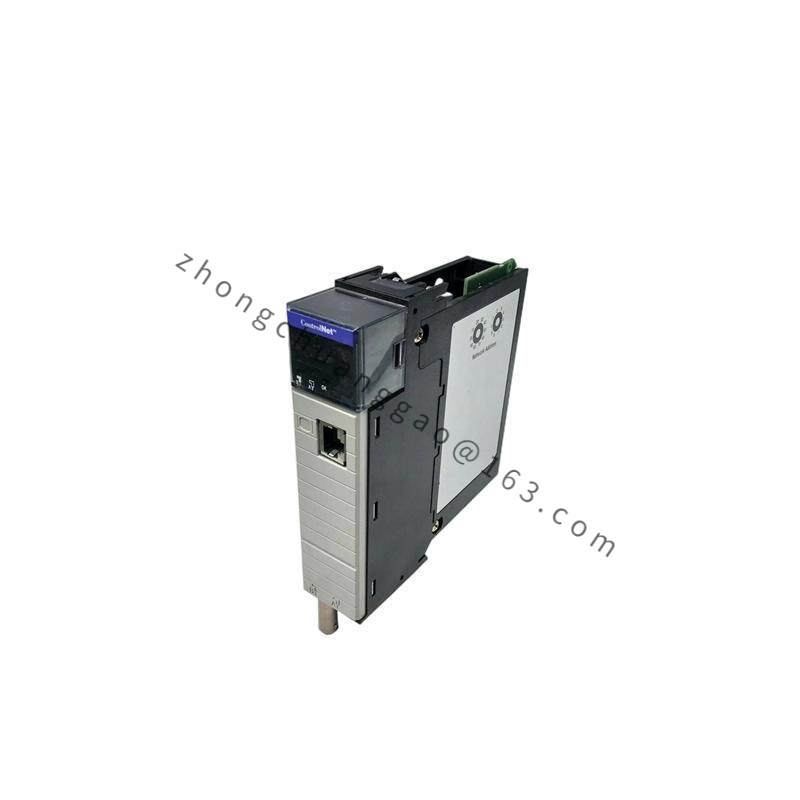

    The Allen Bradley 1756-CNBR Redundant Bridge Module is designed for industrial automation, offering a reliable solution for integrating ControlLogix systems with ControlNet networks. This module ensures that data transfer remains uninterrupted even under unexpected network disruptions, thanks to its redundant configuration.

    Featuring a robust BNC connector and an NAP RJ-45 8-pin with shield connector, this module supports secure and stable connections. The 5 Mbps communication rate guarantees efficient data transmission speeds, essential for real-time control applications.

    Crafted with precision and durability in mind, the 1756-CNBR is compatible with various ControlLogix series, enhancing the flexibility of industrial network setups. Its compatibility with both BNC and NAP RJ-45 connectors makes it adaptable to different installation scenarios.

    This module is not just about functionality; it’s about reliability. It’s designed to withstand harsh industrial conditions, ensuring continuous operation in even the most challenging environments. With its advanced redundancy feature, you can trust that your ControlNet network will remain operational without any downtime.

    For detailed technical specifications or further assistance with integration, our team of experts is here to help. Whether you’re upgrading your existing infrastructure or planning a new installation, the Allen Bradley 1756-CNBR Redundant Bridge Module is a key component to consider for your industrial automation needs.
