CPU Type:SLC 5/01

Memory Capacity:Up to 1 KB, Battery Backed-RAM

I/O Ports:960

Analog Inputs/Outputs:480

Enclosure Type:Open Type

Display:Status LEDs

Network Interfaces:RS-232, RS-485, Ethernet

Mounting:Chassis

Operating Temperature:0 – 60 DEG C

Power Consumption:1 MA at 5 VDC

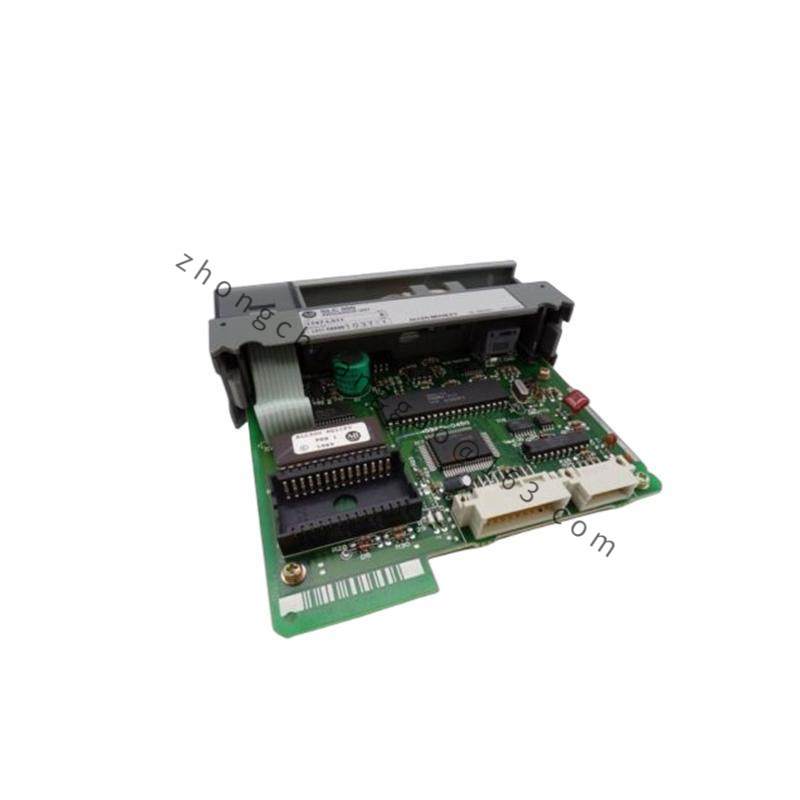

    The Allen Bradley 1747-L511 CPU Module is a cornerstone of Allen-Bradley‘s renowned SLC 500 family, tailored for seamless integration into complex industrial automation systems. This CPU module boasts a robust 10 MIPS processor speed, capable of handling a wide array of control tasks with precision and efficiency.

    Equipped with up to 1 KB of battery-backed RAM, the 1747-L511 ensures critical data retention during power outages, safeguarding against loss of vital information. Its extensive I/O capacity, supported by 480 analog inputs and outputs, facilitates a versatile range of control and monitoring functions.

    Featuring an advanced interface compatible with EtherNet, the module supports seamless communication within industrial networks, enhancing system interoperability and data exchange. Its chassis mounting design ensures stable installation and easy integration into existing infrastructure.

    With a power supply of 5 VDC, delivering 1 mA to the backplane, the CPU module operates efficiently and reliably across diverse industrial settings. Its quick response times—0.9 ms per Kword, 0.37 µsec per bit, and 0.255 ms for I/O scans—ensure swift processing and reduced cycle times, boosting overall productivity.

    Comprehensive and user-friendly, the Allen Bradley 1747-L511 CPU Module is designed to optimize the performance of industrial automation systems, offering unparalleled reliability, speed, and connectivity. It is an indispensable tool for engineers seeking to streamline operations and enhance control strategies in manufacturing environments.
