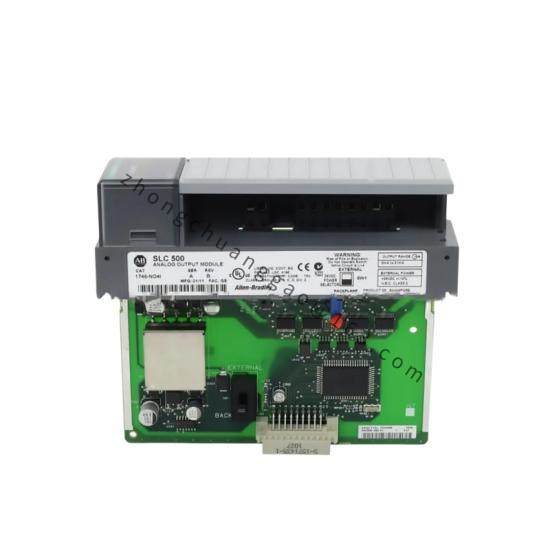

Allen-Bradley 1746NO4I – 4-Channel Analog Output Module for SLC 500
The Allen-Bradley 1746NO4I is a high-performance analog output module designed for seamless integration into the Allen-Bradley SLC 500 programmable logic controller series. This compact, versatile module supports four independent channels, each capable of delivering precise control signals to actuators and sensors in industrial automation systems.
Detailed content
Module Type:Analog Output Module
Series:SLC 500
Output Channels:4
Current Range:0 to +20 mA
Backplane Current:(5 Volts) 55 milliamps, (24 Volts DC) 195 milliamps
Voltage Compatibility:5 V, 24 V DC
Load Compatibility:Up to 500 ohms
Operating Temperature:-40°C to +70°C
Environmental Compliance:CE Certified
The Allen-Bradley 1746-NO4I is engineered for precision and reliability in demanding industrial settings, offering four independent channels for flexible control over various processes.
Each channel supports a current output range from 0 to +20 mA, making it suitable for a wide array of applications, from temperature control to motor speed adjustments.
With a robust design that utilizes industrial-grade, corrosion-resistant metals and plastics, this module ensures longevity and durability in harsh environments.
The 1746-NO4I is compatible with Allen-Bradley‘s SLC 500 series PLCs, facilitating seamless integration into existing automation systems.
Equipped with an IP20 environmental rating, it is protected against dust and light splashes, ensuring reliable operation in various industrial conditions.
The inclusion of an RS-485 communication interface allows for efficient data transfer and connectivity with other devices in the network.
